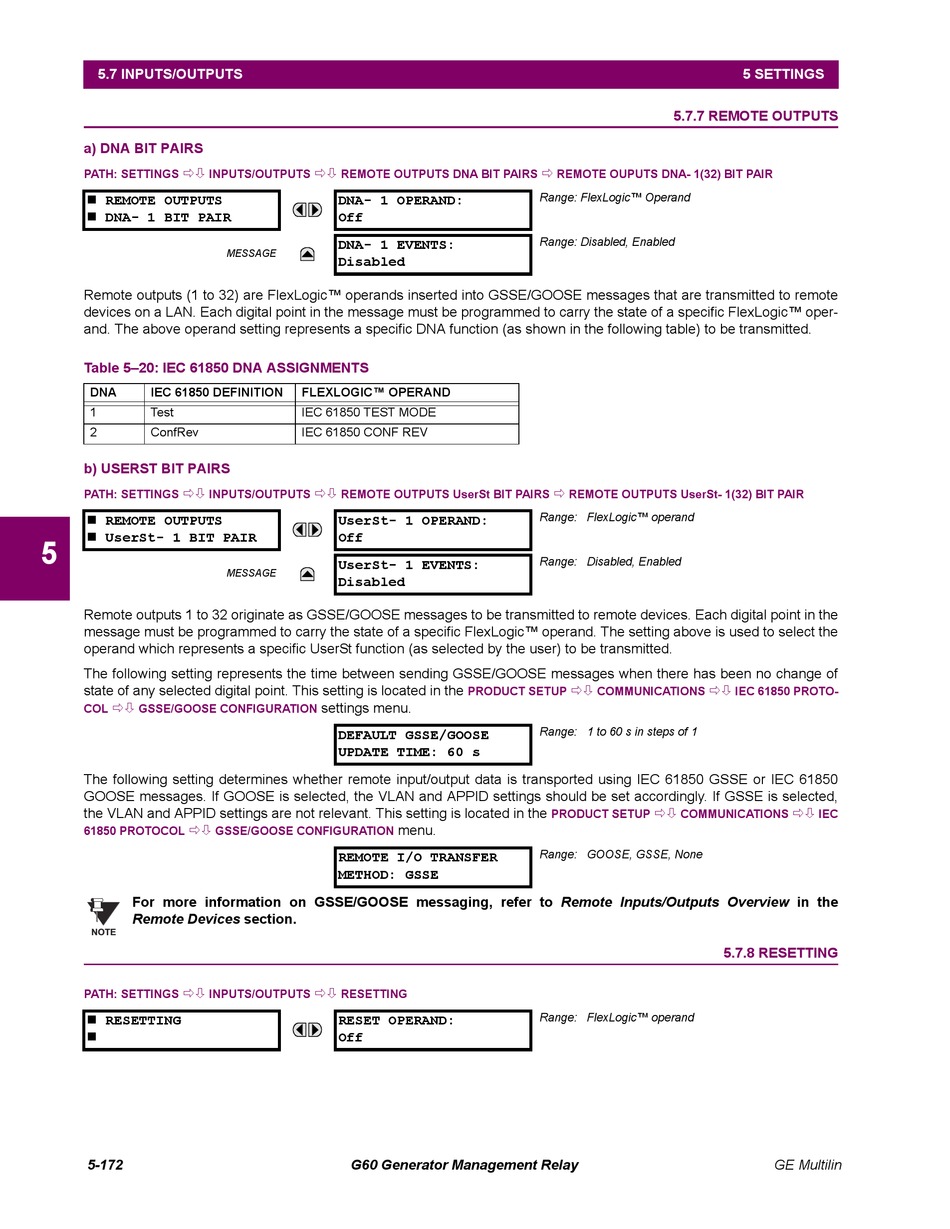

5.7 INPUTS/OUTPUTS
a) DNA BIT PAIRS
!"
PATH: SETTINGS
INPUTS/OUTPUTS

# REMOTE OUTPUTS

# DNA- 1 BIT PAIR
Remote outputs (1 to 32) are FlexLogic™ operands inserted into GSSE/GOOSE messages that are transmitted to remote
devices on a LAN. Each digital point in the message must be programmed to carry the state of a specific FlexLogic™ oper-
and. The above operand setting represents a specific DNA function (as shown in the following table) to be transmitted.
Table 5–20: IEC 61850 DNA ASSIGNMENTS
DNA
IEC 61850 DEFINITION
1
Test
2
ConfRev
b) USERST BIT PAIRS
!"
PATH: SETTINGS
INPUTS/OUTPUTS
# REMOTE OUTPUTS
# UserSt- 1 BIT PAIR
5
Remote outputs 1 to 32 originate as GSSE/GOOSE messages to be transmitted to remote devices. Each digital point in the
message must be programmed to carry the state of a specific FlexLogic™ operand. The setting above is used to select the
operand which represents a specific UserSt function (as selected by the user) to be transmitted.
The following setting represents the time between sending GSSE/GOOSE messages when there has been no change of
state of any selected digital point. This setting is located in the
!"
COL
GSSE/GOOSE CONFIGURATION
The following setting determines whether remote input/output data is transported using IEC 61850 GSSE or IEC 61850
GOOSE messages. If GOOSE is selected, the VLAN and APPID settings should be set accordingly. If GSSE is selected,
the VLAN and APPID settings are not relevant. This setting is located in the
!"
61850 PROTOCOL
GSSE/GOOSE CONFIGURATION
For more information on GSSE/GOOSE messaging, refer to Remote Inputs/Outputs Overview in the
Remote Devices section.
NOTE
!"
PATH: SETTINGS
INPUTS/OUTPUTS

# RESETTING

#
5-172
!"
REMOTE OUTPUTS DNA BIT PAIRS
DNA- 1 OPERAND:
Off
DNA- 1 EVENTS:
MESSAGE
Disabled
FLEXLOGIC™ OPERAND
IEC 61850 TEST MODE
IEC 61850 CONF REV
!"
REMOTE OUTPUTS UserSt BIT PAIRS
UserSt- 1 OPERAND:
Off
UserSt- 1 EVENTS:
MESSAGE
Disabled
settings menu.
DEFAULT GSSE/GOOSE
UPDATE TIME: 60 s
menu.
REMOTE I/O TRANSFER
METHOD: GSSE
!"
RESETTING
RESET OPERAND:
Off
G60 Generator Management Relay
!
REMOTE OUPUTS DNA- 1(32) BIT PAIR
Range: FlexLogic™ Operand
Range: Disabled, Enabled
!
REMOTE OUTPUTS UserSt- 1(32) BIT PAIR
Range: FlexLogic™ operand
Range: Disabled, Enabled
!"
PRODUCT SETUP
COMMUNICATIONS
Range: 1 to 60 s in steps of 1
PRODUCT SETUP
Range: GOOSE, GSSE, None
Range: FlexLogic™ operand
5 SETTINGS
5.7.7 REMOTE OUTPUTS
!"
IEC 61850 PROTO-
!"
!"
COMMUNICATIONS
IEC
5.7.8 RESETTING
GE Multilin
