Modules

MC+1-3

7.4 MC+1-3
MC+1-3

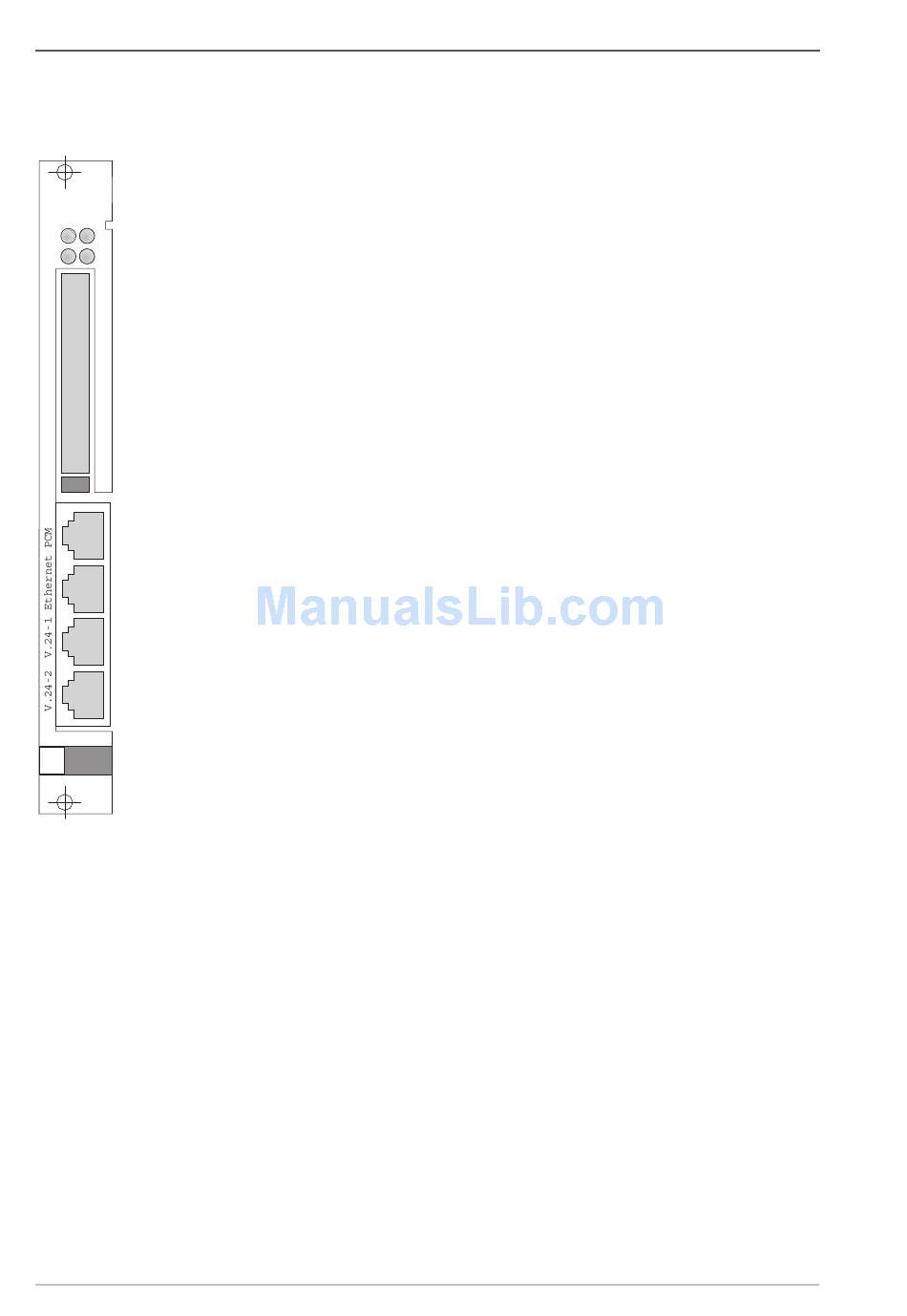

MC+1-3: Front view
Field of Application
The MC+1-3 module is the central control module of the OpenCom 510. It can be
installed in slot 0 only (at the left end in the 1-12 frame; see Slots starting on
page 27).
In addition to the control function, the MC+1-3 central control module provides a
number of interfaces. These are standard external Ethernet (1x) and V.24 (2x) inter-
faces as well as internal PCMV, PCMH and CompactFlash slot interfaces.
