PBX Networking
PBX 1
Public
L1 slave
network
L2 slave
L3 master
L1 master
L2 master

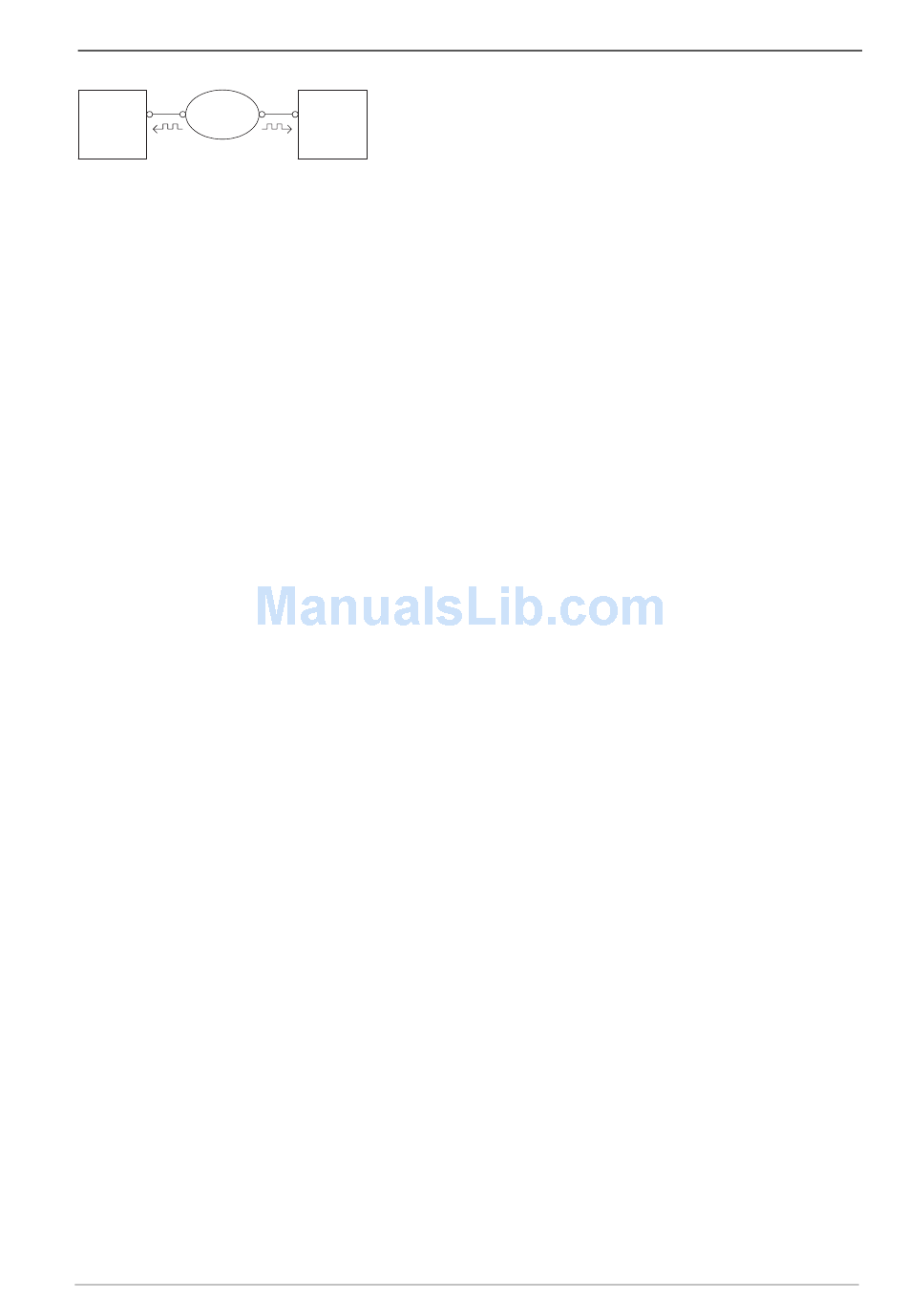

Point-to-point connection via a public network

13.2.4 Connection via Q.SIG.IP

If you are operating a fast and continuous internet connection at two or more
locations, you can establish the TK system networking via internet connection as
well. The OpenCom 510 uses the Q.SIG protocol, for use with ISDN point-to-point
connections and transports the protocol and voice data via IP connections.
The number of simultaneous conversations possible will depend on the capacity
of the internet connection and the compression method used. A multiple S
point-to-point connection is simulated for each Q.SIG-IP bundle. This means that 5
virtual D channels and up to 120 voice channels are available. Both Media Gateway
Card channels and the Media Gateway software function can be used for Q.SIG-IP.
Q.SIG-IP connection data are subject to codec compression (please refer to Voice
over IP (VoIP) chapter regarding Fundamentals starting on page 112). Q.SIG-IP also
transfers the voice data directly from terminal to terminal via the RTP protocol. In
certain cases, for example, when an incoming external call is placed via multiple TK
systems, one or more RTP proxies may be used to forward the connection.
Currently, there are no standards for the necessary extensions to the Q.SIG pro-
tocol. This means that you can only use Q.SIG-IP between OpenCom 510 systems
(exception: OpenCom 1000).
Networking two OpenCom 510 systems using Q.SIG-IP requires 2 licenses – one
license per system. The number of possible voice connections is not restricted by
the license.
Go to the PBX Configuration: Trunks: Bundle page in the Configurator to set up
a Q.SIG-IP connection. Create a new bundle and select the Access type "System
Access". Select "Q.SIG-IP" under Protocol. Configure the IP address of the other
system, the port numbers to be used, the number of possible voice connections
and select a VoIP profile for the codec selection. Please refer to the relevant help
topics in the Online Help for the OpenCom 510 as well.
PBX 2
L1 slave
L2 slave
L3 slave
Types of Point-to-Point Connections
2M
145
