PBX Networking
■
Use the RJ45 jacks on one of the external S
between two OpenCom 510s.
PBX 1, S ext
0
1 2 3 4 5 6 7 8
8 7 6 5 4 3 2 1
PBX 2, S ext
0
(RJ-45 socket)

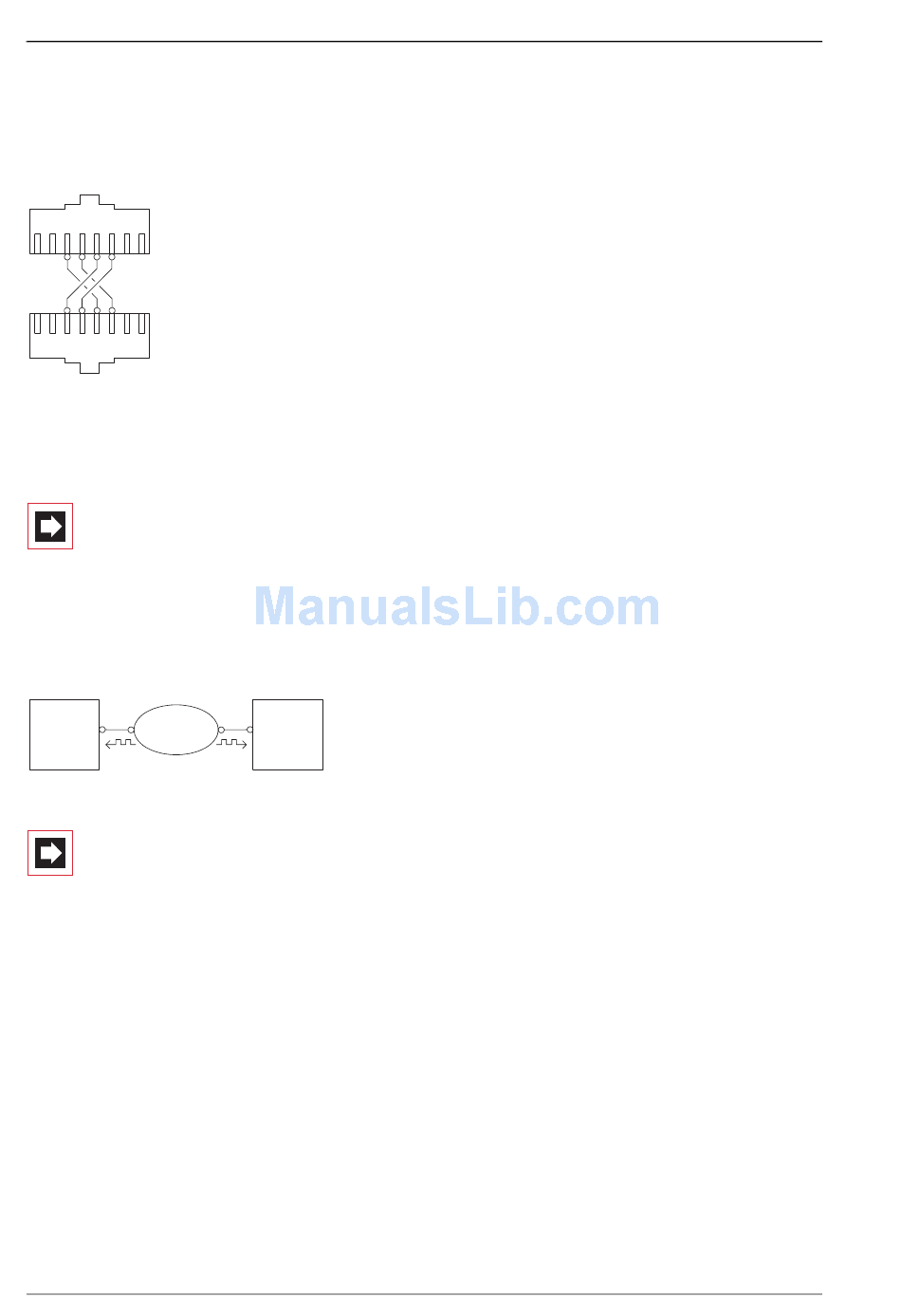

Wiring of a direct connection

13.2.2 Connection via an Active Transmission System

For distances exceeding the range of a direct connection, an active transmission
system can increase the range to up to 50 km. Normally the L1 master is the trans-
mission system for the two connected PBXs. For the protocol layers L2 and L3, one
PBX is normally the protocol master and the other PBX is the protocol slave.
PBX 1
Transmission
L1 slave
System
L2 master
L3 master
L1 master
Connection by an active transmission system

13.2.3 Connection via the Public Network

Point-to-point connections via the public network of a network operator can be
used for bridging distances beyond 50 km. Due to the long distance involved, for
technical reasons it is not possible to synchronise the L2 protocol. Consequently,
the public network is normally the protocol master for protocol layers L1 and L2.
One PBX is therefore the L3 master and the other PBX the L3 slave.
144
PBX 2
L1 slave
L2 slave
L3 slave
Note: The active transmission system itself gets its L1 clock
either from the network operator or from a clock generator
connected by wire.
Types of Point-to-Point Connections
ports for an S connection
0 0
