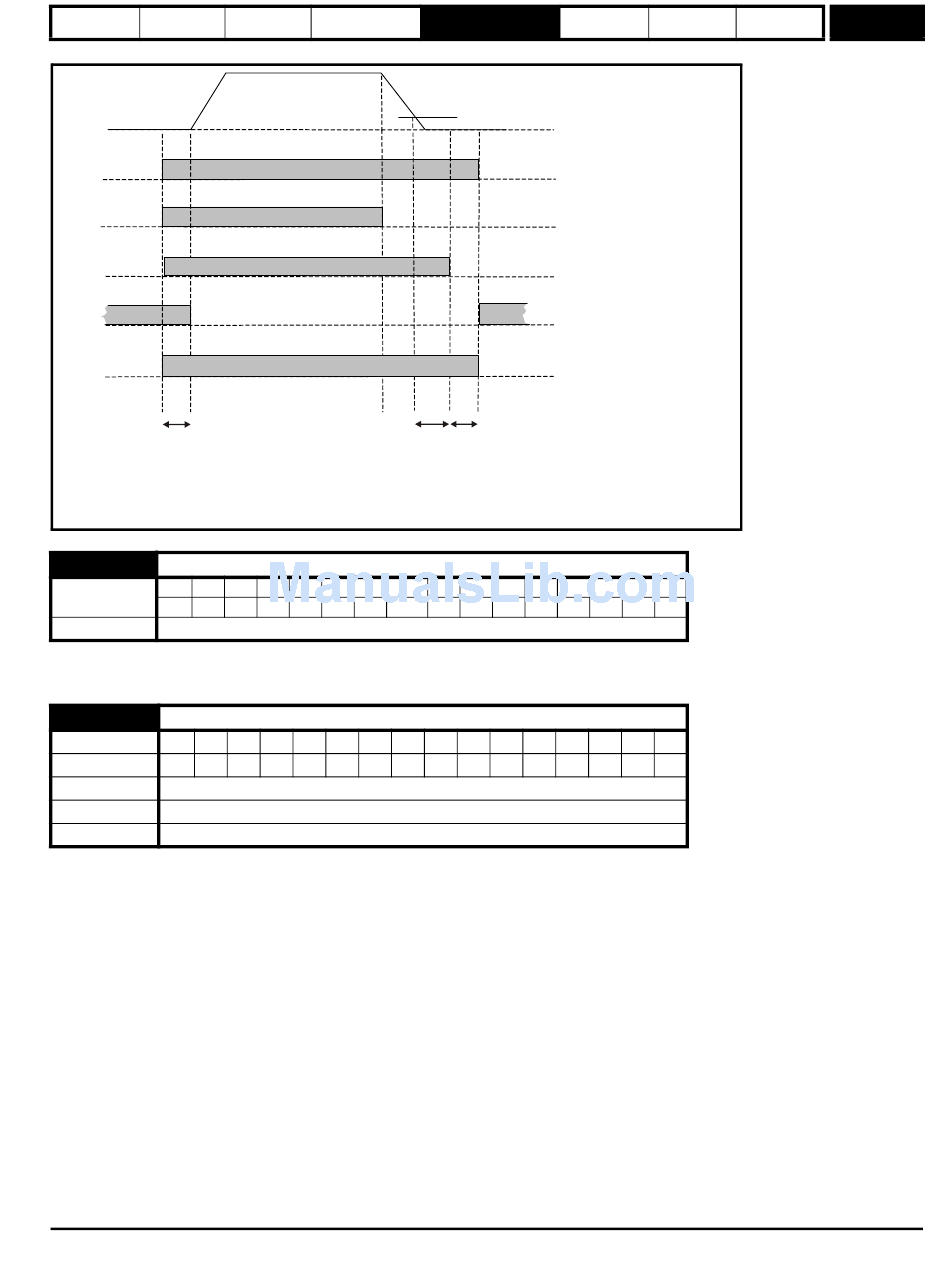

Figure 5-14 Brake sequence
1
Pr 12.47
1. Post-brake release delay
2. Wait for speed threshold
3. Wait for brake apply speed delay
4. Brake apply delay
12.40 Brake release
Bit SP
Coding
1
Update rate Background read
This parameter should be used as a source for a digital output to control an electro-mechanical brake. This parameter is one to release the brake and
zero to apply the brake. Digital I/O can be automatically configured to use this parameter as a source (see Pr 12.41).
12.41 Brake controller enable
Coding Bit SP
Range 0 to 3
Default 0
Update rate Read on drive reset
0 = dis
The brake controller is disabled and no other drive parameters are affected by the brake controller. When this parameter is changed from a non-zero
value to zero the following parameters are set to zero: Pr 2.03, Pr 6.08, Pr 13.04, Pr 13.10 and Pr 12.49 = 1.
1 = rel
The brake controller is enabled with I/O set up to control the brake via the relay output T41/42. Drive ok is re-routed to digital I/O 2 (T25).
2 = d IO
The brake controller is enabled with I/O set up to control the brake via digital I/O 2 (T25).
3 = User
The brake controller is enabled, but no parameters are set to select the brake output.
The following tables show the automatic parameter changes that occur to set up digital I/O2 (T25) and the relay output (T41/42) after drive reset when
Pr 12.41 has been changed. The changes are done in two stages: the first stage restores the I/O used as defined by the initial setting of Pr 12.41 and
the second stage sets up the I/O as defined by the new setting of Pr 12.41.
