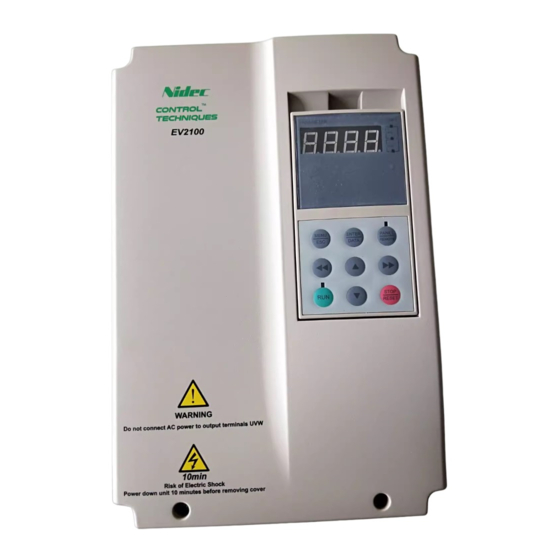

- Page 1 EV2100 Series Variable Speed Drive User Manual Document version: V1.2 Archive date: 2012-03 Part Number: 31012390...
- Page 2 EV2100 Series Variable Speed Drive User Manual Version V1.2 Revision date March 5, 2012 31012390 All rights reserved. The contents in this document are subject to change without notice. Address: 3rd Floor, Sangda Science & Technology Building, No.1 KeJI Road., Science &...
- Page 3 Contents Preface ..............1 4.1.1 The Drive’s Control Command Channel 1.1 Unpacking Inspection ........ 1 ..............36 1.2 Model code explanation ......1 4.1.2 Frequency Setting Channel ....36 4.1.3 Operating Status ....... 36 Chapter 1 Safety Information ........2 4.1.4 Operating Modes ......
- Page 4 Appendix Ⅰ Parameters........91 Appendix Ⅱ Parameters of Recommended Accessories ............110 1. AC/DC Reactor ........110 2. 380V Series EMI Filter ......113 3. Manufacturer Information ......114 Appendix Ⅲ Communication Protocol ....115 1 Networking Construction ......115 2 Interfaces ..........
- Page 5 Preface Preface Thank you for using EV2100 series Variable Speed Drive (hereafter referred to as Drive) made by 1.2 Model code explanation Emerson. EV2100 - 4 T 0075 EV2100 - 4 T 0075 The Drive satisfies the high performance Drive series Drive series 变频器系列...
- Page 6 Chapter 1 Safety Chapter 1 Safety Information This chapter is for the safety related information of ·Only trained professionals can change the • the Drive. components, it is prohibited to leave wires or metal parts inside the drive so as to 1.1 Safety avoid the risk of fire.
- Page 7 Chapter 1 Safety time or if it has been stored for a long time. This is 1.3.1 About Motor and Load to reduce the risk of the Drive from being damaged Compared to the power frequency operation by the poor insulation of the motor. Wiring diagram The drive is a voltage type variable speed drive.
- Page 8 Chapter 1 Safety Using outside the range of rated voltage Derating due to Altitude The drive is not suitable to be used out of the Derating must be considered when the drive is specified range of operation voltage. If needed, installed at high altitude, greater than 1000m.
- Page 9 Chapter 2 Product Introduction Chapter 2 Product Introduction This chapter introduces the specification, model and structure of the drive. 2.1 Specifications Table 2-1 General specifications Item Description Rated voltage & frequency Three-phase,380V~440V; 50Hz/60Hz Input Permissible fluctuation range Voltage:320V~460V;Voltage unbalance rate:<3%; Frequency:±5% Rated voltage 380V Frequency...
- Page 10 Chapter 2 Product Introduction Item Description 2 analog outputs of 0/4~20mA and 0/2~10V (selectable). Be able to output signals Analog output terminals like reference frequency and output frequency. Be able to display about 20 kinds of parameters such as frequency setting, output LED display frequency, output voltage and current, etc.
