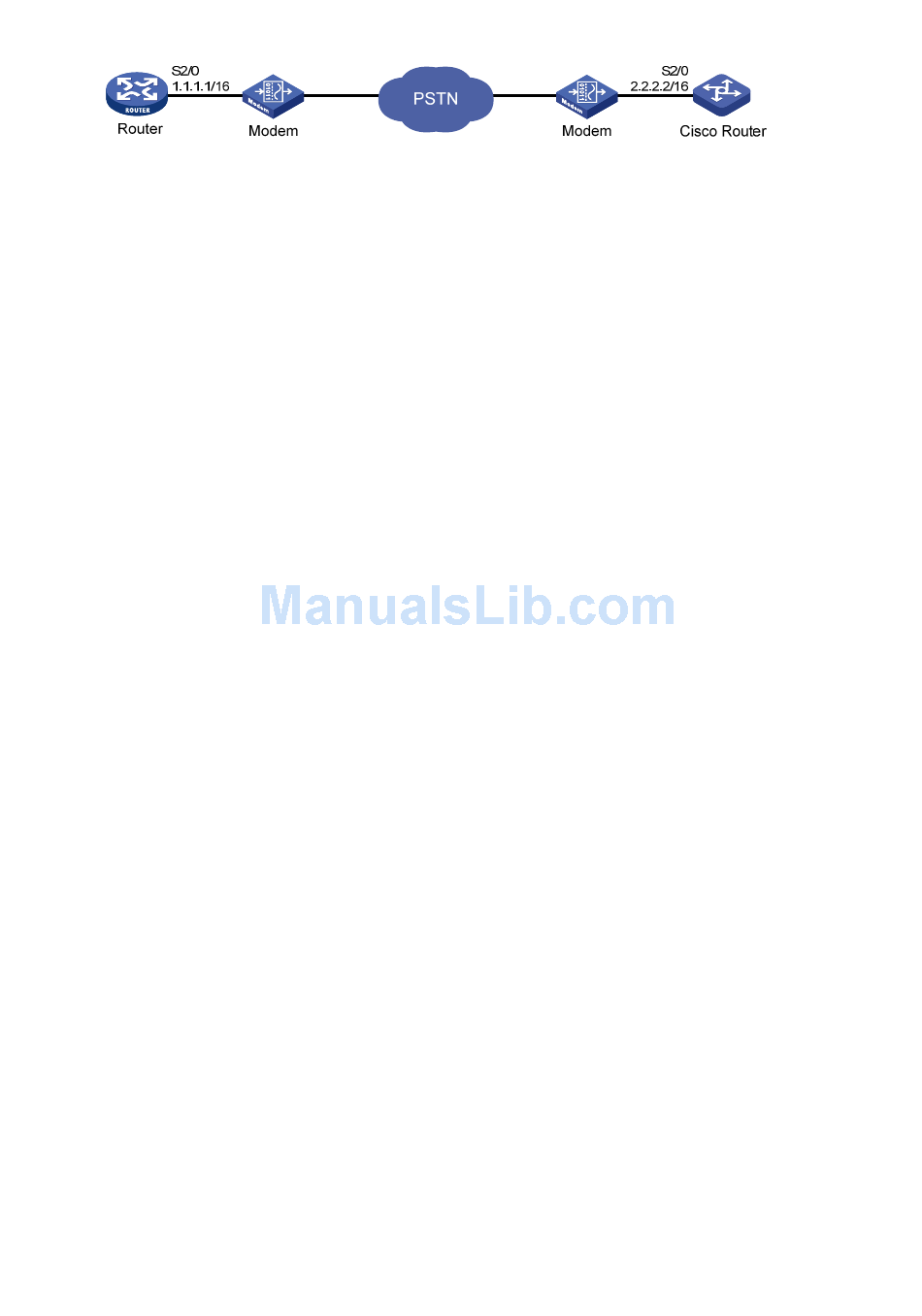

Figure 62 Network diagram
Configuration procedure
Configure Router:
1.
# Create dialer access group 1 and configure it to permit all IP packets.
<Router> system-view
[Router] dialer-rule 1 ip permit
# Configure interface Serial 2/0 to operate in asynchronous mode and then configure it to
operate in protocol mode.
[Router] interface serial 2/0
[Router-Serial2/0] physical-mode async
[Router-Serial2/0] async mode protocol
# Configure the link layer protocol of interface Serial 2/0 as PPP.
[Router-Serial2/0] link-protocol ppp
# Configure an IP address for interface Serial 2/0.
[Router-Serial2/0] ip address 1.1.1.1 255.255.0.0
# Enable C-DCC on interface Serial 2/0.
[Router-Serial2/0] dialer enable-circular
# Assign interface Serial 2/0 to dialer access group 1.
[Router-Serial2/0] dialer-group 1
# Set the link holddown timer to 5 seconds.
[Router-Serial2/0] dialer timer enable 5
# Configure the dial number for placing calls to a single remote end as 666666.
[Router-Serial2/0] dialer number 666666
[Router-Serial2/0] quit
# Enables both modem call-in and modem call-out on user-interface TTY 1.
[Router] user-interface tty 1
[Router-ui-tty1] modem both
For information about DCC commands, see HPE FlexNetwork MSR Router Series Comware 5
Layer 2—WAN Command Reference.
Configure the Cisco router:
2.
For more information, see Cisco documentation.

Troubleshooting

Symptom
Modem is in abnormal status (for example, the dial tone or busy tone keeps humming).
Solution
•
Use the shutdown command and undo shutdown command on the device physical interface
connected to the modem to check whether the modem has been restored to normal status.
•
If the modem is still in abnormal status, repower the modem.
