HPE FlexNetwork MSR Series Comware 5 Layer 2 - Wan Access Configuration Manual page 62

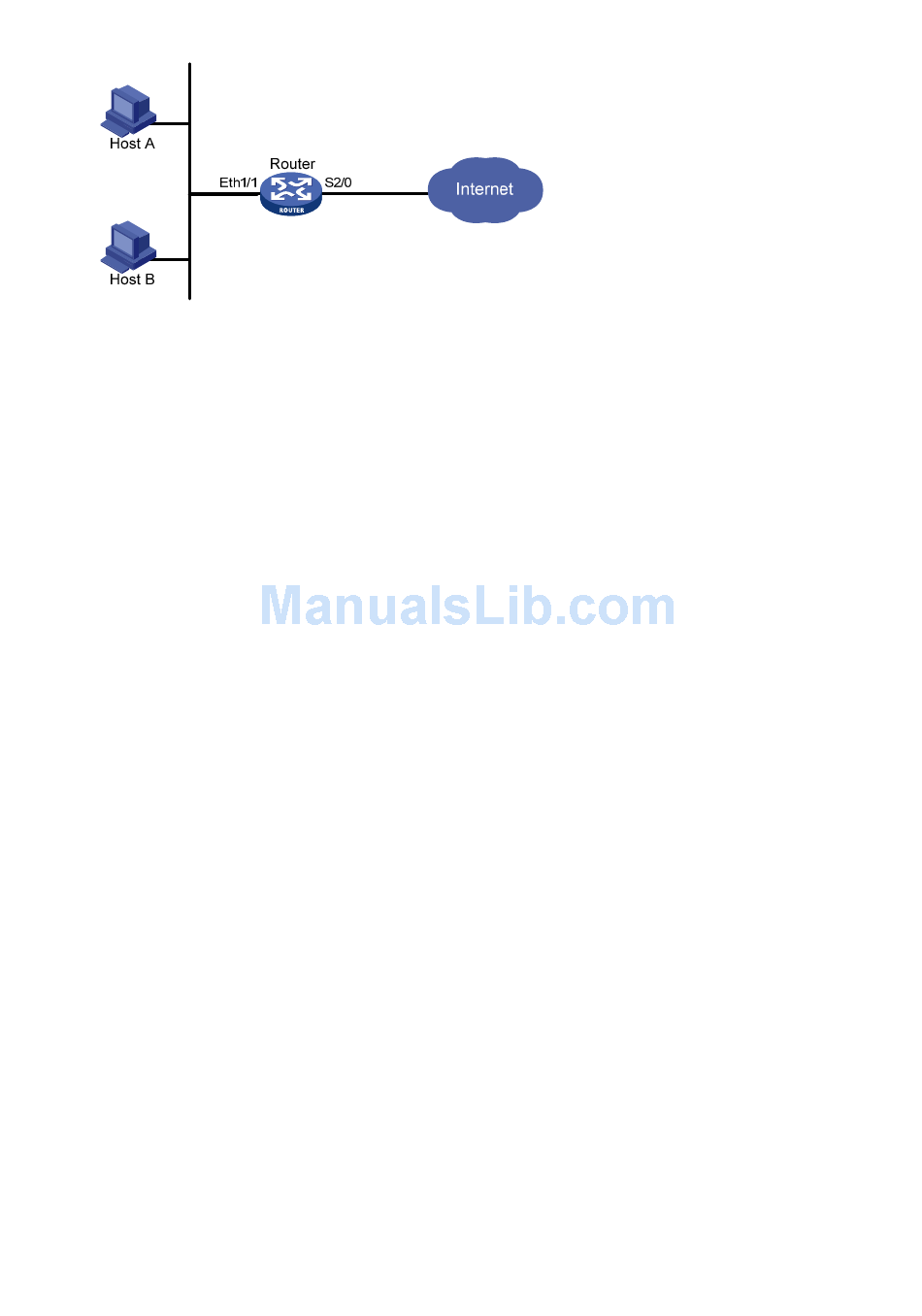

Figure 12 Network diagram
Configuration procedure
Configure CHAP authentication:
1.
# Add a PPPoE user.
<Router> system-view
[Router] local-user user1
[Router-luser-user1] password simple pass1
[Router-luser-user1] service-type ppp
[Router-luser-user1] quit
# Configure virtual-template 1 on the Router.
[Router] interface virtual-template 1
[Router-Virtual-Template1] ppp authentication-mode chap domain system
[Router-Virtual-Template1] ppp chap user user1
[Router-Virtual-Template1] remote address pool 1
[Router-Virtual-Template1] ip address 1.1.1.1 255.0.0.0
[Router-Virtual-Template1] quit
# Configure PPPoE server on the Router.
[Router] interface ethernet 1/1
[Router-Ethernet1/1] pppoe-server bind virtual-template 1
[Router-Ethernet1/1] quit
# Configure local authentication for the users in the default ISP domain system.
[Router] domain system
[Router-isp-system] authentication ppp local
# Add a local IP address pool that contains nine IP addresses.
[Router-isp-system] ip pool 1 1.1.1.2 1.1.1.10
Configure MS-CHAP authentication:
2.
# Add a PPPoE user.
<Router> system-view
[Router] local-user user1
[Router-luser-user1] password simple pass1
[Router-luser-user1] service-type ppp
[Router-luser-user1] quit
# Configure virtual-template 1 on the Router.
[Router] interface virtual-template 1
[Router-Virtual-Template1] ppp authentication-mode ms-chap domain system
[Router-Virtual-Template1] remote address pool 1
51
