Configuration example for transparent bridging over FR

Network requirements
As shown in
respectively, which are interconnected over FR. Configure the two routers to enable transparent
bridging over FR between the two LAN segments.

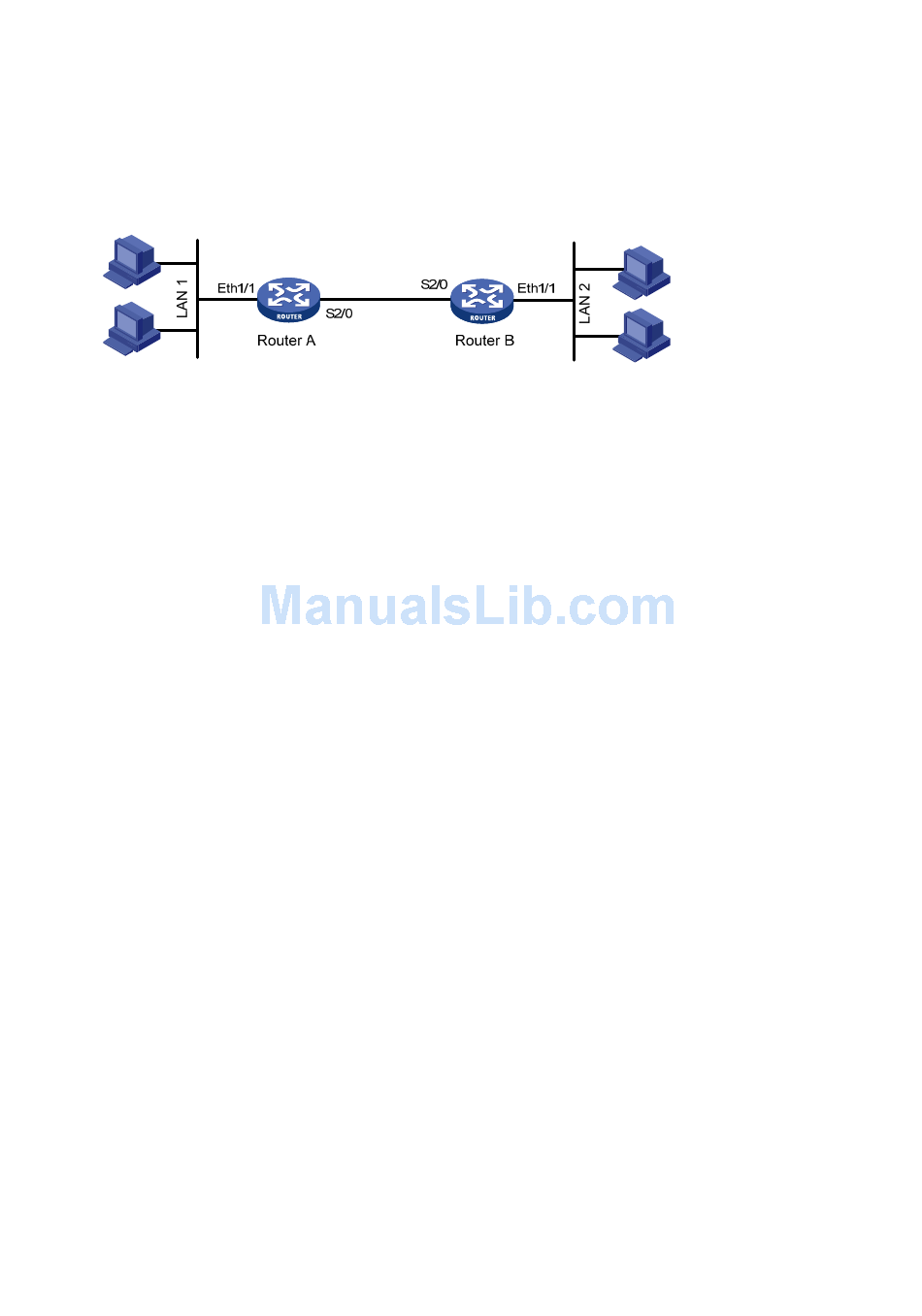

Figure 111 Network diagram
Configuration procedure
Configure Router A:
1.
<RouterA> system-view
[RouterA] bridge enable
[RouterA] bridge 1 enable
[RouterA] interface ethernet 1/1
[RouterA-Ethernet1/1] bridge-set 1
[RouterA-Ethernet1/1] quit
[RouterA] interface serial 2/0
[RouterA-Serial2/0] link-protocol fr
[RouterA-Serial2/0] fr interface-type dce
[RouterA-Serial2/0] fr dlci 50
[RouterA-Serial2/0] bridge-set 1
[RouterA-Serial2/0] fr map bridge 50 broadcast
Configure Router B:
2.
<RouterB> system-view
[RouterB] bridge enable
[RouterB] bridge 1 enable
[RouterB] interface ethernet 1/1
[RouterB-Ethernet1/1] bridge-set 1
[RouterB-Ethernet1/1] quit
[RouterB] interface serial 2/0
[RouterB-Serial2/0] link-protocol fr
[RouterB-Serial2/0] fr interface-type dte
[RouterB-Serial2/0] bridge-set 1
[RouterB-Serial2/0] fr map bridge 50 broadcast

Configuration example for transparent bridging over X.25

Network requirements
As shown in
B, respectively, which are interconnected over X.25. Configure the two routers to enable transparent
bridging over X.25 between the two LAN segments.
Figure 1 1 1, two LAN segments, LAN 1 and LAN 2, are attached to Router A and Router B,
Figure 1 12, two LAN segments, LAN 1 and LAN 2, are attached to Router A and Router
