Ppp Ip Address Negotiation Configuration Example - HPE FlexNetwork MSR Series Comware 5 Layer 2 - Wan Access Configuration Manual

Link layer protocol is PPP
LCP opened, IPCP opened
Output queue : (Urgent queuing : Size/Length/Discards)
Output queue : (Protocol queuing : Size/Length/Discards)
Output queue : (FIFO queuing : Size/Length/Discards)
Interface is V35
206 packets input,
206 packets output,
[RouterB-Serial2/0] ping 200.1.1.1
PING 200.1.1.1: 56
Reply from 200.1.1.1: bytes=56 Sequence=1 ttl=255 time=103 ms
Reply from 200.1.1.1: bytes=56 Sequence=2 ttl=255 time=1 ms
Reply from 200.1.1.1: bytes=56 Sequence=3 ttl=255 time=1 ms
Reply from 200.1.1.1: bytes=56 Sequence=4 ttl=255 time=1 ms
Reply from 200.1.1.1: bytes=56 Sequence=5 ttl=255 time=10 ms
--- 200.1.1.1 ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 1/23/103 ms

PPP IP address negotiation configuration example

Network requirements
As shown in
PPP negotiation.

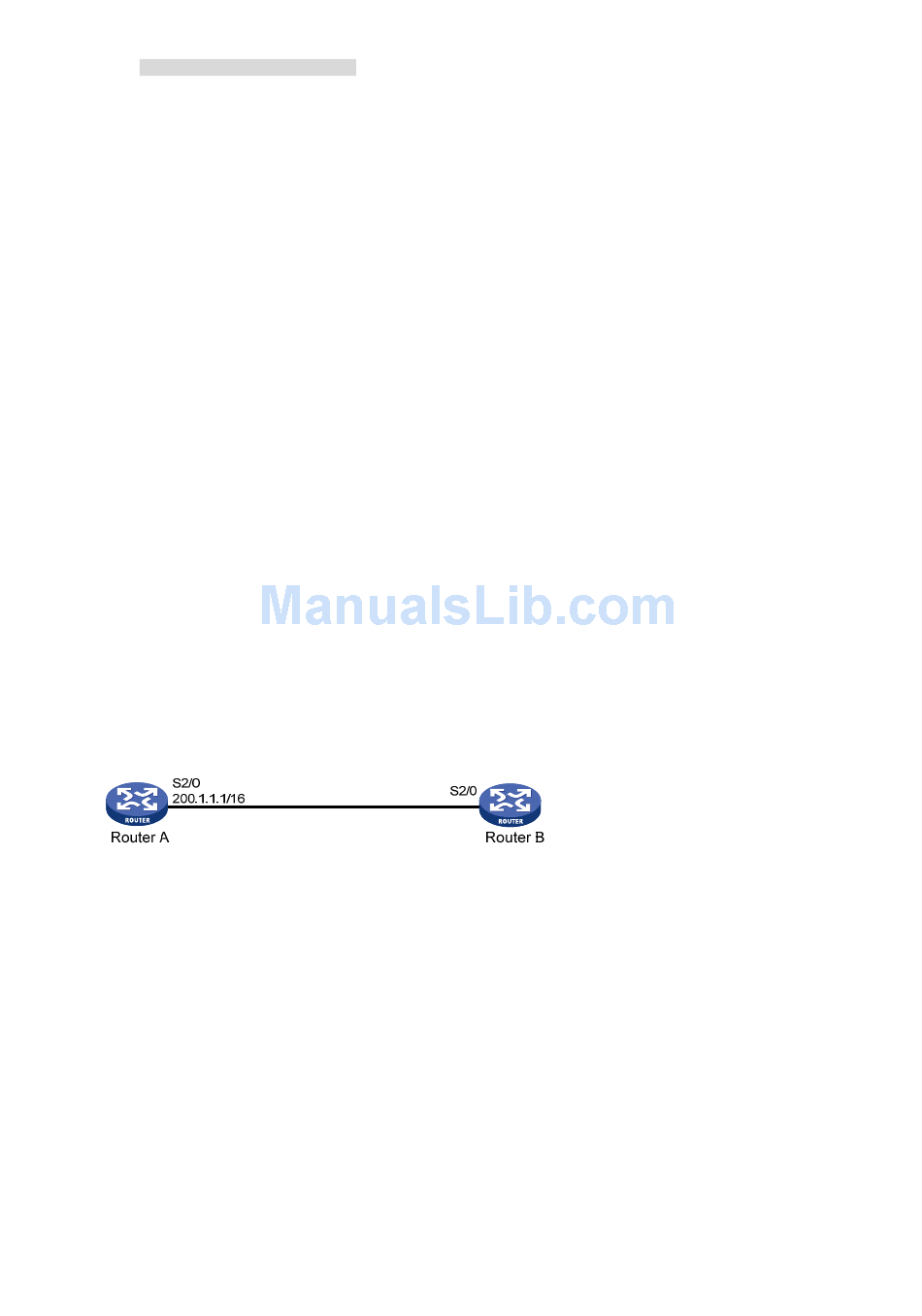

Figure 7 Network diagram
Configuration procedure
Configure Router A:
1.
# Configure a local IP address pool.
<RouterA> system-view
[RouterA] ip pool 1 200.1.1.10 200.1.1.20
# Configure the IP address of Serial 2/0.
[RouterA] interface serial 2/0
[RouterA-Serial2/0] ip address 200.1.1.1 16
# Allocate an IP address to the remote port (Serial 2/0 of Router B) from the IP address pool.
[RouterA-Serial2/0] remote address pool 1
Configure Router B:
2.
# Enable IP address negotiation on Serial 2/0.
<RouterB> system-view
[RouterB] interface serial 2/0
[RouterB-Serial2/0] ip address ppp-negotiate
2496 bytes
2492 bytes
data bytes, press CTRL_C to break
Figure 7, configure Router A to allocate an IP address for Serial 2/0 of Router B through
33
0/100/0
0/500/0
0/75/0
