Configuration procedure
Configure Router A:
1.
<RouterA> system-view
[RouterA] bridge enable
[RouterA] bridge 1 enable
[RouterA] interface ethernet 1/1
[RouterA-Ethernet1/1] bridge-set 1
[RouterA-Ethernet1/1] quit
[RouterA] interface serial 2/0
[RouterA-Serial2/0] link-protocol hdlc
[RouterA-Serial2/0] bridge-set 1
Configure Router B:
2.
<RouterB> system-view
[RouterB] bridge enable
[RouterB] bridge 1 enable
[RouterB] interface ethernet 1/1
[RouterB-Ethernet1/1] bridge-set 1
[RouterB-Ethernet1/1] quit
[RouterB] interface Serial 2/0
[RouterB-Serial2/0] link-protocol hdlc
[RouterB-Serial2/0] bridge-set 1
Configuration example for bridging with FR sub-interface
support
Network requirements
As shown in
Enable bridging on the FR subinterfaces Serial 2/0.1 and Serial 2/0.2 so traffic between Host A and
Host B can be bridged through bridge set 1 and traffic between Host C and Host D can be bridged
through bridge set 2.
In this example, Router B is a DCE device.

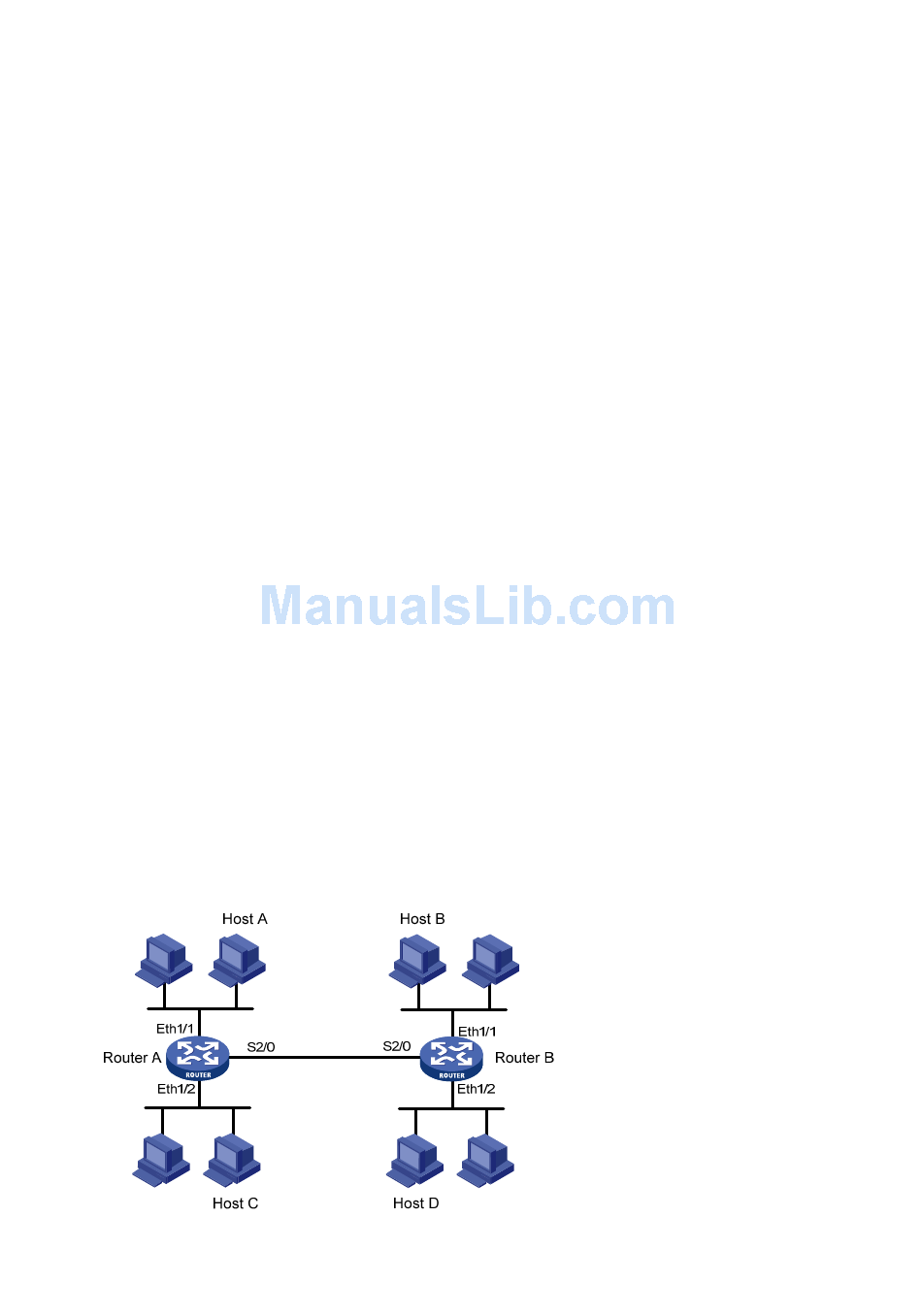

Figure 114 Network diagram
Figure 1 14, Router A and Router B are interconnected through an FR link.
