[RouterB-Serial2/0] fr interface-type dte
Method 2: On subinterfaces
Configure Router A:
3.
# Enable frame relay on interface Serial 2/0 and configure the interface to operate in DCE
mode.
<RouterA> system-view
[RouterA] interface serial 2/0
[RouterA-Serial2/0] link-protocol fr
[RouterA-Serial2/0] fr interface-type dce
[RouterA-Serial2/0] quit
# Configure the IP address and DLCI of the subinterface Serial 2/0.1.
[RouterA] interface serial 2/0.1 p2p
[RouterA-Serial2/0.1] ip address 202.38.163.251 255.255.255.0
[RouterA-Serial2/0.1] fr dlci 100
Configure Router B:
4.
# Enable frame relay on interface Serial 2/0 and configure the interface to operate in DTE
mode.
<RouterB> system-view
[RouterB] interface serial 2/0
[RouterB-Serial2/0] link-protocol fr
[RouterB-Serial2/0] quit
# Configure IP address of the subinterface and local virtual circuit.
[RouterB] interface serial 2/0.1 p2p
[RouterB-Serial2/0.1] ip address 202.38.163.252 255.255.255.0
[RouterB-Serial2/0.1] fr dlci 100

Connecting LANs through an Annex G DLCI

Network requirements
As shown in
use frame relay PVCs to transmit X.25 packets. Router A operates as the DCE and Router B
operates as the DTE.

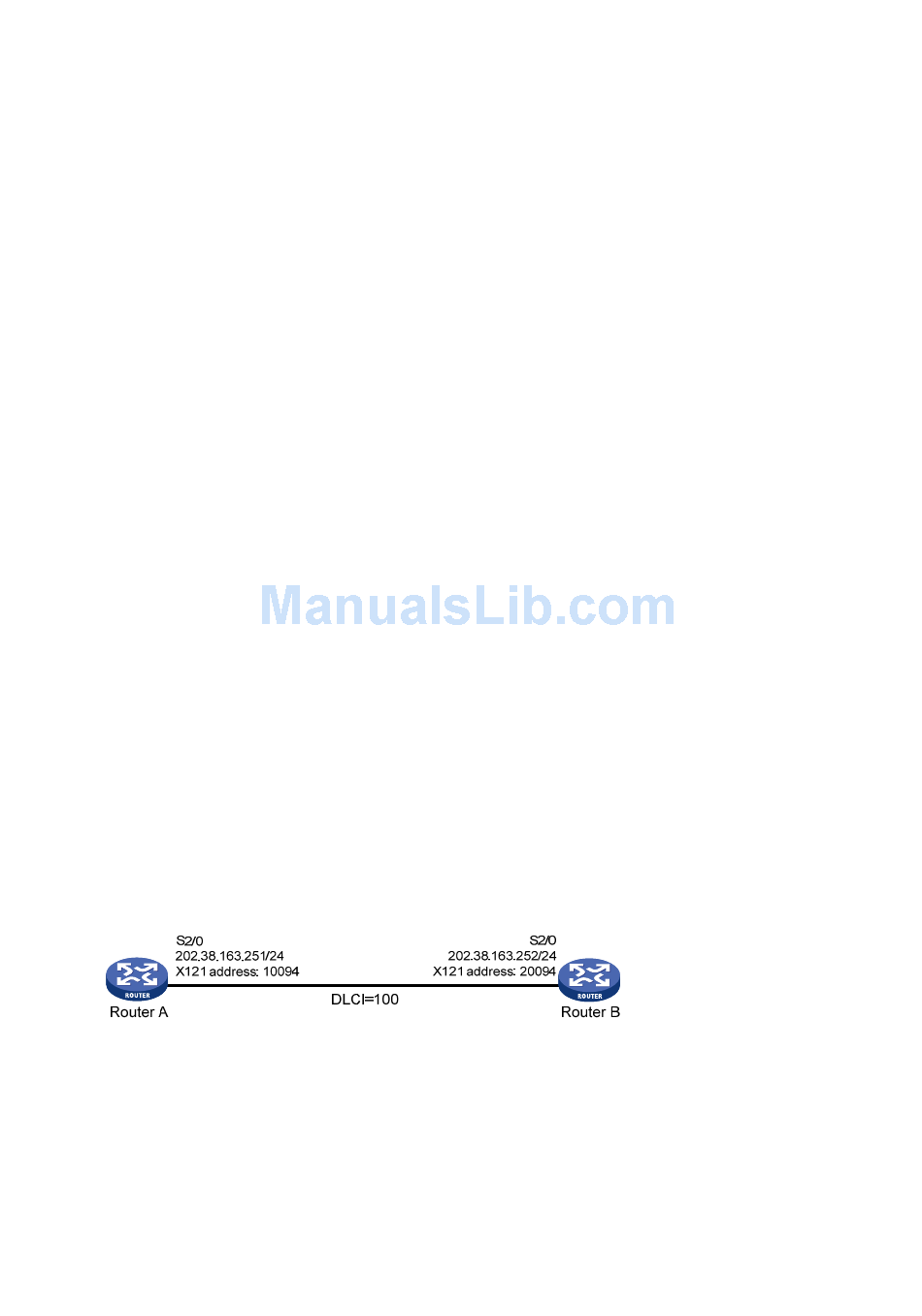

Figure 30 Network diagram
Configuration procedure
Configure Router A:
1.
# Create an X.25 template.
<RouterA> system-view
[RouterA] x25 template vofr
# Configure the local X.25 address.
[RouterA-x25-vofr] x25 x121-address 10094
# Configure the X.25 address mapping to the destination IP address.
Figure 30, Router A and Router B are connected with serial interfaces. It is desirable to
