DLSw configuration examples

Configuring LAN-to-LAN DLSw

Network requirements
As shown in
Router B to enable communication between an IBM host and an SNA host over the Internet.

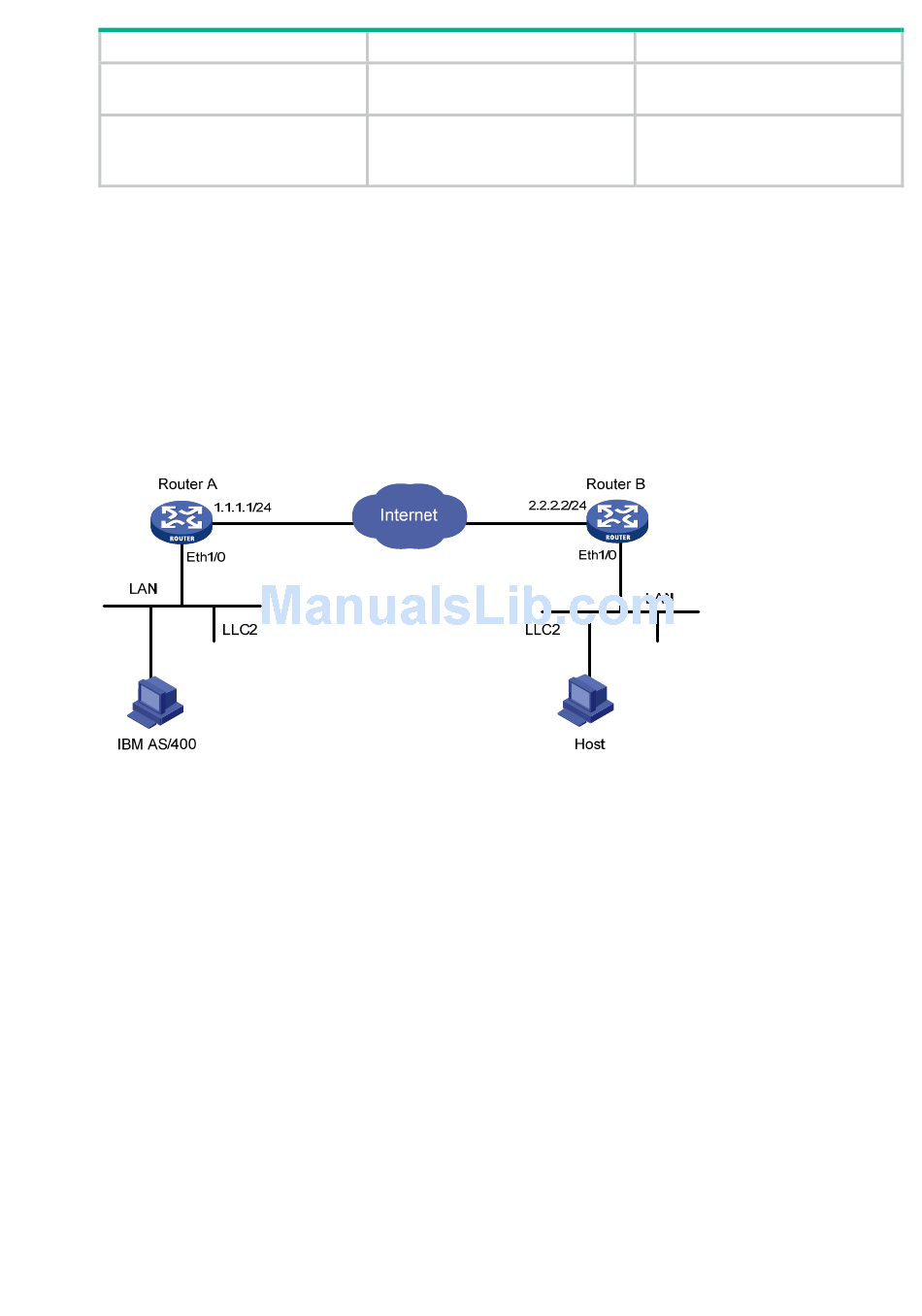

Figure 77 Network diagram
Configuration procedure
Configure Router A:
1.
# Configure interfaces on Router A to make sure that the local DLSw peer 1.1.1.1 and remote
peer 2.2.2.2 can reach each other. (Details not shown.)
# Configure DLSw on Router A.
<RouterA> system-view
[RouterA] bridge enable
[RouterA] bridge 5 enable
[RouterA] dlsw local 1.1.1.1
[RouterA] dlsw remote 2.2.2.2
[RouterA] dlsw bridge-set 5
[RouterA] interface ethernet 1/0
[RouterA-Ethernet1/0] bridge-set 5
Configure Router B:
2.
# Configure interfaces on Router B to make sure that the local DLSw peer 2.2.2.2 and remote
peer 1.1.1.1 can reach each other. (Details not shown.)
# Configure DLSw on Router B.
<RouterB> system-view
Command
reset dlsw ethernet-backup
circuit
reset dlsw ethernet-backup
map
Figure 77, DLSw works in a LAN-LAN environment. Configure DLSw on Router A and
236
Remarks
Available in user view.
Available in user view.
