Bridge Routing Configuration Example; Configuration Example For Bridging Over Dialer Interface - HPE FlexNetwork MSR Series Comware 5 Layer 2 - Wan Access Configuration Manual

However, you must configure the same DLCI on both the DCE and DTE sides by using the fr dlci
command. This is an alternative method of configuring bridging over FR. For more information about
frame relay, see "Configuring frame relay."

Bridge routing configuration example

Network requirements
As shown in
Configure bridge routing so traffic passing each interface in the bridge set can be routed.

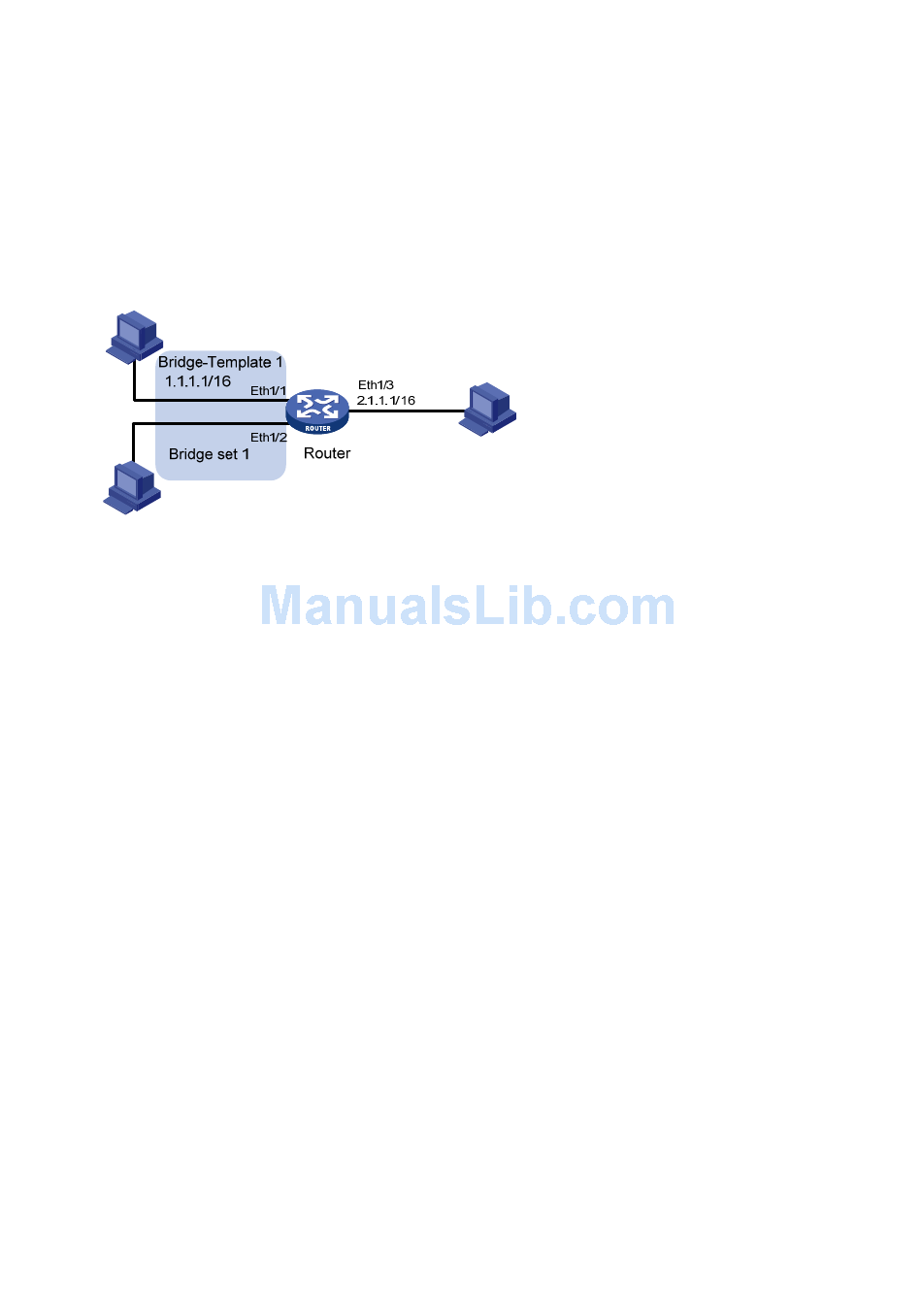

Figure 115 Network diagram
Configuration procedure
<Router> system-view
[Router] bridge enable
[Router] bridge routing-enable
[Router] bridge 1 enable
[Router] bridge 1 routing ip
[Router] interface ethernet 1/1
[Router-Ethernet1/1] bridge-set 1
[Router-Ethernet1/1] quit
[Router] interface ethernet 1/2
[Router-Ethernet1/2] bridge-set 1
[Router-Ethernet1/2] quit
[Router] interface bridge-template 1
[Router-Bridge-template1] ip address 1.1.1.1 255.255.0.0
[Router-Bridge-template1] quit
[Router] interface ethernet 1/3
[Router-Ethernet1/3] ip address 2.1.1.1 255.255.0.0

Configuration example for bridging over dialer interface

Network requirements
As shown in
Configure the two routers to enable transparent bridging over dialer interfaces between the two LAN
segments.
Figure 1 15, Ethernet 1/1 and Ethernet 1/2 belong to the same bridge set.
Figure 1 16, Router A and Router B are interconnected through an ISDN link.
