Displaying and maintaining frame relay
compression
Task
Display statistics about FRF.9
compression.
Display statistics about FRF.20 IP
header compression.

Frame relay compression configuration examples

Frame relay FRF.9 stac compression configuration example

Network requirements
As shown in
frame relay compression function (FRF.9) between them.

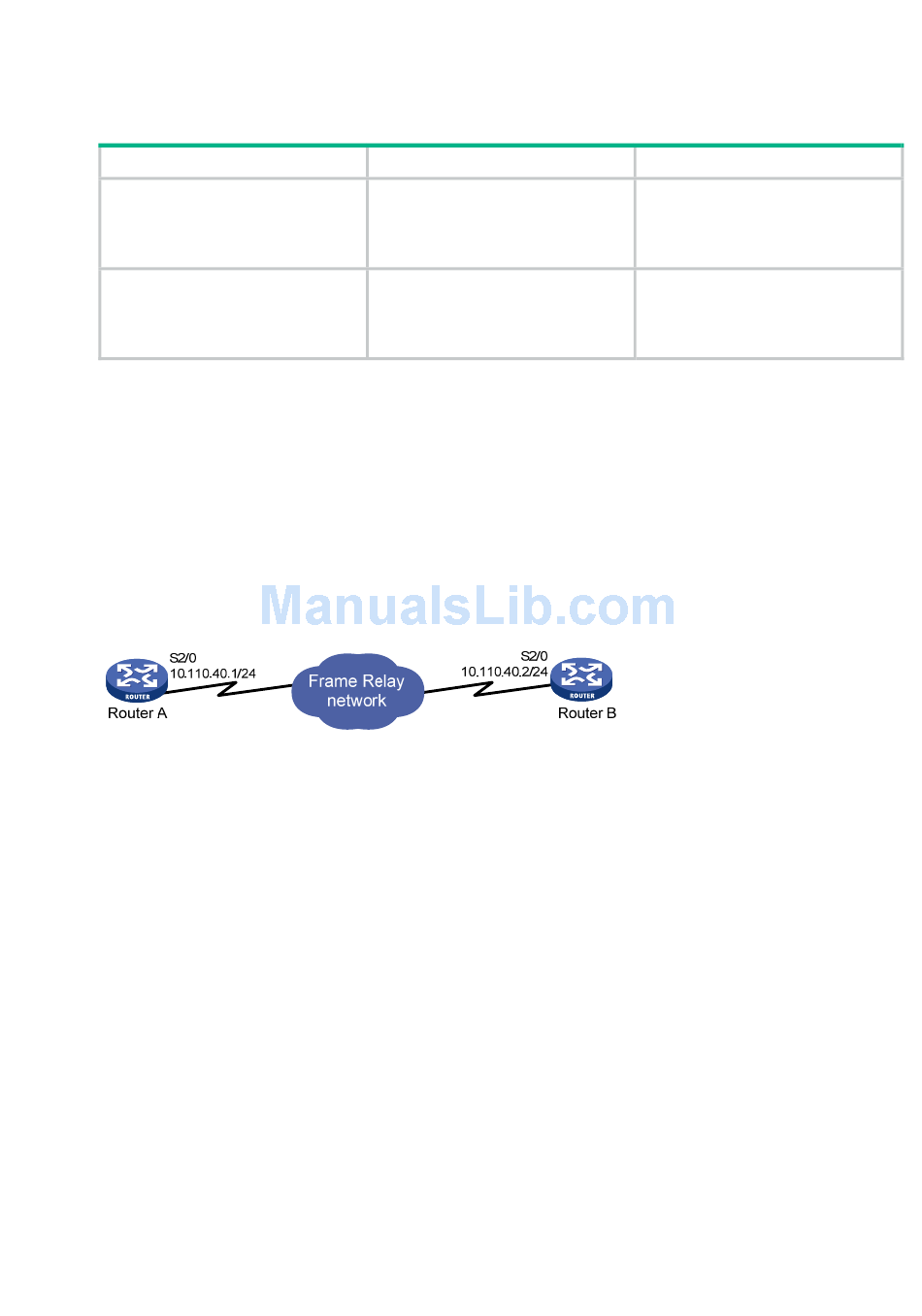

Figure 31 Network diagram
Configuration procedure
Configure Router A:
1.
# Enable frame relay on interface Serial 2/0.
<RouterA> system-view
[RouterA] interface serial 2/0
[RouterA-Serial2/0] link-protocol fr
# Configure an IP address for interface Serial 2/0.
[RouterA-Serial2/0] ip address 10.110.40.1 255.255.255.0
# Configure interface Serial 2/0 to operate in DTE mode.
[RouterA-Serial2/0] fr interface-type dte
# Create an IP address map entry and enable FRF.9 compression on interface Serial 2/0.
[RouterA-Serial2/0] fr map ip 10.110.40.2 100 compression frf9
Configure Router B:
2.
# Enable frame relay on interface Serial 2/0.
<RouterB> system-view
[RouterB] interface serial 2/0
[RouterB-Serial2/0] link-protocol fr
# Configure an IP address for interface Serial 2/0.
[RouterB-Serial2/0] ip address 10.110.40.2 255.255.255.0
Figure 31, Router A and Router B are connected through a frame relay network. Enable
Command
display fr compress [ interface
interface-type interface-number ]
[ | { begin | exclude | include }
regular-expression ]
display fr iphc [ interface
interface-type interface-number ]
[ | { begin | exclude | include }
regular-expression ]
109
Remarks
Available in any view.
Available in any view.
