STM32L151x6/8/B, STM32L152x6/8/B
Functional overview

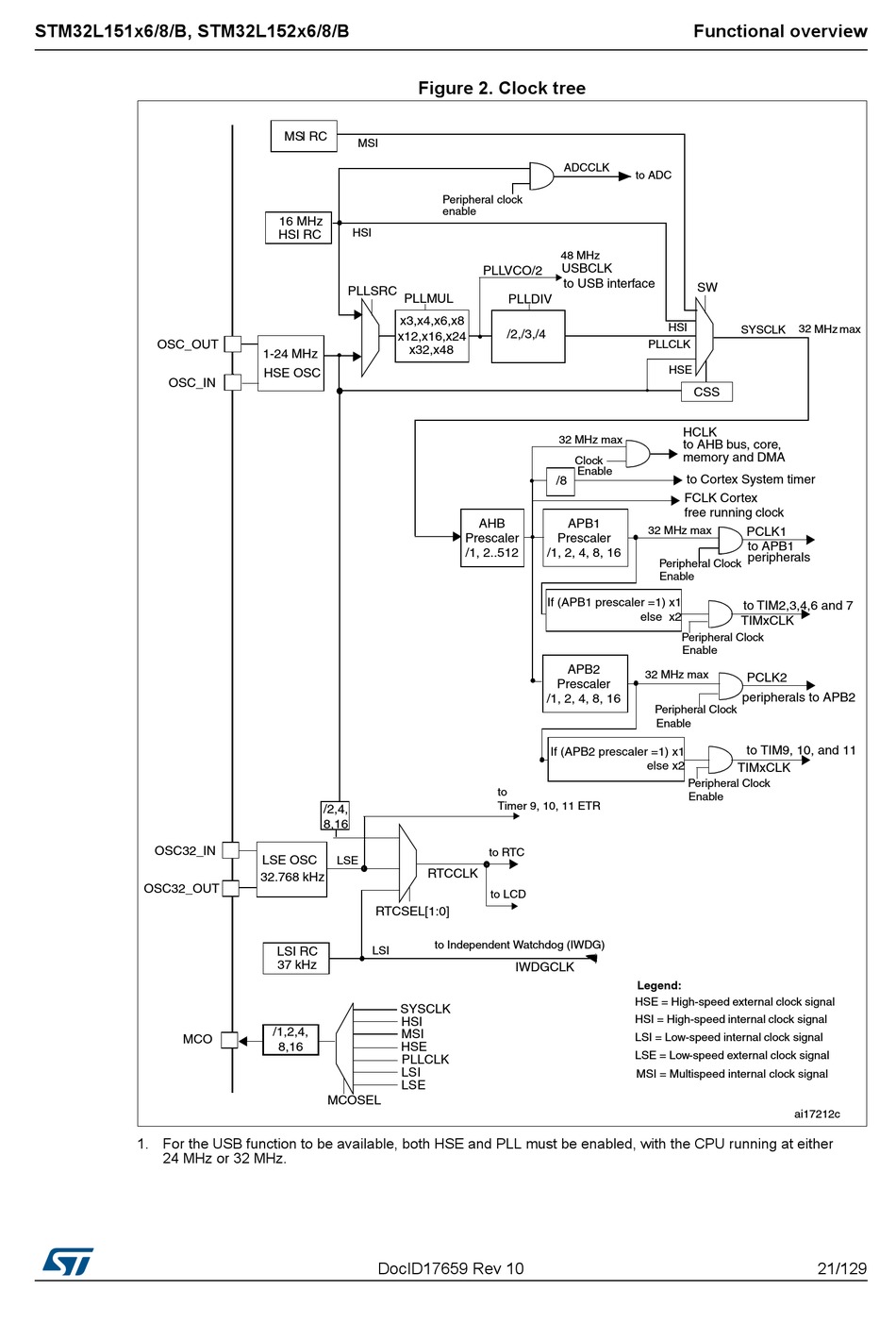

Figure 2. Clock tree
1. For the USB function to be available, both HSE and PLL must be enabled, with the CPU running at either
24 MHz or 32 MHz.
