STM32L100RC
1. For the USB function to be available, both HSE and PLL must be enabled, with the CPU running at either
24 MHz or 32 MHz.
微可Vicor——值得信赖的元器件供应商
http://www.vicor.top/

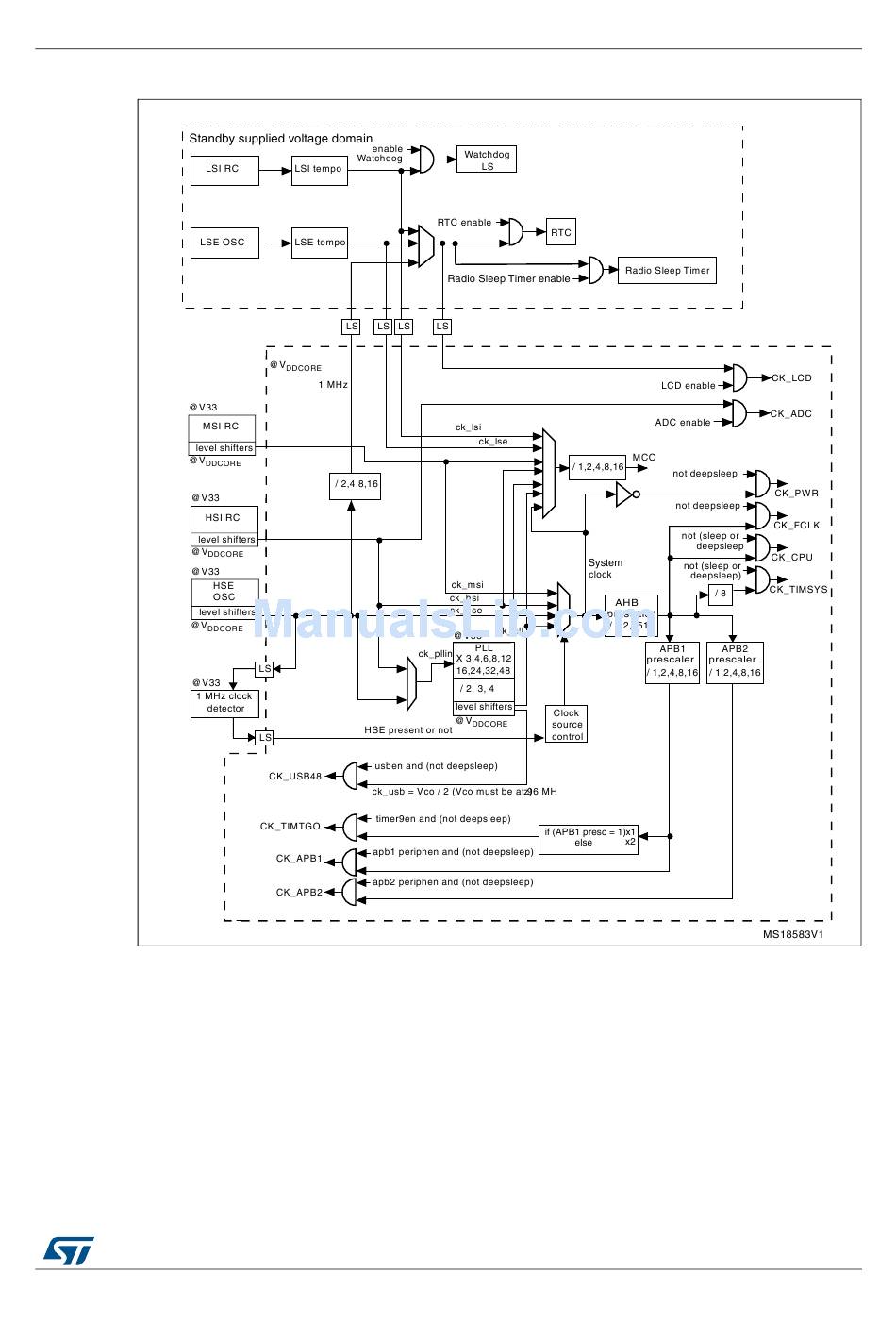

Figure 2. Clock tree
DocID024995 Rev 4
http://www.vicor.top/
021-31660491
21/104
