General-Purpose Inputs/Outputs (Gpios); Figure 2. Clock Tree - STMicroelectronics STM32F042F4 Manual

STM32F042x4 STM32F042x6
3.7

General-purpose inputs/outputs (GPIOs)

Each of the GPIO pins can be configured by software as output (push-pull or open-drain), as
input (with or without pull-up or pull-down) or as peripheral alternate function. Most of the
GPIO pins are shared with digital or analog alternate functions.

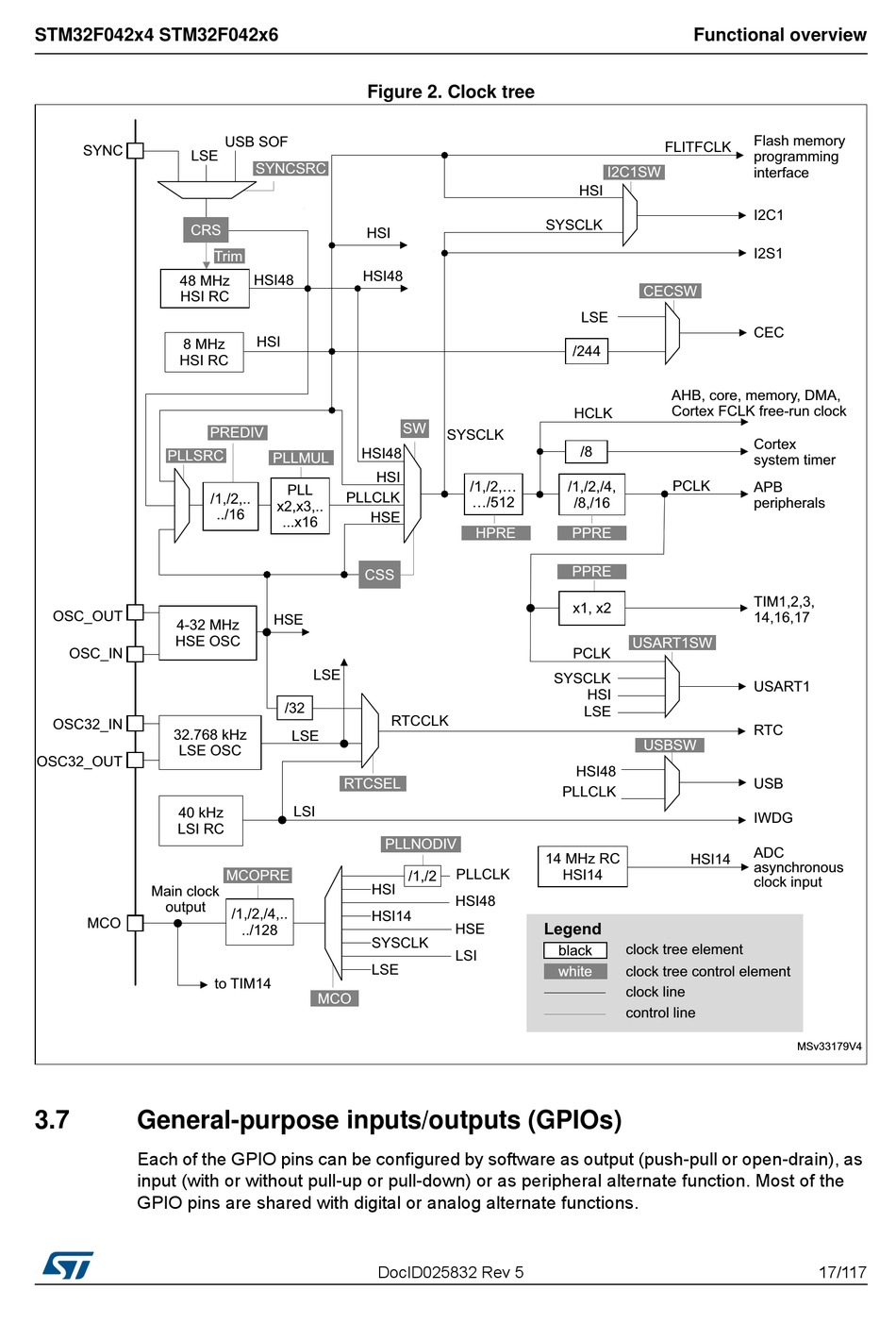

Figure 2. Clock tree
