Application Examples

7.3.4 Potentiometer Reference

Voltage reference via a potentiometer
Reference Source 1 = [1] Analog input 53 (default)
Terminal 53, Low Voltage = 0 V
Terminal 53, High Voltage = 10 V
Terminal 53, Low Ref./Feedback = 0 RPM
Terminal 53, High Ref./Feedback = 1500 RPM
Switch S201 = OFF (U)
Speed RPM
P 6-15
7 7

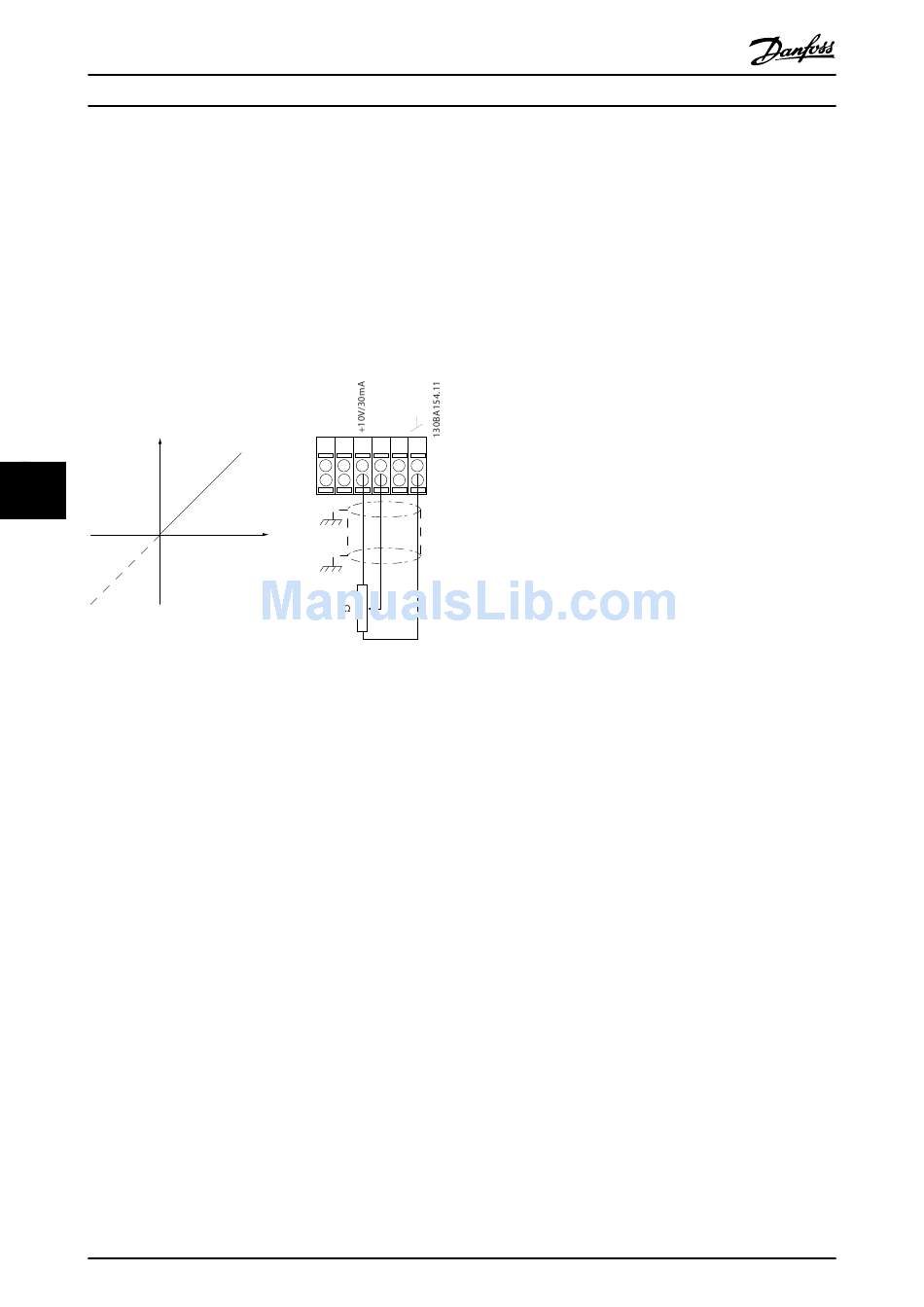

Illustration 7.8 Potentiometer Voltage Reference
118
Operating Instructions
39 42 50 53 54
Ref. voltage
P 6-11 10V
1 k
