3.3.4 Terminal Locations for Frame Size E9

90.0
[3.5]
MAINS
INPUT TERMINAL
383
[15.1]

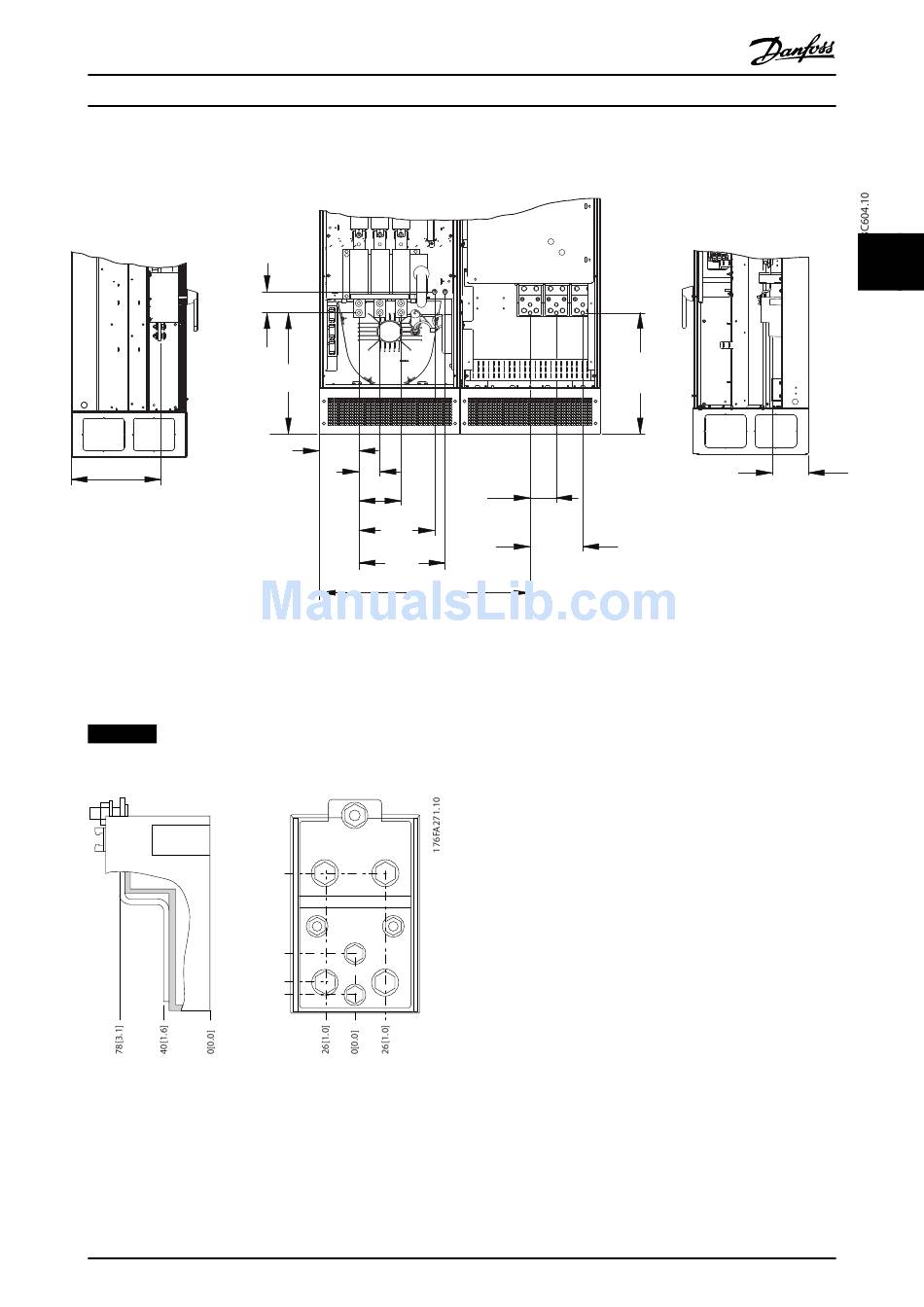

Illustration 3.9 Frame Size E9 Terminal Locations
Allow for bend radius of heavy power cables.
NOTICE
All E-frames are available with standard input terminals, fuse, or disconnect switch.
104[4.1]
35[1.4]
10[0.4]
0[0.0]
Illustration 3.10 Close-up Terminal Diagrams
MG37A202
Operating Instructions
518.0
[20.4]
168.7
[6.6]
90.0
[3.5]
180.0
[7.1]
323.3
[12.7]
368.3
[14.5]
900.0
[35.4]
