Introduction
21
20
1 Control card
2 Control input terminals
3 Local control panel (LCP)
4 Control card C option
5 Mounting bracket
6 Power card mounting plate
7 Power card
8 IGBT gate drive card
9 Upper capacitor bank assembly
10 Soft charge fuses
11 DC inductor
12 Fan transformer
13 IGBT module

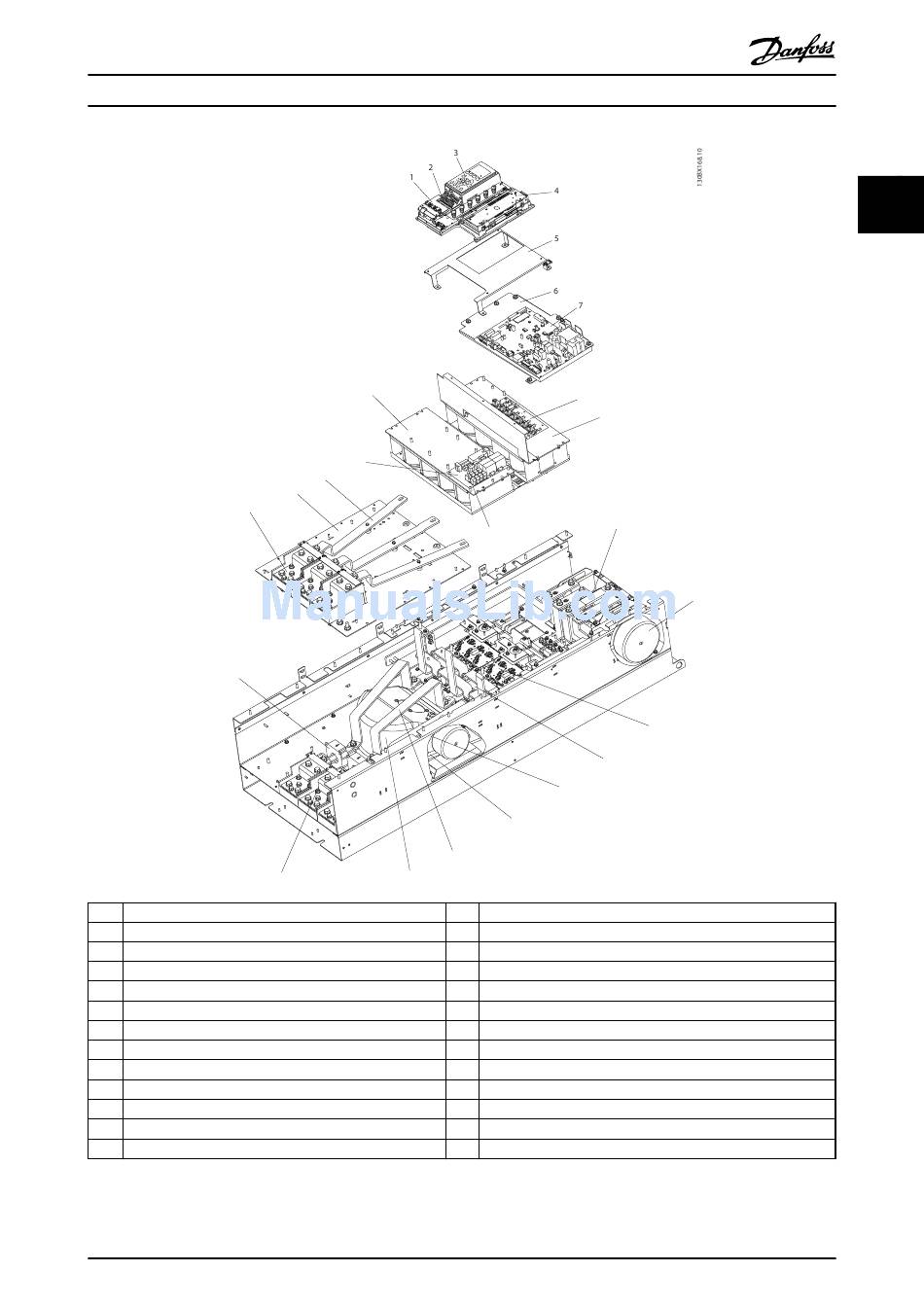

Illustration 2.3 Frame Size E9 Drive Enclosure
MG37A202
Operating Instructions
25
24
23
22
18
19
Danfoss A/S © Rev. 2014-07-29 All rights reserved.
8
9
11
10
14
15
16
17
14 SCR and diode
15 Fan inductor (not on all units)
16 Soft charge resistor assembly
17 IGBT output bus bar
18 Fan assembly
19 Output motor terminals
20 Current sensor
21 Mains AC power input terminals
22 Input terminal mounting plate
23 AC input bus bar
24 Soft charge card
25 Lower capacitor bank assembly
