Introduction
1
2 2
18
17
1 Local control panel (LCP)
2 Active filter card (AFC)
3 Soft charge resistors
4 Metal oxide varistor (MOV)
5 AC capacitors discharge board
6 LC inductor
7 HI inductor
8 Mixing fan
9 IGBT fuses

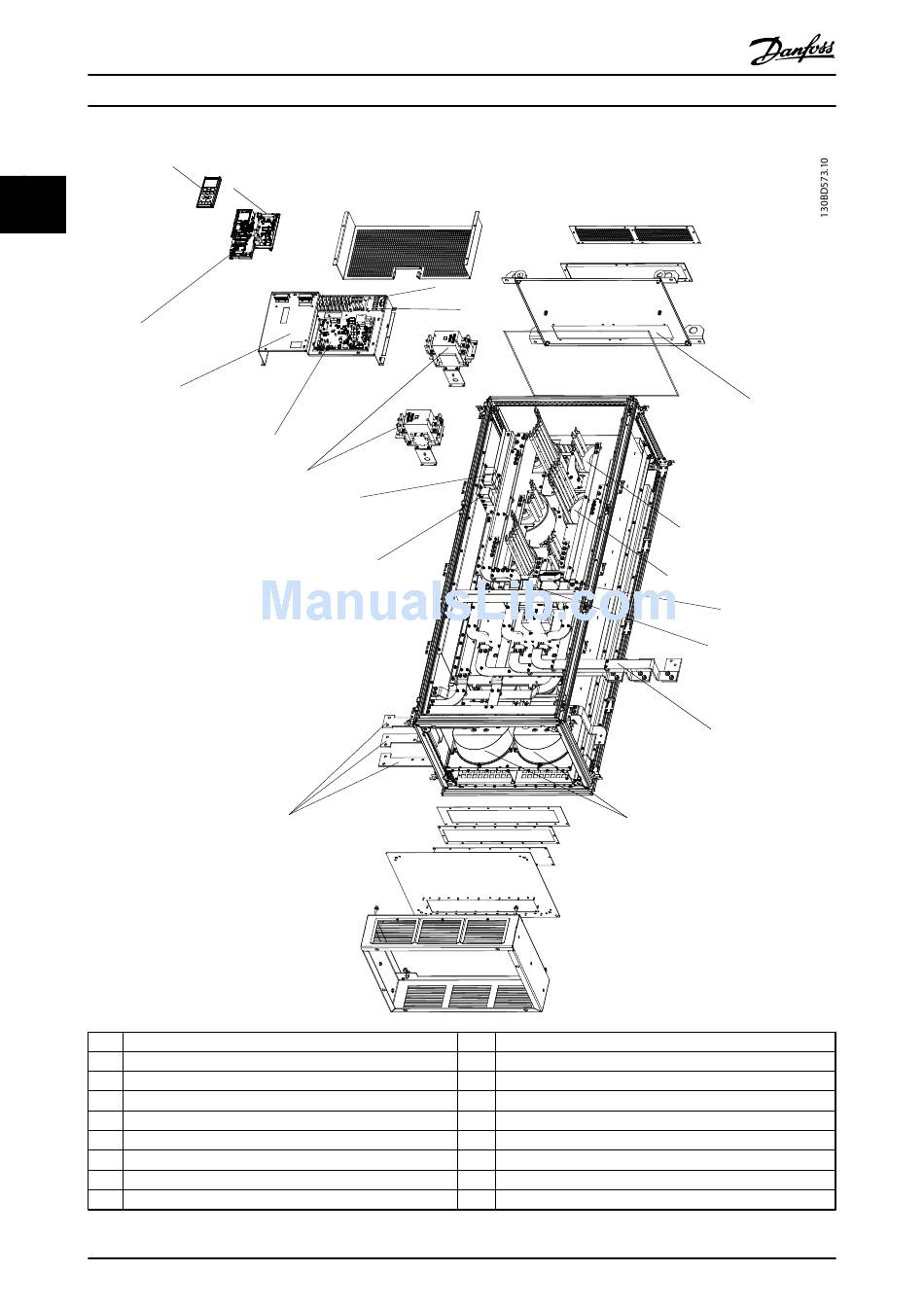

Illustration 2.6 Frame Size F18 Filter Cabinet
10
Operating Instructions
2
16
15
14
13
12
Danfoss A/S © Rev. 2014-07-29 All rights reserved.
3
4
10 Mains bus bars to drive input
11 Heat sink fans
12 Mains terminals (R/L1, S/L2, T/L3) from options cabinet
13 RFI differential mode filter
14 RFI common mode filter
15 Mains contactor
16 Power card
17 Control card
18 LCP cradle
