HETENET-XXX - Ethernet Cable

The Ethernet cable has an M12 x 4 Pin D Coded male connector on one end, and

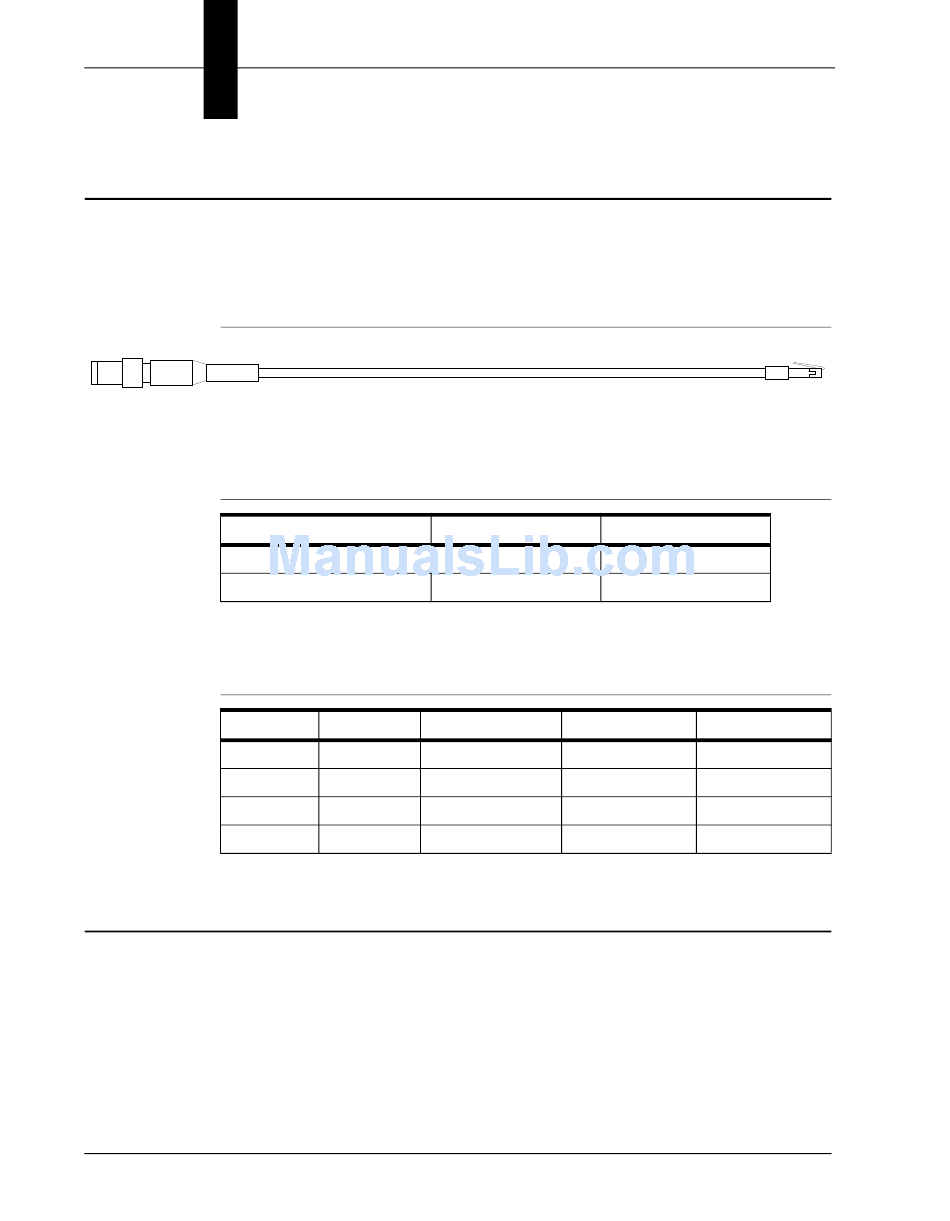

a male RJ-45 connector on the other end. Figure B–4 shows the HETENET-XXX
Ethernet cable.
FIGURE B–4.
C o n n e c t o r :
M 1 2 x 4 P i n D C o d e d ( M )
H E T P C - X X X
Table B–4 lists the available lengths for the HETENET-XXX Ethernet cables.
TABLE B–4.
Catalog Number
98-HT00-0CE2
98-HT00-0CE0
Table B–5 describes the signals for the HETENET-XXX Ethernet cables.
TABLE B–5.
M12 Pin
1
3
2
4

HETLC-050 - Lighting Control Cable

The Lighting Control cable is a single-ended cable with an M5 x 4 Pin A Coded
male connector on one end. Figure B–5 shows the HETLC-050 Lighting Control
cable.
B-4
HETENET-XXX Ethernet Cable
- E t h e r n e t C a b l e
HETENET-XXX Ethernet Cable Lengths
Part Number
HETENET-020
HETENET-100
HETENET-XXX Ethernet Cable Signals
RJ-45 Signal Name
1 Td+
2 Td-
3 Rd+
6 Rd-
Visionscape® Smart Camera HE1600T Guide
C o n n e c t o r :
R J - 4 5
Length
2 Meter
10 Meter
Wire Color Description
White/Orange Transmit+
Orange Transmit-
White/Green Receive+
Green Receive-
Rev. 1H, Mar 2009
