Jobs & Storage in Non-Volatile Memory
The maximum Non-Volatile Memory area for Jobs is 16MB for the Enhanced
Visionscape
Visionscape
support files if used in the AVP:
• IntelliFind models
• OCV/OCR Fonts
• Perl scripts
• Acquire Tool tiff or bmp image list (when programmed to capture from disk)
To determine the size of an AVP from FrontRunner, select File > Show Job
Info... and navigate to the AVP file on the disk. FrontRunner displays a dialog
that shows the File Size of the AVP and other statistics about the Job.

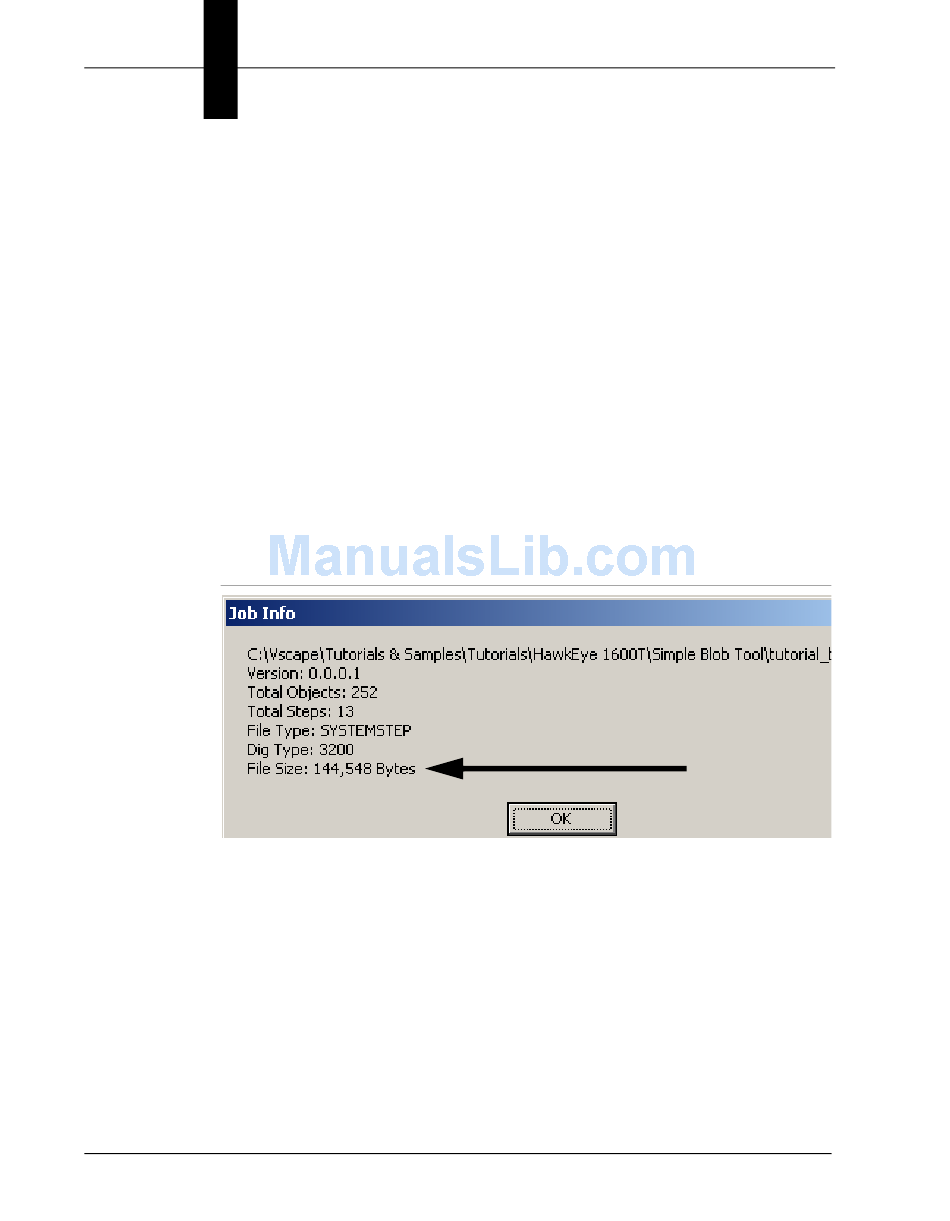

FIGURE 1–2.
Determine support file sizes by adding up the file sizes of the models, fonts, perl
scripts, and tiff images used in the AVP (these are usually stored under
\Vscape\Jobs Contours, Fonts subdirectories). Overall, the maximum size used
(AVP + support files) cannot exceed 16MB for the HE1600Te or 4.8MB for the
HE1600T.
1-10
®
Smart Camera HE1600Te (32/128), and 4.8MB for the Standard
®
Smart Camera HE1600T (16/64). This includes the Job plus any
File Size of Job
