Appendix
F
Ethernet/IP Communication with ControlLogix PLCs
Setting Up the Visionscape

Acquisition

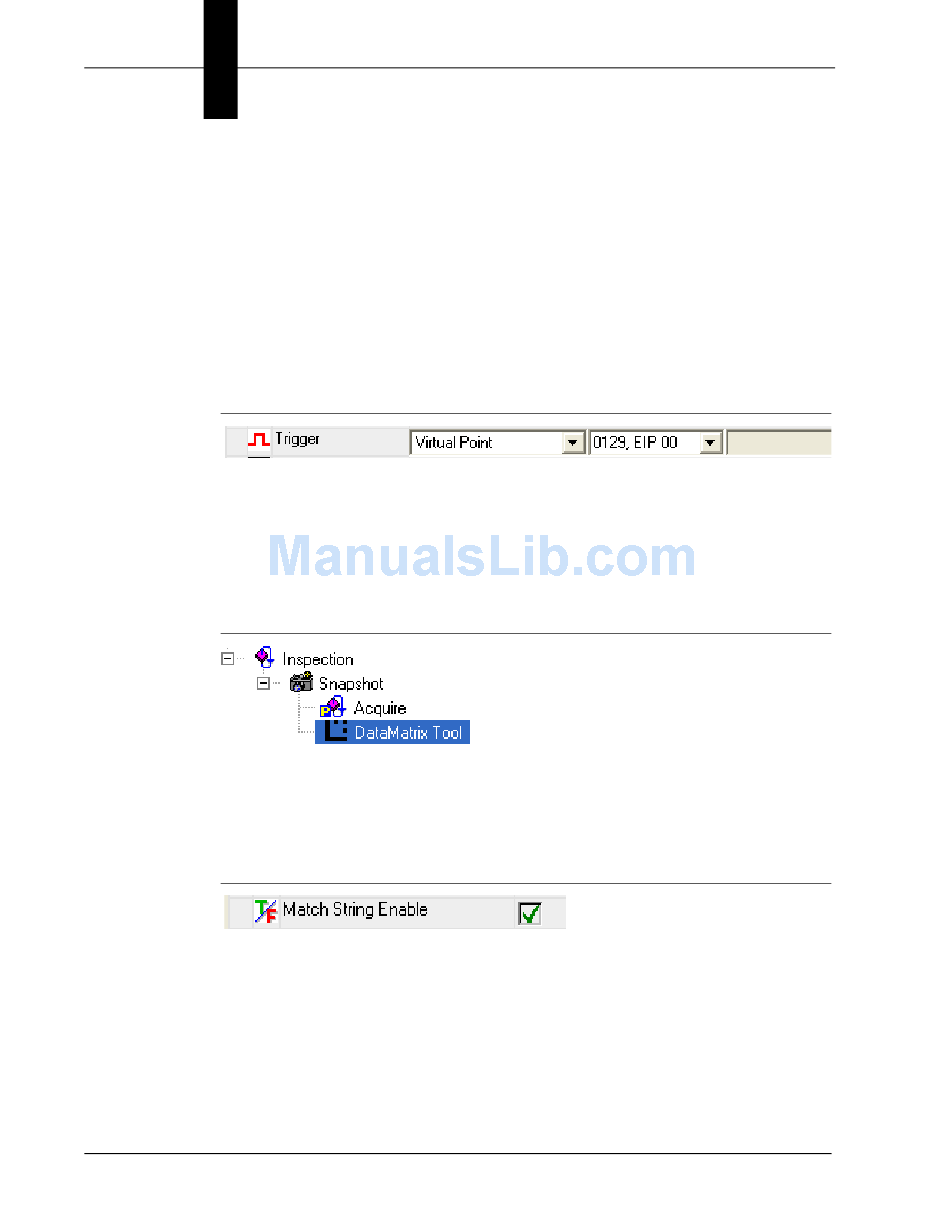

Starting with a new job on the Visionscape
the image acquisition. As we defined in our IO Mapping definition previously,
the trigger should be set to Virtual Point 129. This IO point will be synchronized
with the first bit of the first DINT of the Ethernet/IP assemblies when Ethernet/IP
is enabled and running.
FIGURE F–2.

Data Matrix Tool

Insert a Data Matrix Tool into the snapshot to decode the expected DMR codes.
Ensure that the ROI is large enough to cover the DMR locations of all the images
expected at runtime.
FIGURE F–3.
On the property page of the Data Matrix Tool, select the Match String Enable
option. With this option set, the tool will only Pass if the decoded string matches
the expected 'Match String'.
FIGURE F–4.
Once the job is configured to acquire images and decode them as desired, the
Ethernet/IP connectivity can be added.
F-6
Visionscape® Smart Camera HE1600T Guide
®
Smart Camera HE1600T Job
®
Smart Camera HE1600T, first set up
Rev. 1H, Mar 2009
