Click Close ("X") at the upper right corner.
7.
You will see a screen similar to the following:
FIGURE 4–16.
If you've selected Show Report in List Format (under image), you will
see a screen similar to the following:
FIGURE 4–17.
Rev. 1H, Mar 2009

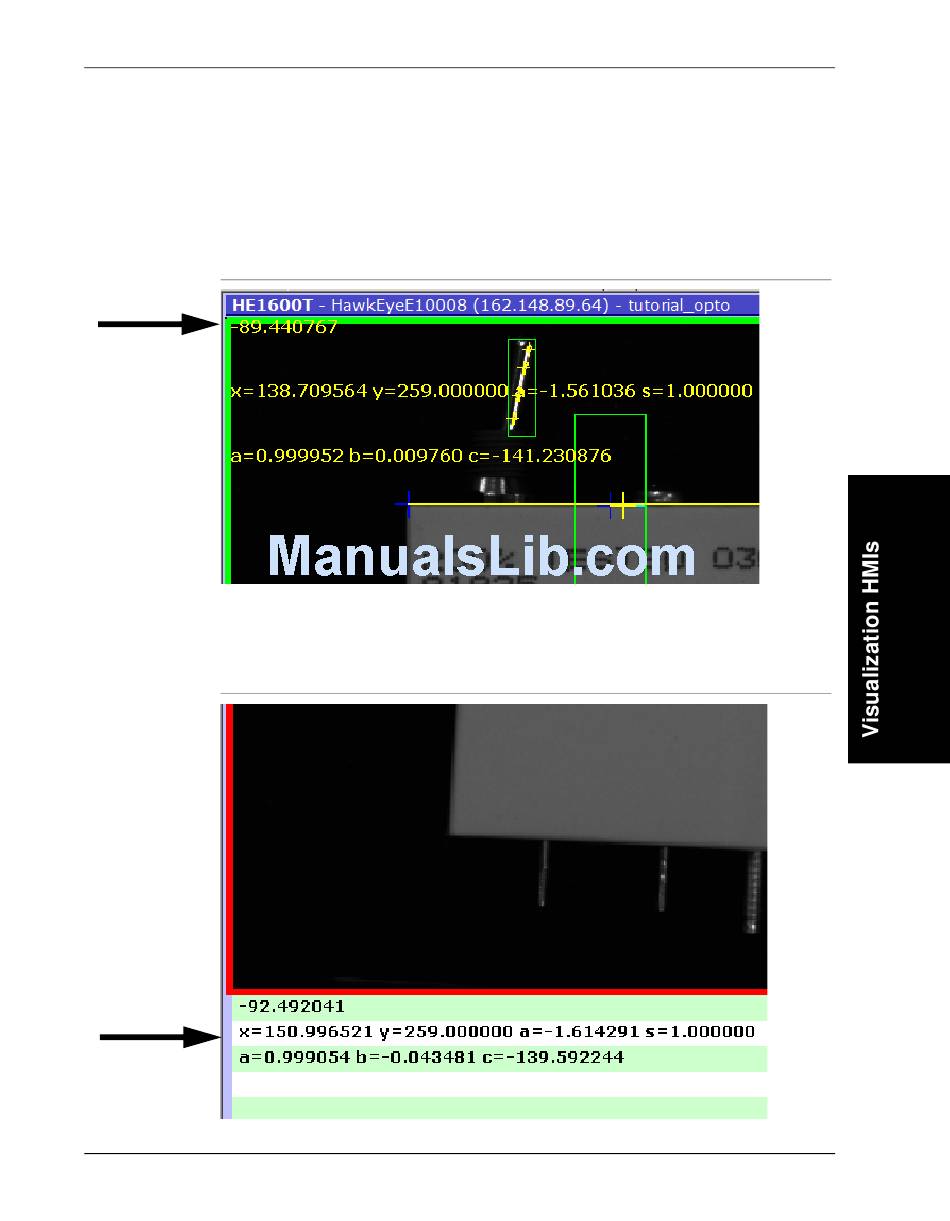

HMI Screen w/Datum Output Displayed Over Passed Image
HMI Screen w/Datum Output Displayed Below Failed Image
Visionscape® Smart Camera HE1600T Guide
Displaying the Output of a Datum
