Programming the Visionscape® Smart Camera HE1600T

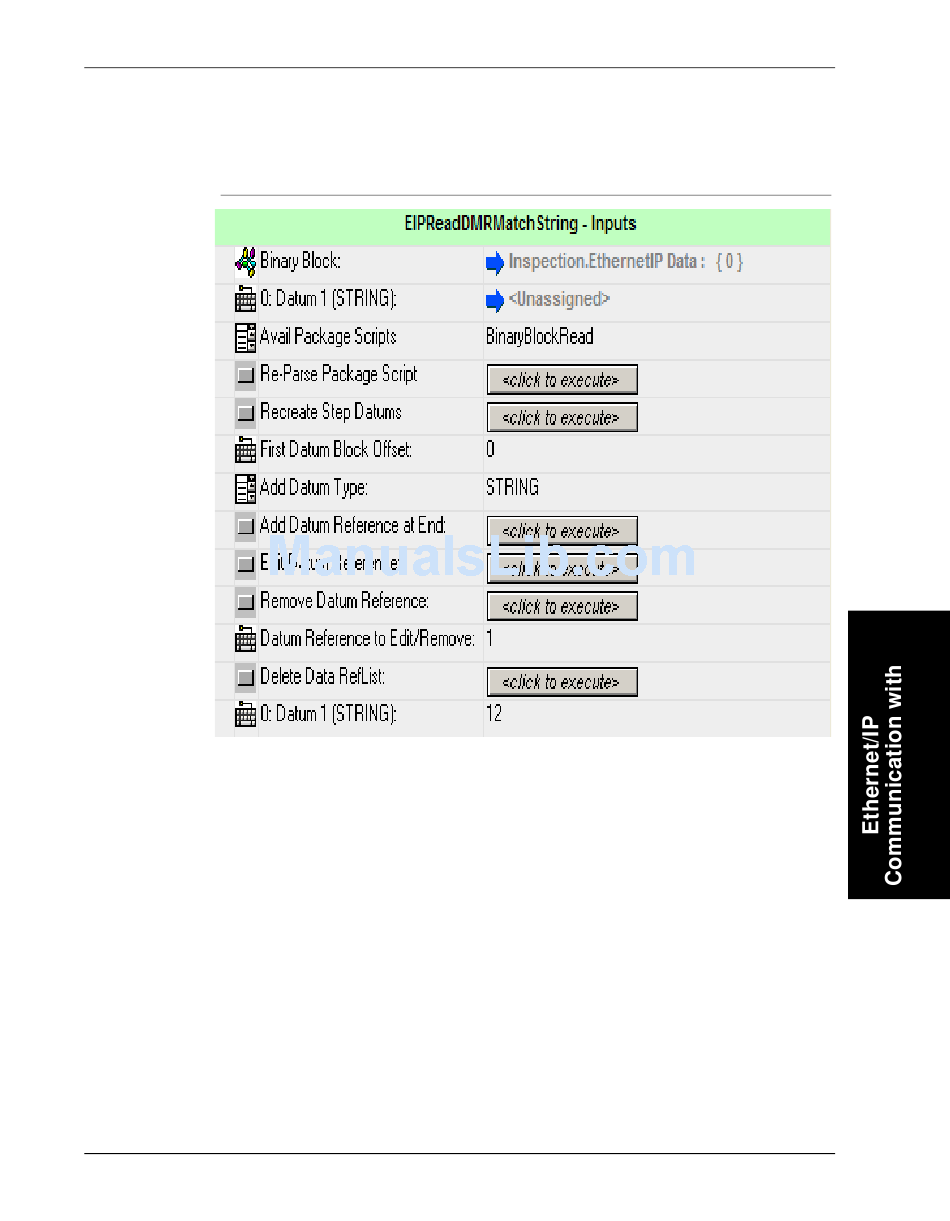

FIGURE F–9.
F
The 0 at the beginning of the name indicates a string starting at assembly byte
location 0 of the user data block. The value 12 in the datum at the bottom of the
property page indicates the default string length of 12 bytes. Since this example
allows strings up to 28 bytes, change the last value to 28.
Next, select where to store the string in the vision job by selecting the input '0
Datum 1' reference selector and choosing the Match String of the Data Matrix
Tool.
