Setting Up the PLC Program

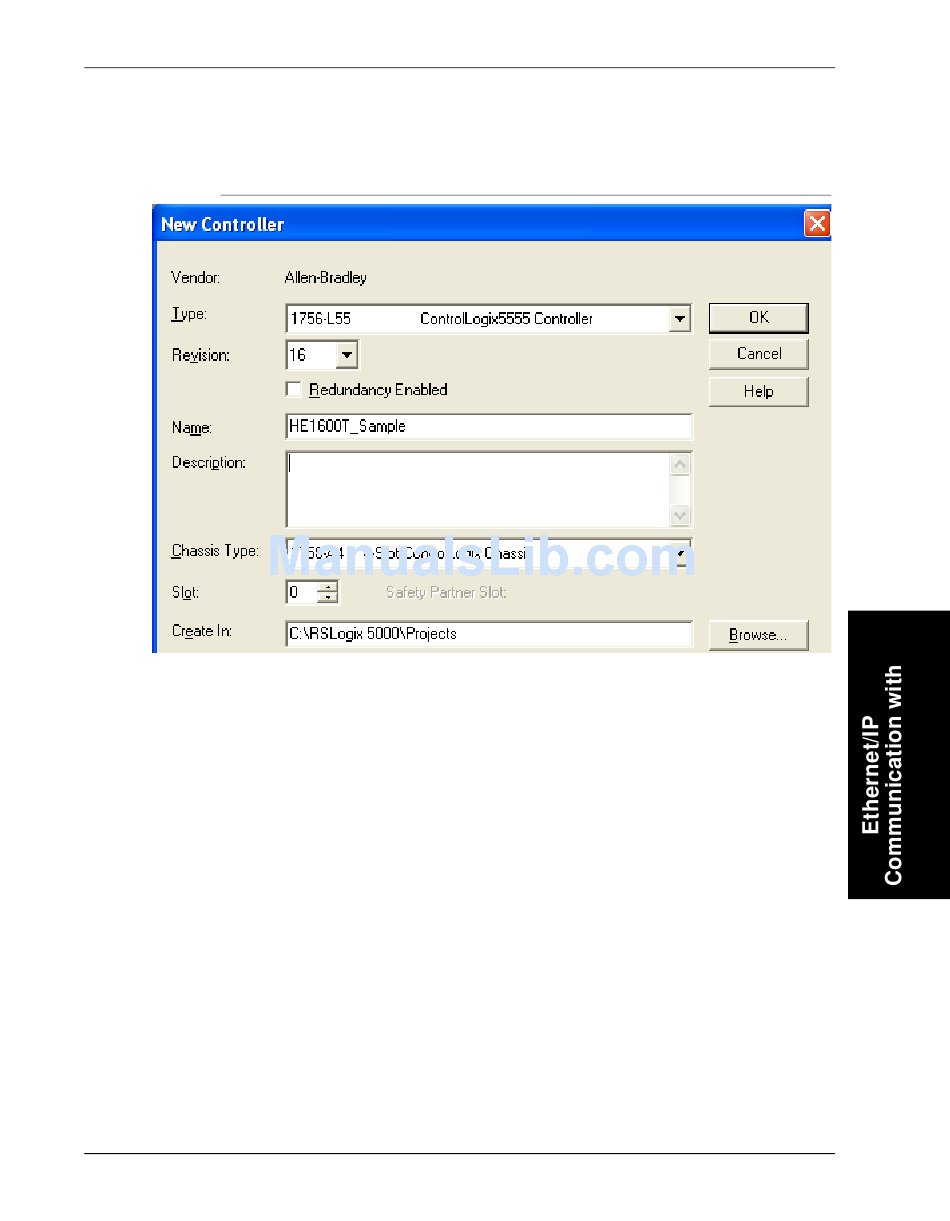

FIGURE F–21.
F
Once RSLogix 5000 creates the program, the Tree View displays different nodes
for Tags, Tasks, etc. The last node in the tree is the "I/O Configuration". Right-
click on this and select "New Module..." to add the Ethernet Bridge to the
configuration.
F-19
