Visualization HMIs
Buttons

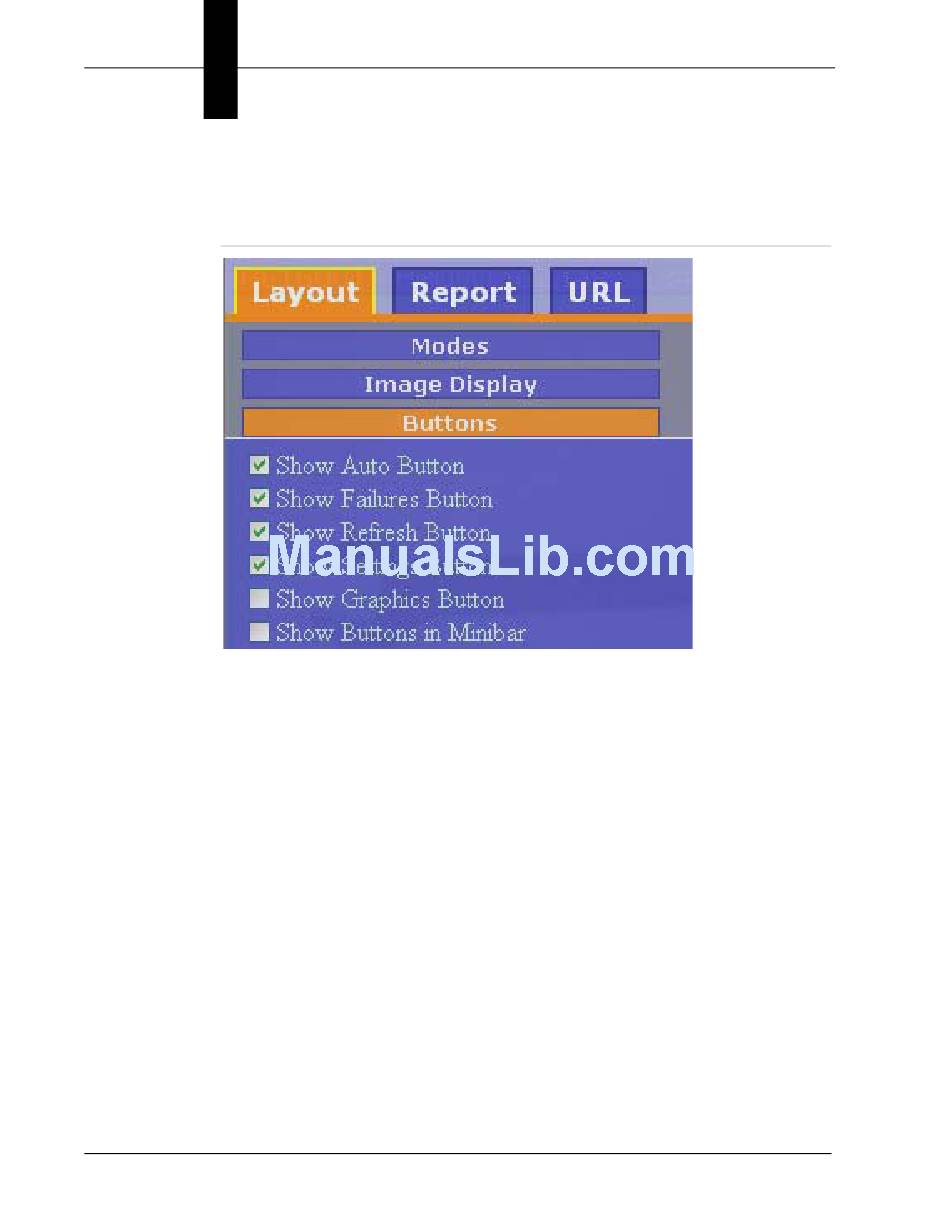

FIGURE 4–8.
•
Show Auto Button — If on (default), the Auto button is shown.
•
Show Buttons in Minibar — If on, the buttons are shown in the Minibar area,
which appears under the titlebar. If off (default), the buttons will be shown to
the right of the image area.
•
Show Failures Button — If on (default), the Failures button is displayed.
•
Show Graphics Button — If on, the Graphics button is shown. This button
controls if the graphics are overlayed on the image. The default is Off.
•
Show Refresh Button — If on (default), the Refresh button is displayed.
•
Show Settings Button — If on, the Settings button is displayed.
4-10
Buttons
Visionscape® Smart Camera HE1600T Guide
Rev. 1H, Mar 2009
