Chapter 4
Visualization HMIs
Report Tab & Setup Screen
NOTE: Changing the report configuration requires reloading the web page in
order to take effect.

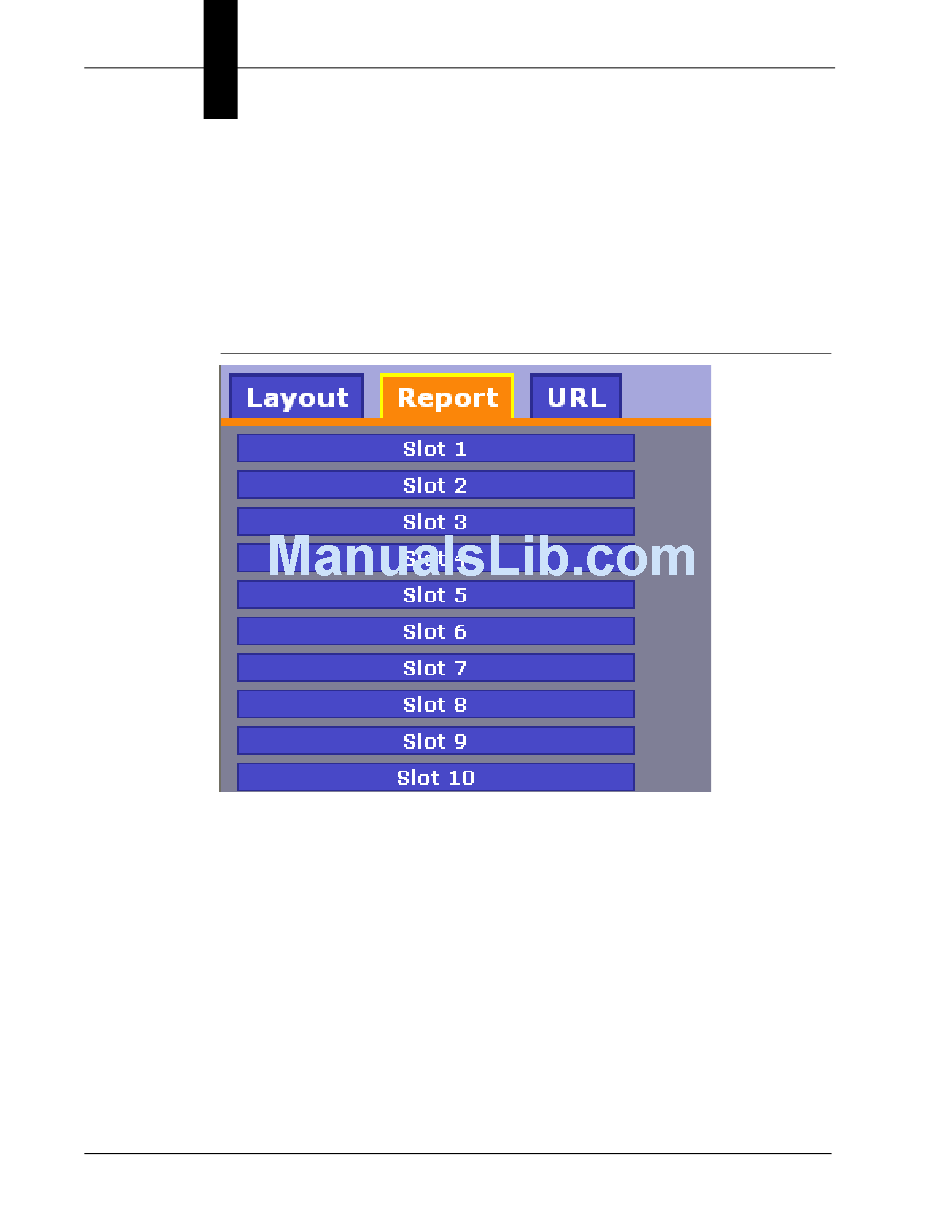

The Report Tab displays the Report Setup screen:
FIGURE 4–11.
Data Values from datums in the selected inspection can be formatted and overlaid
on the displayed image or shown in a table below the image (see "Displaying the
Output of a Datum" on page 4-18). This is specified by assigning one of 10 data
report slots. If overlayed on the image, each of these slots will represent a row in
the display area, which is evenly split into 10 equal sized rows. The spacing will
depend on the overall size of the display area, which in turn is dependant on the
dimensions of the browser window. If the report is shown in list form, each slot
corresponds to one of 10 rows.
Selecting a slot to configure results in the following display:
4-14
Report Setup Screen
