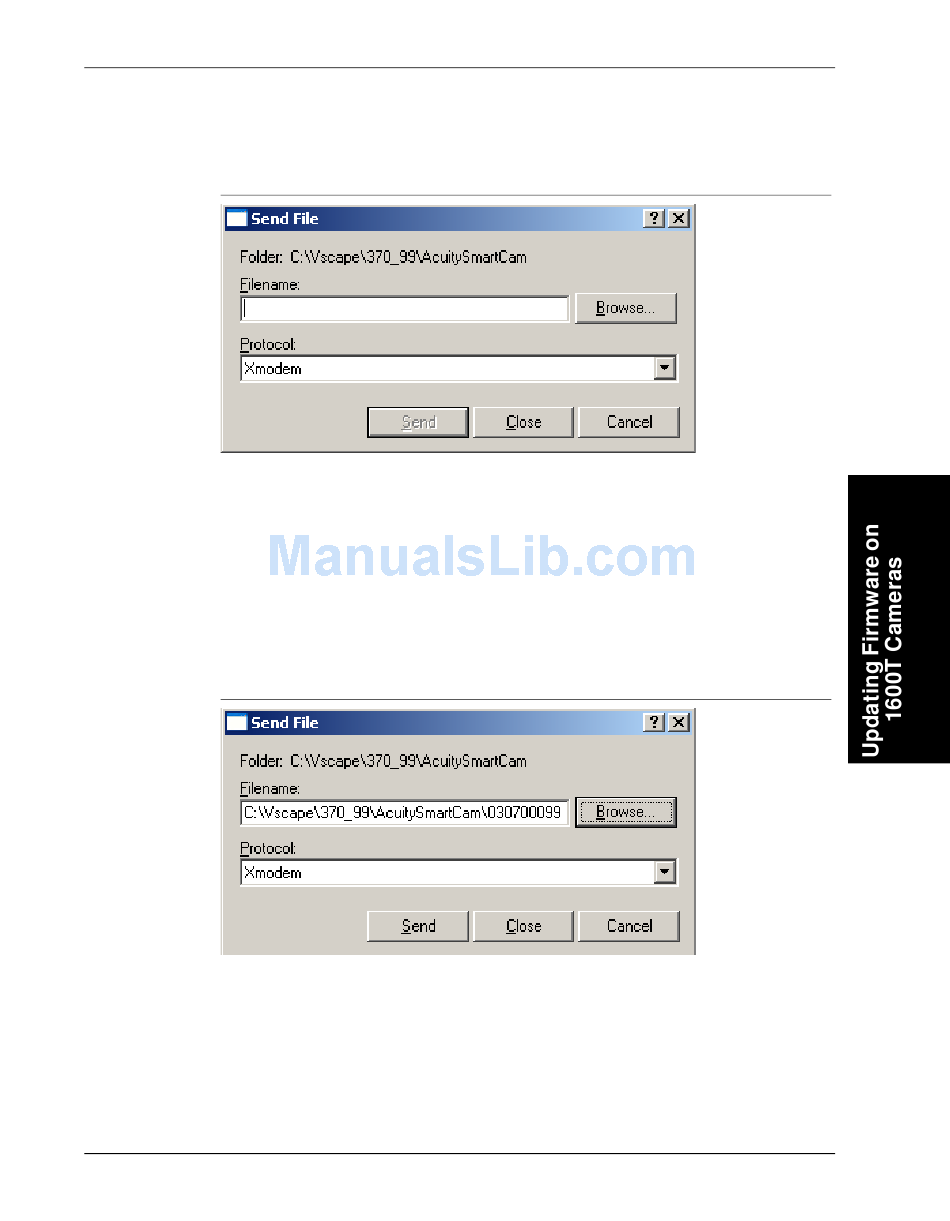

FIGURE E–3.
Click Browse, and navigate to C:\Vscape\373_xx\AcuitySmartCam.
7.
Highlight filename.SEC.
8.
Click Open.
9.
In the Protocol: drop-down menu, select Xmodem.
10.
After you click Open, your screen should look similar to one in Figure E–4:
FIGURE E–4.
Click Send.
11.
You should see an Xmodem File Send screen similar to the one in
Figure E–5:
Rev. 1H, Mar 2009
Updating the Firmware with the Bootloader
Send File Dialog Box
Send File Dialog Box After Filename & Protocol Chosen
Visionscape® Smart Camera HE1600T Guide
E
E-5
