Chapter 4
Visualization HMIs

Pasting a Symbolic Name into the Report

Use the following procedure to paste a symbolic name into the report:
Go to your web browser.
1.
Click Settings. If the Settings button is hidden:
2.
a.
b.
Click Report.
3.
Click on one of the slots.
4.
Put the mouse pointer to the right of Path, right click and select Paste.
5.
Press Enter.
6.
You should see a screen similar to the one in Figure 4–15.
FIGURE 4–15.
4-20
Type the following:
http://ip_address/?setopt=1
Go to Layout > Buttons and click (to select) Show Settings Button.

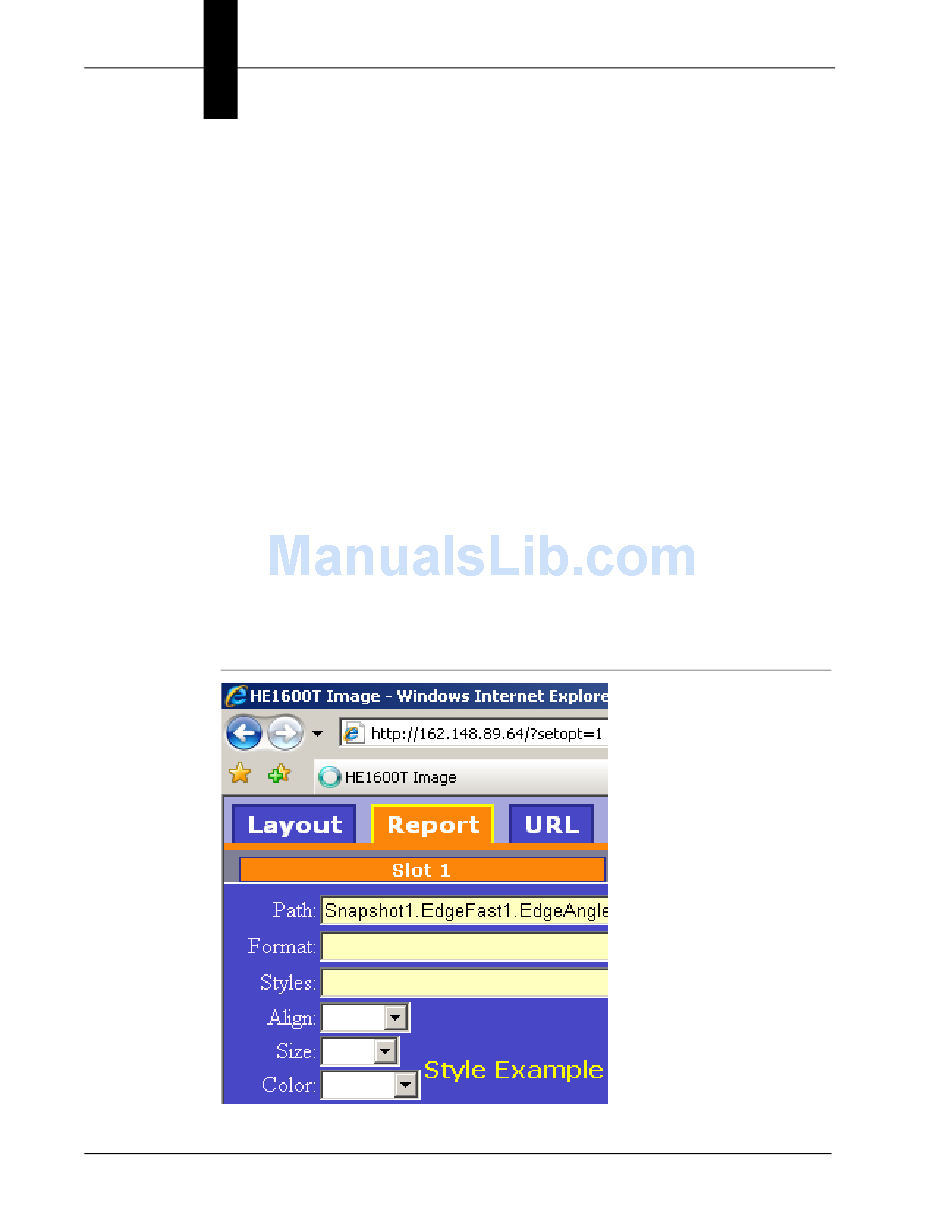

Symbolic Name of Datum Pasted into Slot 1
