Output Opto Wiring

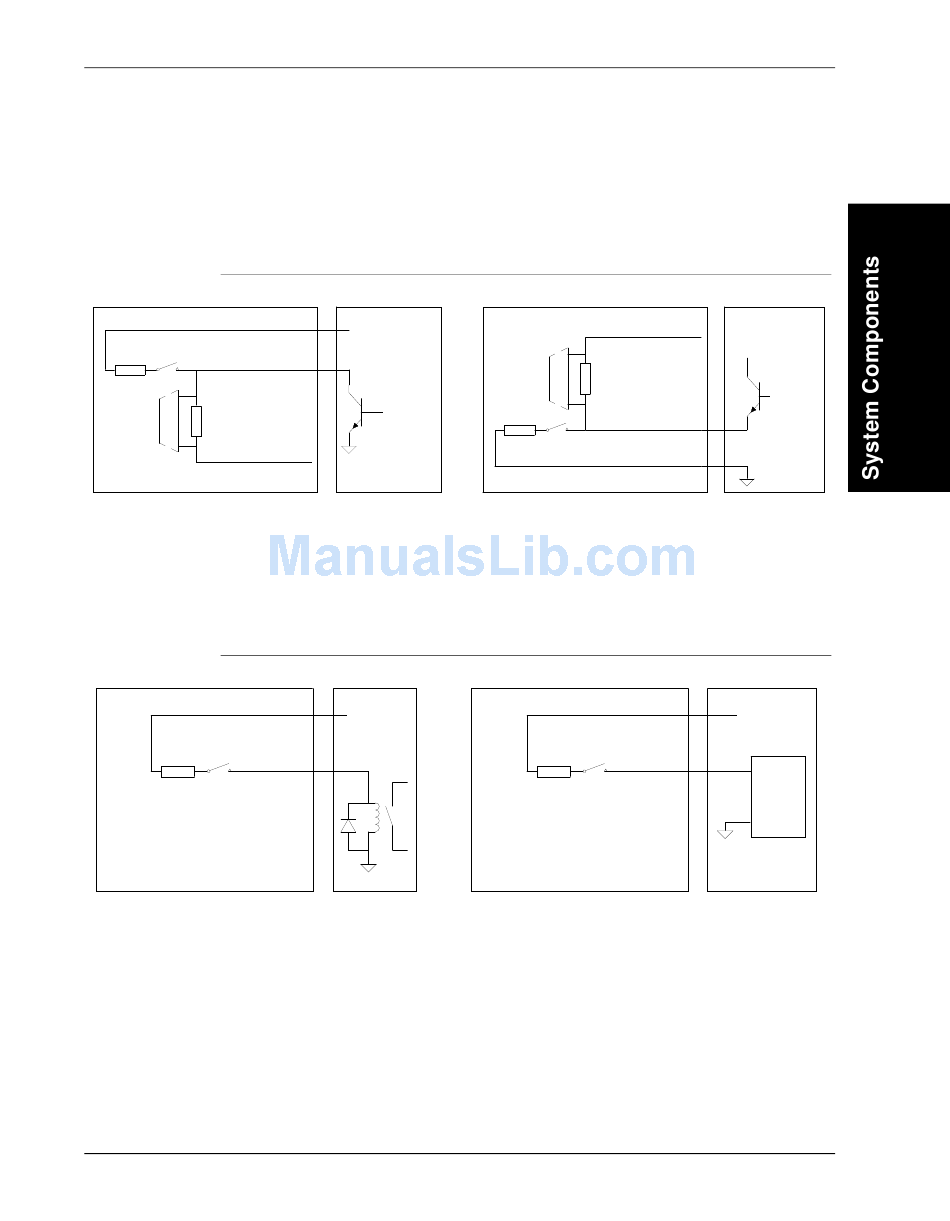

Figure 2–10 shows the output opto wiring for isolated input.
FIGURE 2–10.
Camera
GPIO OUT COM
GPIO x
See Note 1
GPIO IN COM
Note 1: GPIO IN COM typically connected to ground.
Note 2: GPIO IN COM typically connected to Voltage.
Figure 2–11 shows the output opto wiring for isolated relay and PLC inputs.
FIGURE 2–11.
Camera
OUT COM
Figure 2–12 shows the output opto wiring for non-isolated inputs.
Rev. 1H, Mar 2009
GPIO Output Opto Wiring (NPN and PNP)
NPN Sink
15-30V
Signal
Output Opto Wiring (Relay and PLC Inputs)
Relay
15-30V
OUT x
Visionscape® Smart Camera HE1600T Guide
Field I/O Wiring Examples
Camera
See Note 2
GPIO IN COM
15-30V
GPIO x
GPIO OUT COM
Camera
OUT COM
OUT x
2
PNP Source
Signal
PLC
15-30V
PLC
Input
GND
2-13
