Appendix F
Ethernet/IP Communication with ControlLogix PLCs

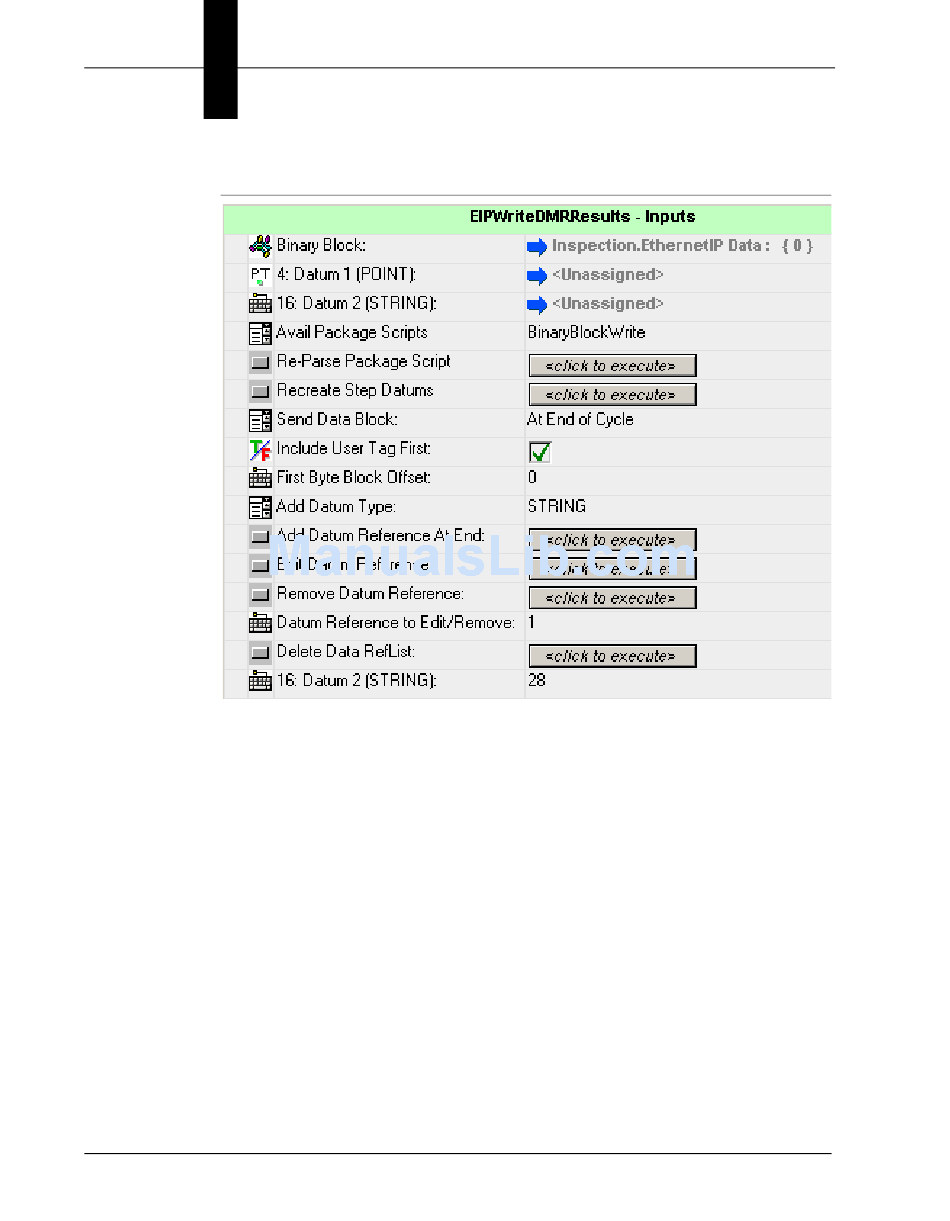

FIGURE F–17.
Finally, add a Boolean reference by selecting Add Datum Type BOOL and
clicking Add Datum Reference. The resulting property page should look like the
one in Figure F–18. Showing a Point data type taking bytes 4-15, a String data
type from bytes 16-47, followed by a Boolean data type in bytes 48-51. The first
datum starts at byte 4 because we selected 'Include User Tag First' which will
place the user tag in bytes 0-3, ahead of the datum contents.
