Chapter 4
Visualization HMIs

Layout Options

You can configure the overall layout of the Runtime Page via the Settings pages.

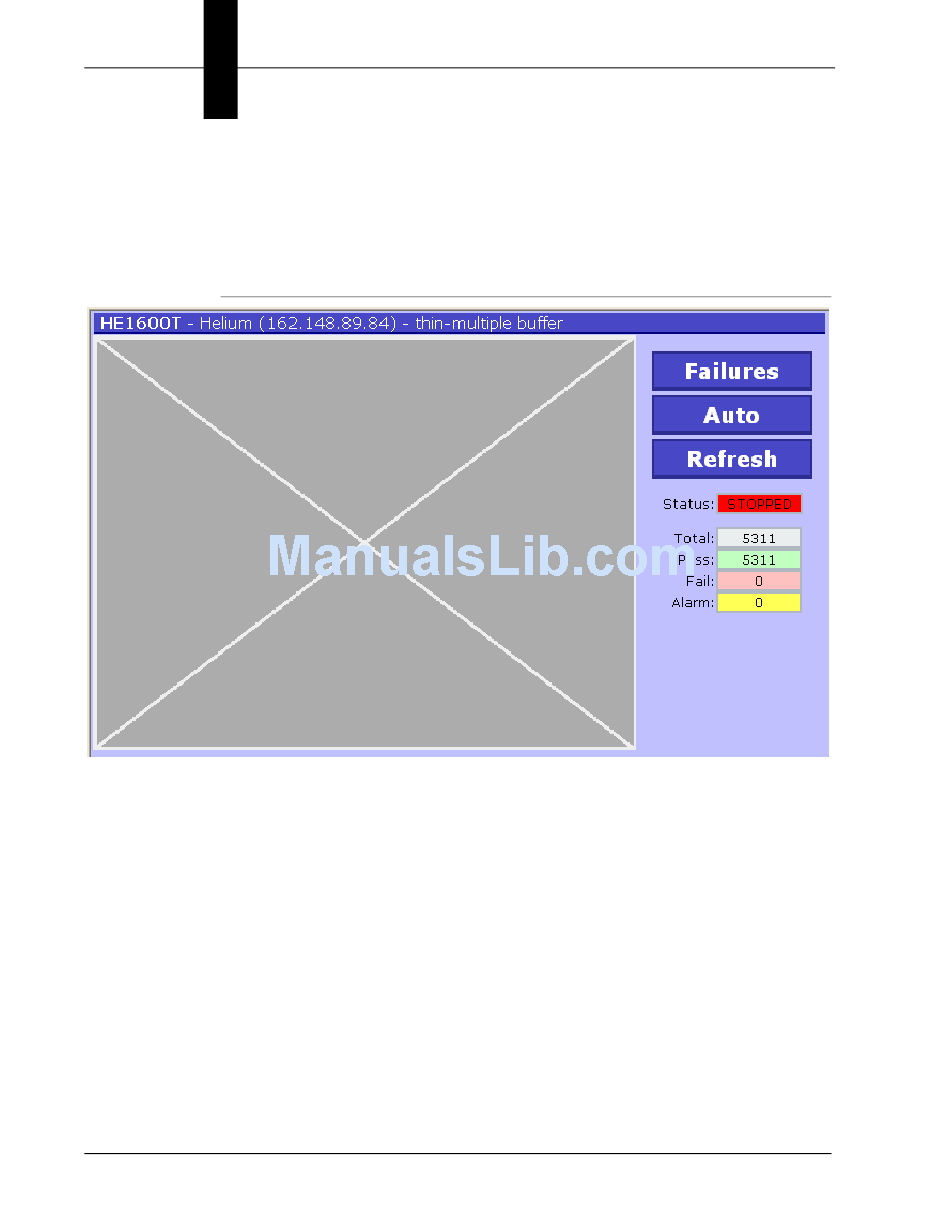

Figure 4–3 shows a default configuration:
FIGURE 4–3.
Buttons, status, and counters appear to the right of the image area. The buttons
are sized for use via a touch screen.
Figure 4–4 displays how the layout has been changed to position the counters at
the top, shown without titles to save room. Additionally, an Options button now
appears in the right side area.
4-6
Default Configuration
