Connecting the PLC Output Assembly Data to Visionscape
Smart Camera HE1600T Datums
Now we will insert a tool to read the match string data from the Ethernet/IP
output assembly and connect it to the DMR tool. Clicking on the Data Matrix
Tool in the Step Tree View, insert a Custom Step above the Data Matrix Tool.
The Custom Step must be inserted above the Data Matrix tool so that it is
executed and the Match String property is updated before the Data Matrix Tool
runs.
Note: Custom Step is found under the Script tab of the Insert Step dialog.

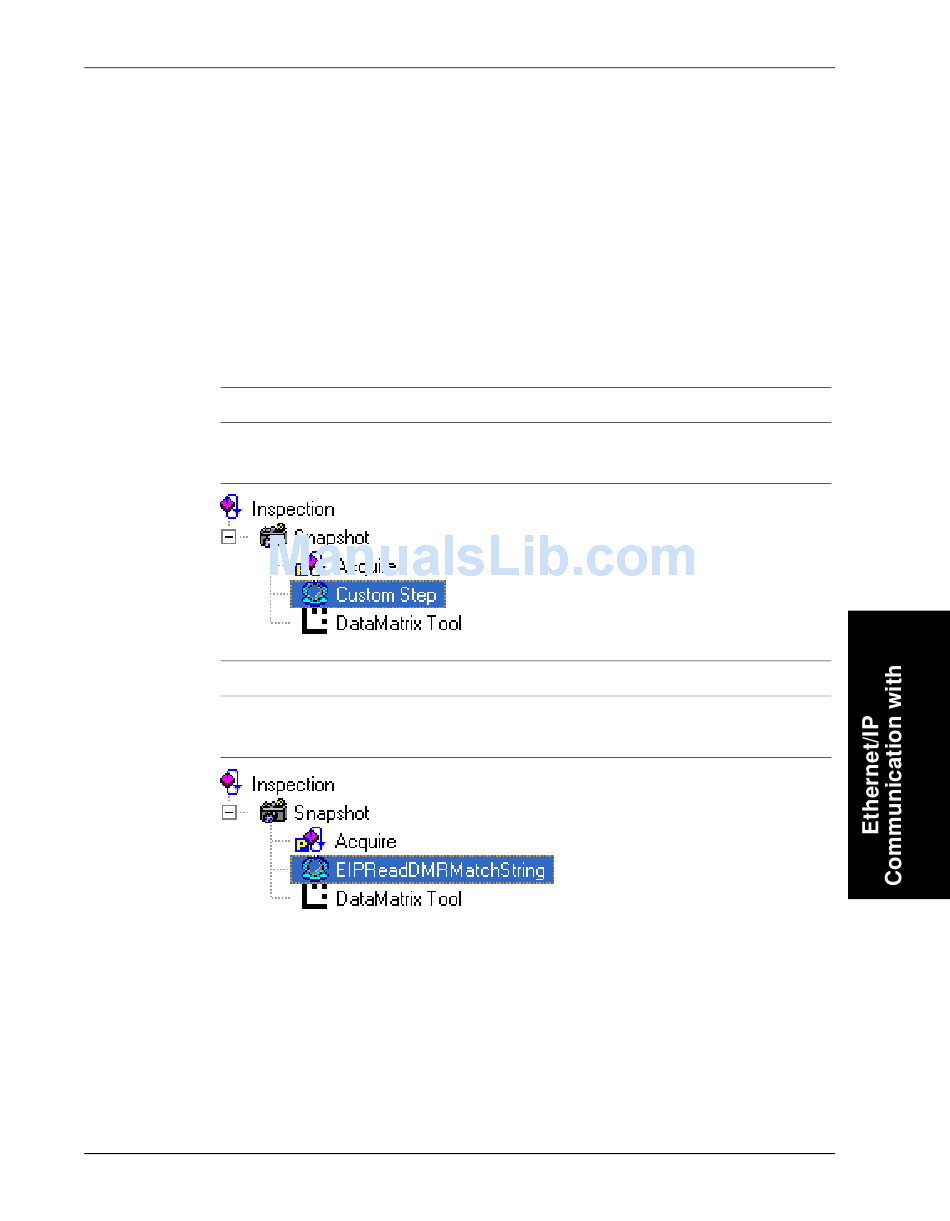

FIGURE F–5.
Note: You can rename the step for better readability, if so desired (Figure F–6).
FIGURE F–6.
On the Custom Step property page, choose the BinaryBlockRead script from the
Avail Package Scripts property (Figure F–7). This is a Perl script that takes data
elements from an Ethernet/IP output assembly and connects them to
Visionscape
Rev. 1H, Mar 2009
Programming the Visionscape® Smart Camera HE1600T
®
datums in a vision job.
