6.3 Drive Alarms, Faults, and Errors
u

Alarm and Error Displays

n Faults
Table 6.4 gives an overview of possible fault codes. Conditions such as overvoltages can trip faults and alarms. It is important
to distinguish between faults and alarms to determine the proper corrective actions.
When the drive detects a fault, the ALM indicator LED lights, the fault code appears on the HOA keypad, and the fault contact
DO-10 triggers. An alarm is present if the ALM LED blinks and the fault code on the HOA keypad flashes.
Faults and Alarms on page 227
HOA Keypad
Display
bAT HOA Keypad Battery Voltage Low
bUS Option Communication Error
MEMOBUS/Modbus
CE
Communication Error
CoF Current Offset Fault
<1>
Control Circuit Error
CPF00, CPF01
CPF02 A/D Conversion Error
CPF03 Control Board Connection Error
CPF06 EEPROM Memory Data Error
CPF07, CPF08 Terminal Board Connection Error
<2>
Control Circuit Error
CPF20, CPF21
CPF22 Hybrid IC Error
CPF23 Control Board Connection Error
CPF24 Drive Unit Signal Fault
EF0 Option Card External Fault
Err EEPROM Write Error
FAn Internal Fan Fault
Fn1 External Fan Fault
FB01 Safety Open
FB02 BAS Interlock Open Time Out
FB03 External Fault Bypass (EFB)
FB05 Motor Overload
FB06 External Motor 1 Overload
FB07 External Motor 2 Overload
FB08 Phase Loss Brownout
FB09 Phase Loss Blackout
FB10 No Drive Comms
FB11 Bypass Board Hardware Error
FB12 Option Board Comms
FB13 Loss of Load
FB14 Serial Communications Fault
<3>
Input Phase Loss
FB15
<3>
Input Phase Rotation
FB16
<4>
Load Lost
FB17
<4>
K3 Welded
FB18
<4>
Duplicate Input
FB19
<4>
Fire Stat (Safety)
FB20
<1> Displayed as CPF00 when occurring at drive power up. When a fault occurs after successfully starting the drive, the display will show CPF01.
<2> Displayed as CPF20 when occurring at drive power up. When a fault occurs after successfully starting the drive, the display will show CPF21.
<3> Available in bypass controller software versions VST800298 and later.
<4> Available in bypass controller software versions VST800400 and later.
226
for a list of alarm codes.

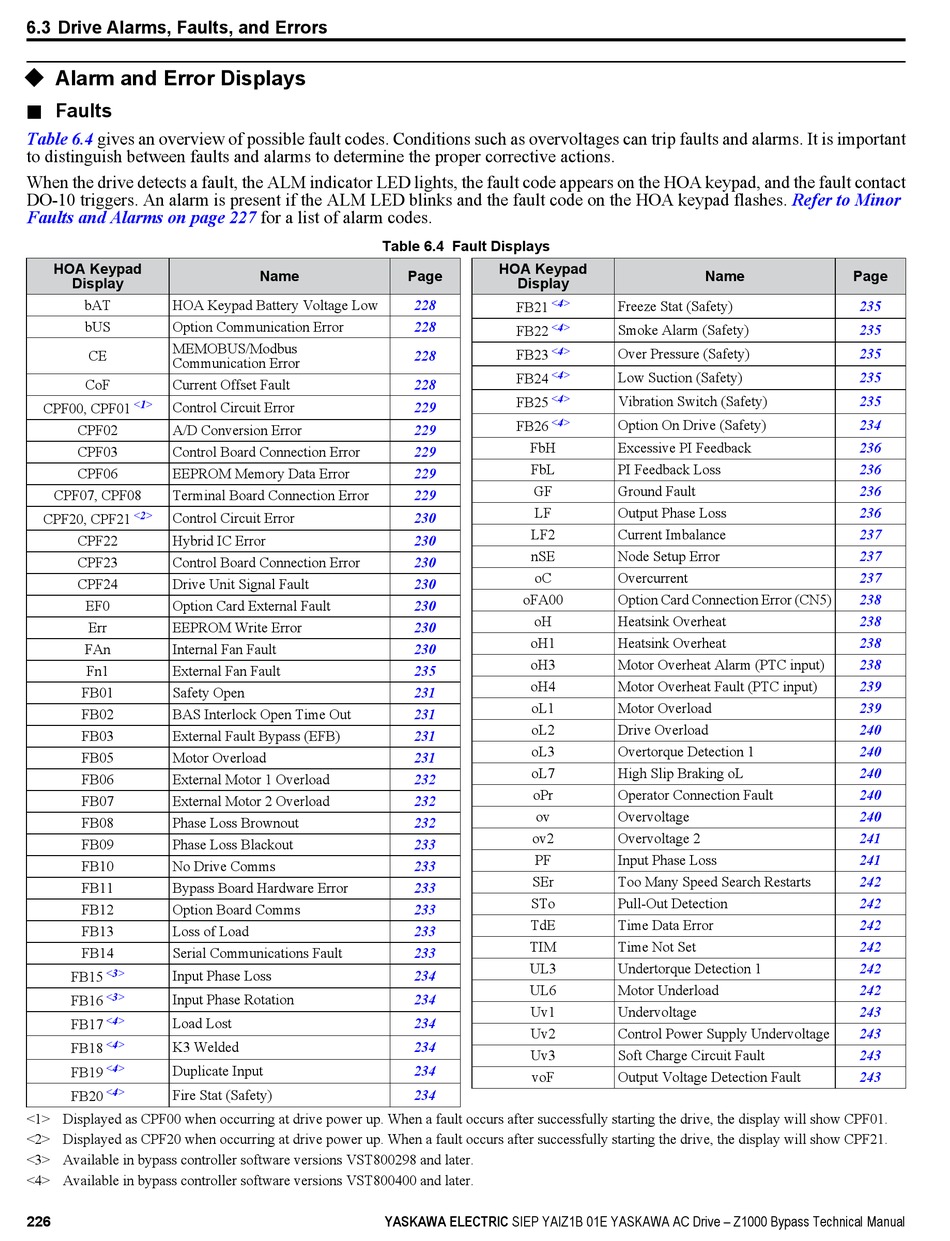

Table 6.4 Fault Displays
Name Page
228
228
228
228
229
229
229
229
229
230
230
230
230
230
230
230
235
231
231
231
231
232
232
232
233
233
233
233
233
233
234
234
234
234
234
234
