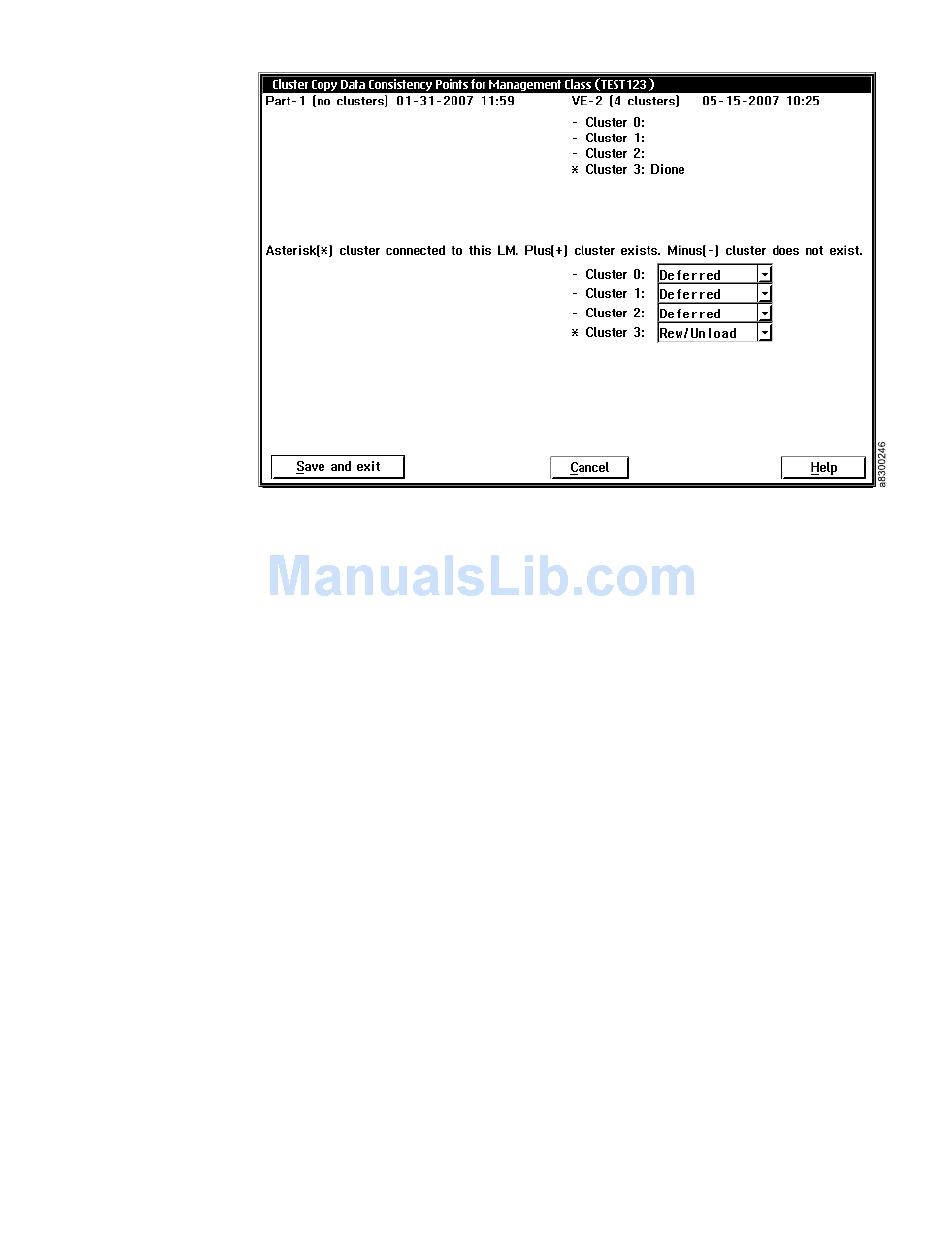

Figure 160. Cluster Copy Data Consistency Points Window
The panel is divided into four sections:
VE-1 Clusters list
The top left portion of the panel lists the number of clusters for VE-1, the
names of each cluster, and indicates by an asterisk (*) which cluster is
attached to this Library Manager. The names for each cluster are passed to
the Library Manager when the LM and the VE initialize.
VE-2 Cluster list
The top right portion of the panel lists the number of clusters for VE-2, the
names of each cluster, and indicates by an asterisk (*) which cluster is
attached to this Library Manager. The names for each cluster are passed to
the Library Manager when the LM and the VE initialize. If VTS-2 is not a
VE then nothing will display here.
VE-1 Consistency Point values
The bottom left portion of the panel has a drop-down selection list box for
each cluster for VE-1.
VE-2 Consistency Point values
The bottom right portion of the panel has a drop-down list box for each
cluster for VE-2.
To view or modify cluster copy consistency points, do the following:
1. In the VE Clusters section of the Manage Management Classes window, click
the Open Panel button.
2. In the Cluster Copy Data Consistency Points panel, review the clusters
associated with each virtualization engine (VE).
Note: In the example above, VE-1 has two clusters (Cluster 0 and Cluster 1)
and VE-2 has two clusters (Cluster 0 and Cluster 1).
3. The System Administrator can set the cluster copy consistency points for each
cluster to one of the following values:
Chapter 6. Advanced Operating Procedures
259
