Installing the PCI Mezzanine Riser Cards

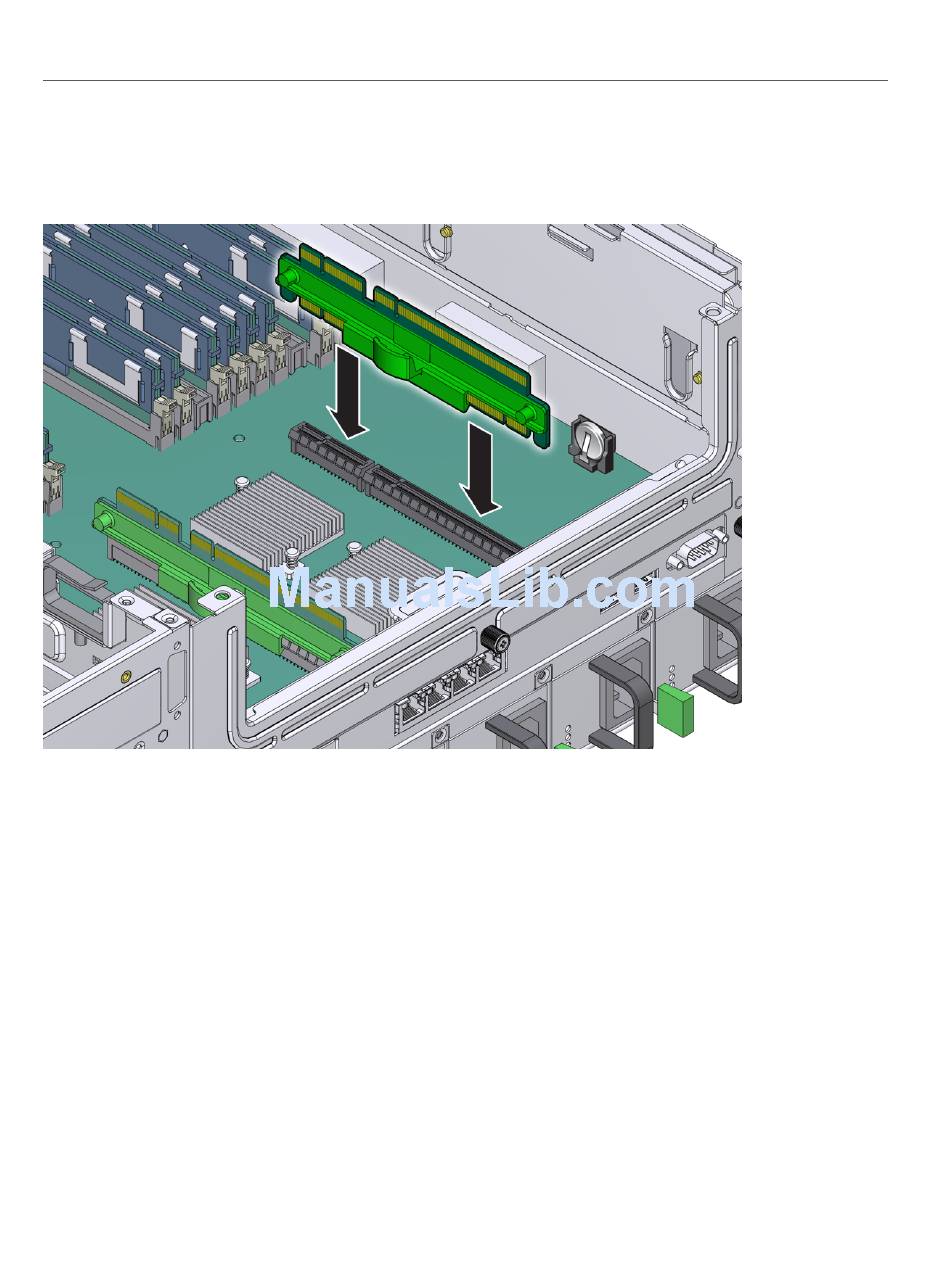

FIGURE 4-11
Carefully place the riser cards on the riser card slots
a.
b. Press down until fully seated into slots
Carefully seat the PCI mezzanine on the PCI riser cards
2.
Secure the release tabs by pressing them forward and down
3.
Securing the release tabs fully seats the PCI mezzanine onto the riser cards. You do not need to
press downward.
(Figure 4-11).
Chapter 4 • Replacing Motherboard Assembly Components
Install the PCI Mezzanine Assembly
(Figure 4-11).
(Figure 4-12).
(Figure 4-12).
