Align the FB-DIMM notch with the key in the connector. This ensures that the FB-DIMM is
oriented correctly.
Push the FB-DIMM into the connector until the ejector tabs lock the FB-DIMM in
4.
place.
If the FB-DIMM does not easily seat into the connector, verify that the orientation of the FB-
DIMM is as shown in
might occur.

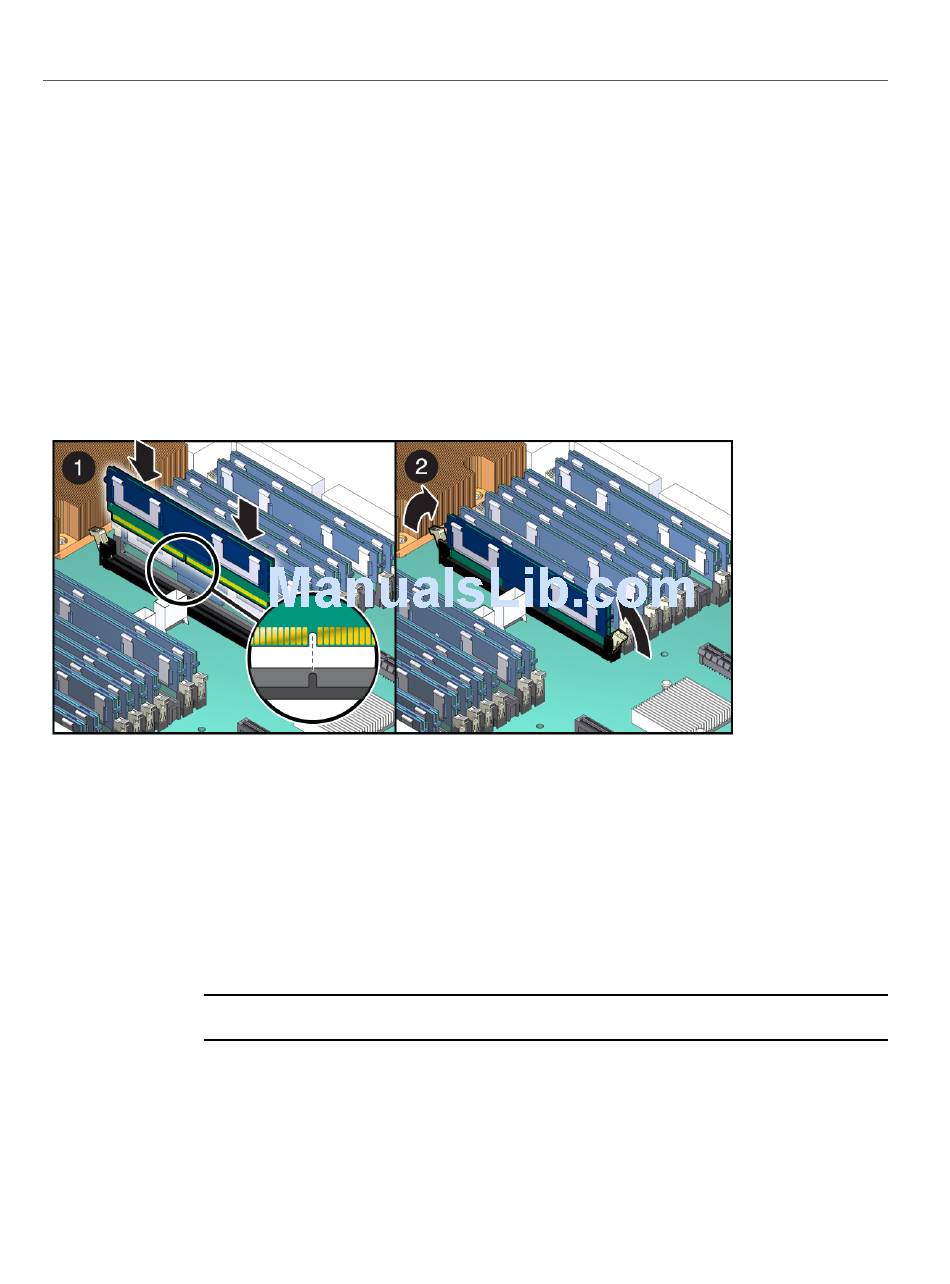

FIGURE 4-22 Inserting the FB-DIMM Into the Slot
Repeat
5.
Consider your next step:
6.
If you installed FB-DIMMs as part of another procedure, return to that procedure.
■
If you are to only install FB-DIMMs go to
■
Note -
7. See Chapter 6, "Returning the Server to Operation"
online.
Figure 4-22. If the orientation is reversed, damage to the FB-DIMM
Step 2 through Step 4
If you removed the memory mezzanine, you must reinstall it. See ***
until all replacement FB-DIMMs are installed.
Step 7.
Chapter 4 • Replacing Motherboard Assembly Components
Install FB-DIMMs
to bring the server back
105
