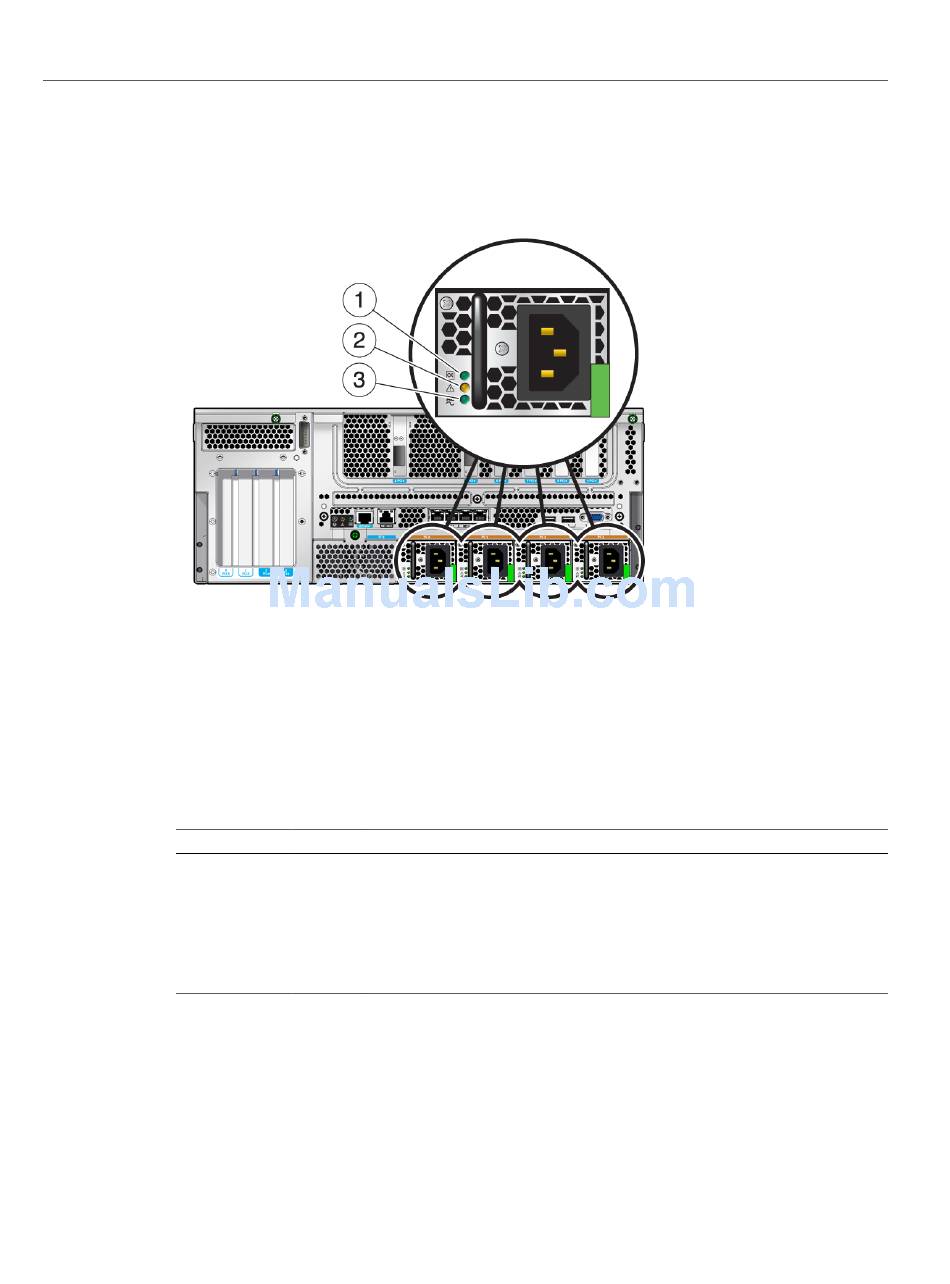

FIGURE 1-5
Figure Legend
1
Power OK power supply LED
2
Fault power supply LED
3
Input OK power supply LED
TABLE 1-4
LED
Power OK
Fault
Input OK
1.3.4

Ethernet Port LEDs

The ILOM management Ethernet port and the four 10/100/1000 Mbps Ethernet ports each have
two LEDs, as shown in
Power Supply LEDs
Power Supply LEDs
Color Description
Green ■ On – Normal operation. DC output voltage is within normal limits.
■ Off – Power is off.
Amber ■ On – Power supply has detected a failure.
■ Off – Normal operation.
Green ■ On – Normal operation. Input power is within normal limits.
■ Off – No input voltage, or input voltage is below limits.
Figure 1-6 and described in
1.3 Using LEDs to Identify the State of Devices
Table 1-5.
Chapter 1 • Server Diagnostics 21
