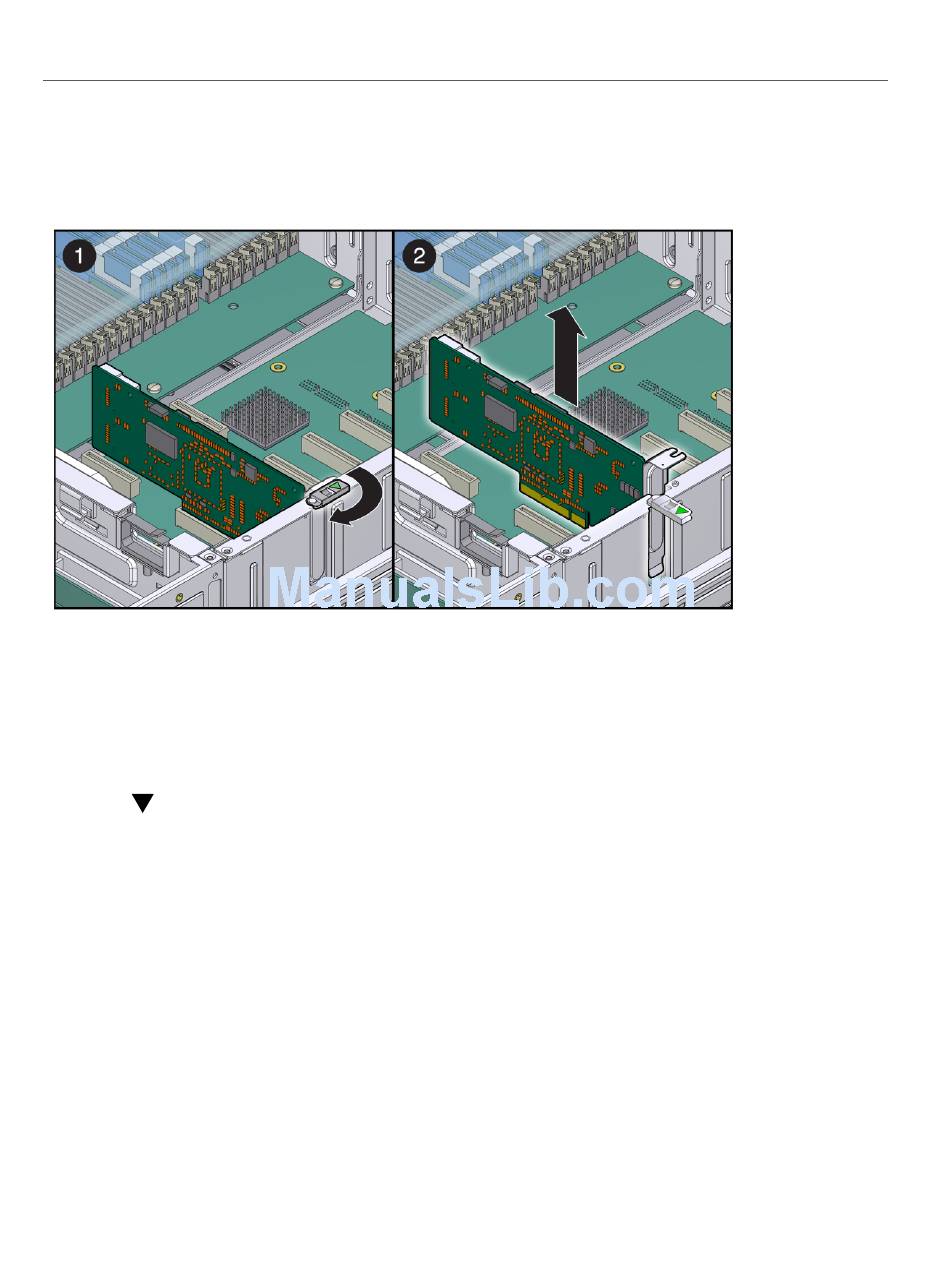

Removing PCIe/XAUI Cards 4-9
FIGURE 4-4
5. See Chapter 6, "Returning the Server to Operation"
online:

Install PCIe/XAUI Cards 4-6 and PCIe Cards 7-9

1. Prepare the server for PCIe card removal. See:
"Power Off the Server" on page 59
■
"Disconnect Cables From the Server" on page 60
■
"Remove the Server From the Rack" on page 60
■
"Perform Antistatic Measures" on page 61
■
"Remove the Top Cover" on page 62
■
Pull the filler panel release tab out
2.
Install PCIe/XAUI Cards 4-6 and PCIe Cards 7-9
to bring the server back
(Figure 4-5).
Chapter 4 • Replacing Motherboard Assembly Components 79
