P-MP Remote Mode

The P-MP (point-to-multipoint) mode is used to bridge an unlimited number of PULSE radio
networks together. This allows serial devices from different PULSE networks to talk to each other
via an Ethernet network. Data is transferred using low-latency UDP packets, making the solution
ideal for polling applications.

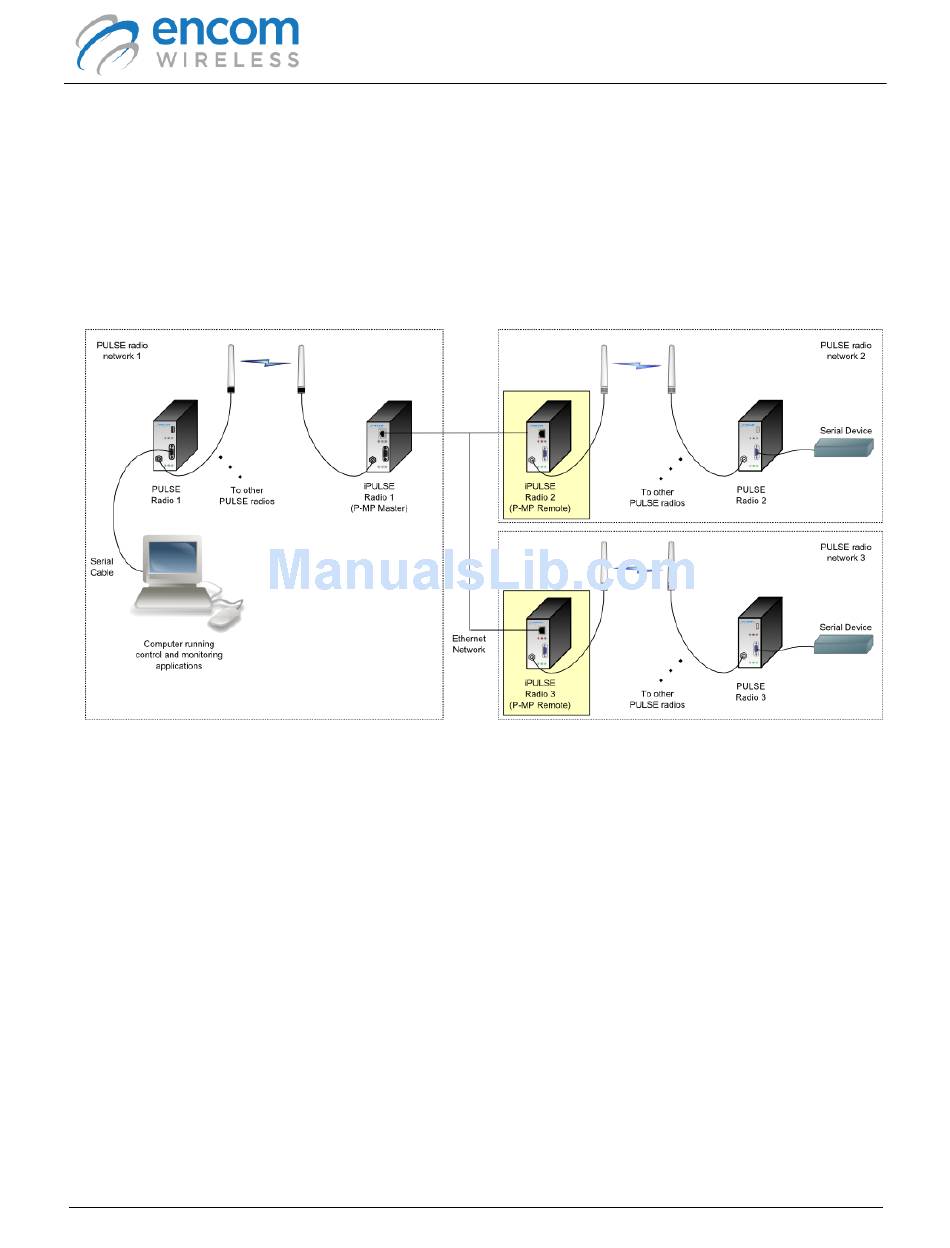

The following diagram shows a typical context in which iPULSE radios configured as a P-MP
Remotes are used.
In this scenario, data coming from the serial devices in PULSE radio networks 2 and 3 are sent to
iPULSE radio 2 and 3 respectively. iPULSE radio 2 and 3 are configured to relay this data,
encapsulated in UDP packets, to iPULSE radio 1, that is configured as the P-MP Master. iPULSE
radio 1 in turn relays the serial data to PULSE radio network 1, where it eventually reaches the
application running on the computer.
