Signal Strength Meter

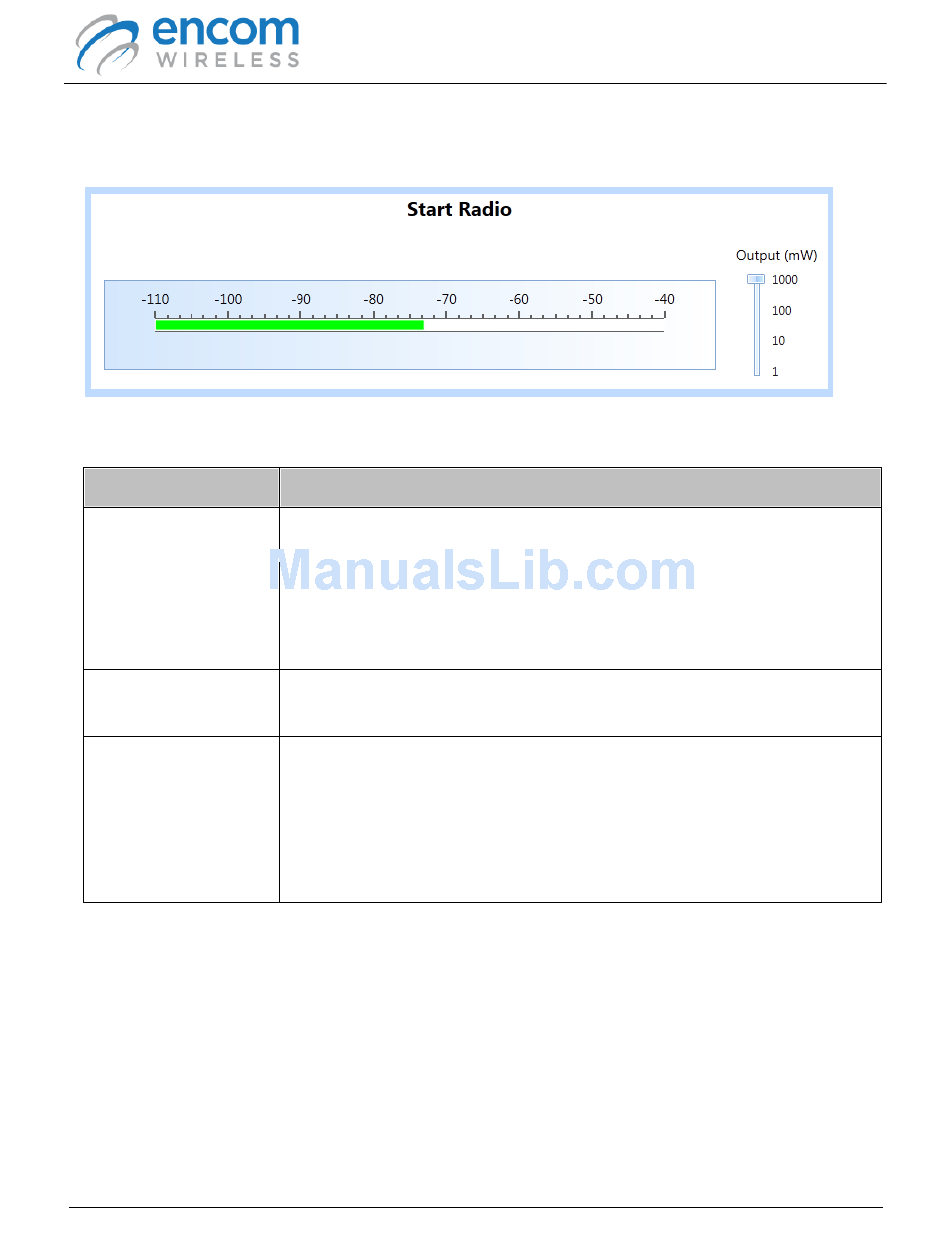

The following screen shot shows an individual signal strength meter.
The following table describes the components of the signal strength meter.
Item Name
Title
Meter
Output (mW)
For ENCOM PULSE Link Version 2.2.6
Description
Indicates the radio that is being monitored.
The Start Radio meter will show the signal strength of the signal received
from the end radio.
The End Radio meter will show the signal strength of the signal received
from the start radio.
The meter shows the current received signal strength in dBm (the power
ratio in decibels referenced to one milliwatt).
Shows the current power level setting of the associated radio.
You can use the slider to change the power level of the radio. A change in
the start radio's power level will affect the received signal strength of the
end radio, and vice versa.
For best results, you should adjust the output power levels so that both of
the radios are showing a signal strength value between -40 and -90 dBm.
