Chapter 4: PULSE Radio Network Example

This topic describes a typical scenario where PULSE radios are used to extend the reach of a
master controller.

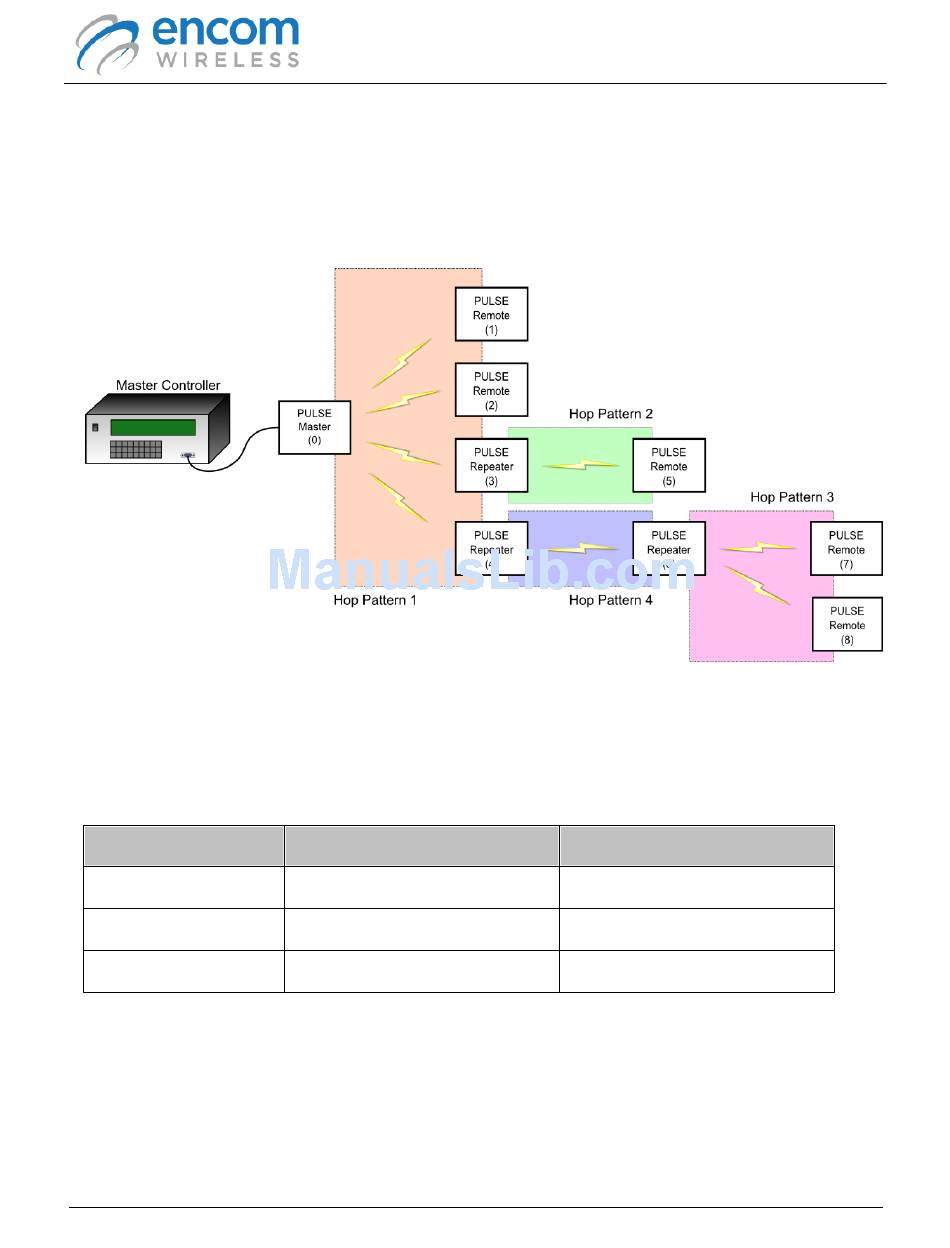

The following diagram shows the radios found in the network:
For the sake of simplicity, only the master controller connected to the PULSE Master radio is
shown. It is assumed that local controllers are connected to the remaining radios in the system.
In order for the radios to be able to communicate with each other, they following configuration
parameters must be set to the same value for all radios:
Settings Tab Name
Wireless
Wireless
Wireless
For ENCOM PULSE Link Version 2.2.6
Setting Name
Repeater in system
Network address
Security key
Page 144
ENCOM PULSE Link
USER MANUAL
Value (for this example)
Yes
0
0
© 2012-2015 Encom Wireless Data Solutions Inc.
