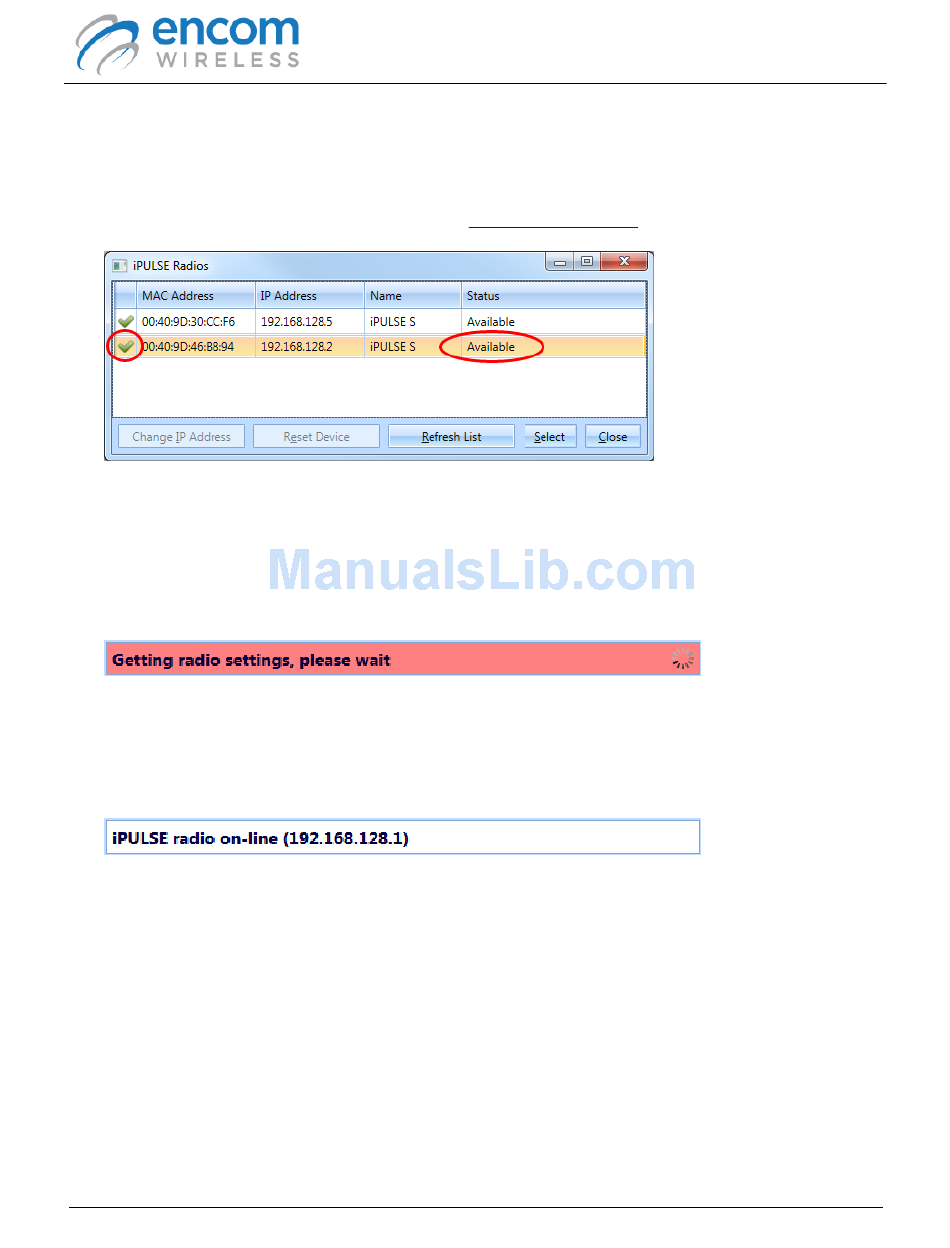

Viewing or Changing the Settings of an iPULSE Radio

To view or change the settings of an ENCOM iPULSE radio:
1. Select a radio that is currently available in the
2. Click the Select button. Alternatively, you can double-click the left mouse button on the item in the
radio list.
3. The status indicator will briefly display a message while the radio's configuration settings are
retrieved.
Note that when the status bar is red, you should not disconnect the Ethernet cable from the radio,
nor should you remove power from the radio.
4. After the radio's configuration settings have been retrieved, the radio is shown as being on-line.
For ENCOM PULSE Link Version 2.2.6
iPULSE Radios form.
