Encom iPULSE R User Manual page 19

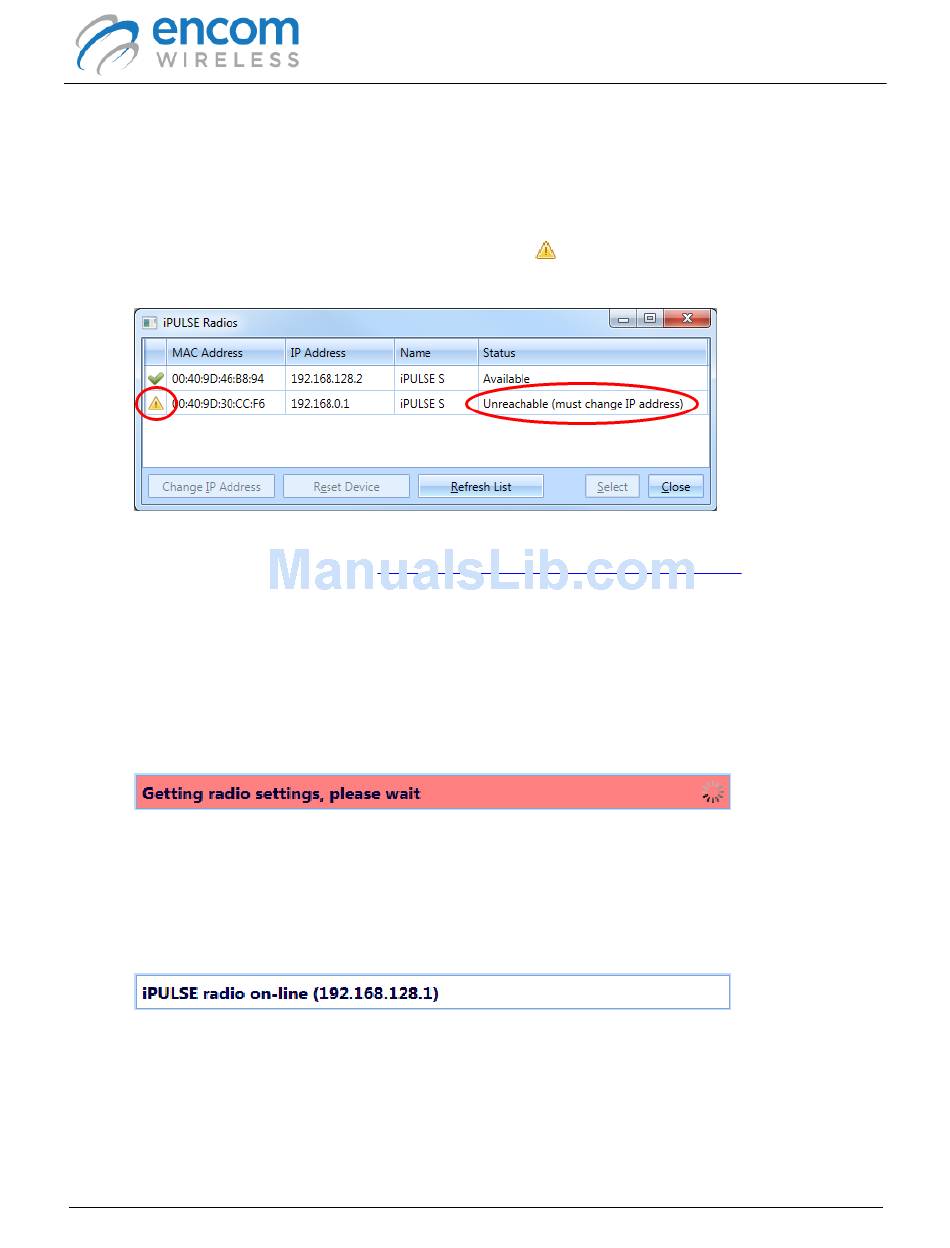

and list all iPULSE radios that are connected to your local network. It will NOT detect an
iPULSE radio if there is a router between the radio and the computer running the PULSE Link
application.
6. If you have just received your iPULSE radio from ENCOM, its default IP address may not be
compatible with your local network. In this case, a
MAC Address, and the Status column indicates that you must change the radio's IP address.
In order to connect to a radio that is unreachable, you will have to change it's IP address to a
compatible value. Refer to the
information.
7. To connect to a radio, select the radio item in the radio list, and then click the Select button.
Alternatively, you can double-click the left mouse button on the radio item in the radio list.
8. The status indicator will briefly display a message while the radio's configuration settings are
retrieved.
Note that when the status bar is red, you should not disconnect the Ethernet cable from the
radio, nor should you remove power from the radio.
9. After the radio's configuration settings have been retrieved, the radio is shown as being on-
line.
For ENCOM PULSE Link Version 2.2.6
Changing the IP Address of an iPULSE Radio
Page 19
ENCOM PULSE Link
indicator is shown at the left of radio's
© 2012-2015 Encom Wireless Data Solutions Inc.
USER MANUAL
topic for more
