Spectrum Scan Graph

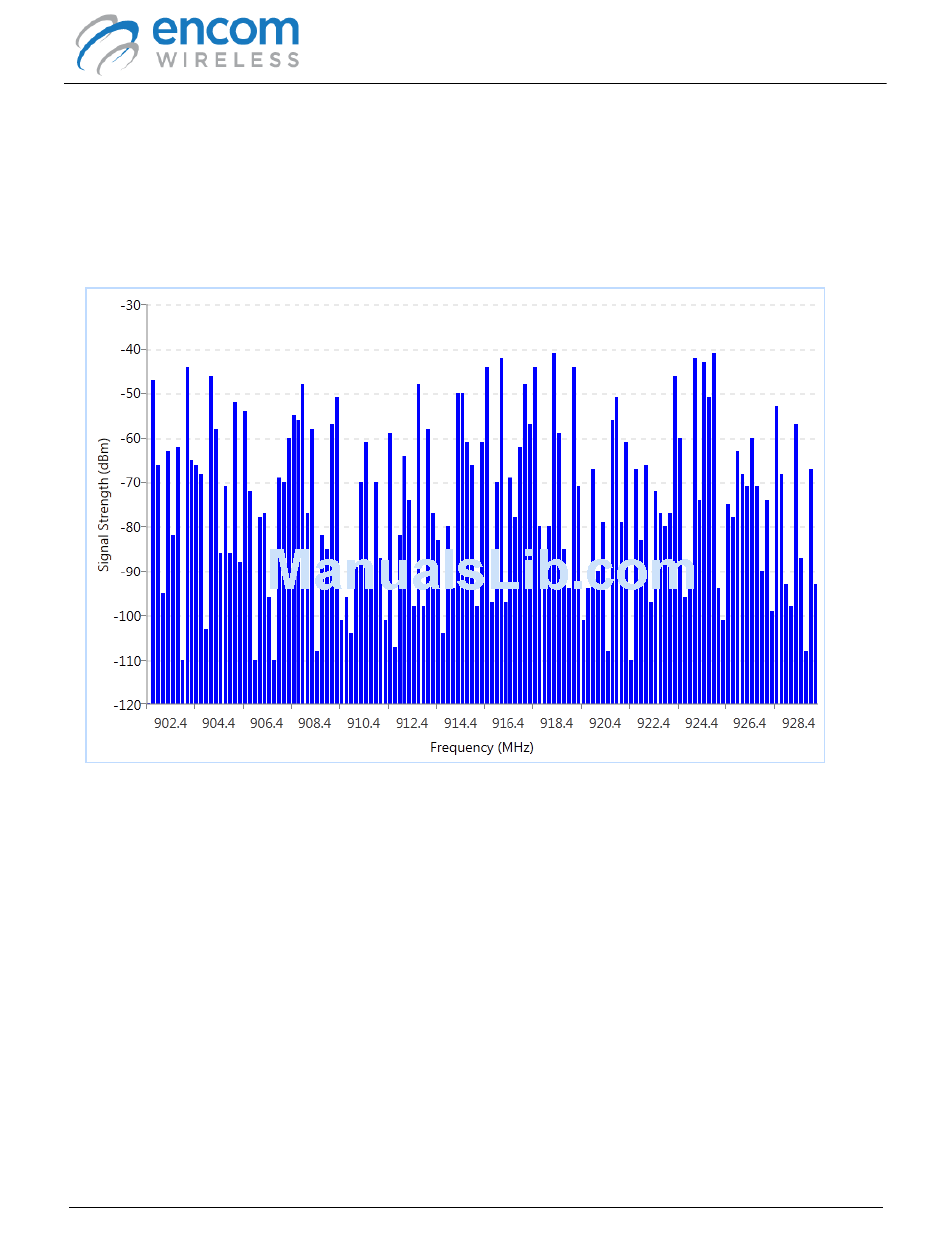

The Spectrum Scan graph shows the result of the spectrum scan carried out by the radio.
When a spectrum scan session is active, the radio is continuously polled for information regarding
the 900 MHz traffic that is in the vicinity of the radio. Blue bars in the graph are periodically updated
to show the current traffic encountered by the radio.
