17 Additional Information

17.1 Column Printing

With this direct print module several columns can be printed, i.e. the
information of one column can be printed several times (depending on
its width) on a layout. Caused by this the use of the complete print
width is possible and the generating time is enormously reduced.
For example 4 columns with a width of 25 mm or 2 columns with a
width of 50 mm can be printed onto a layout with a width of 100 mm.

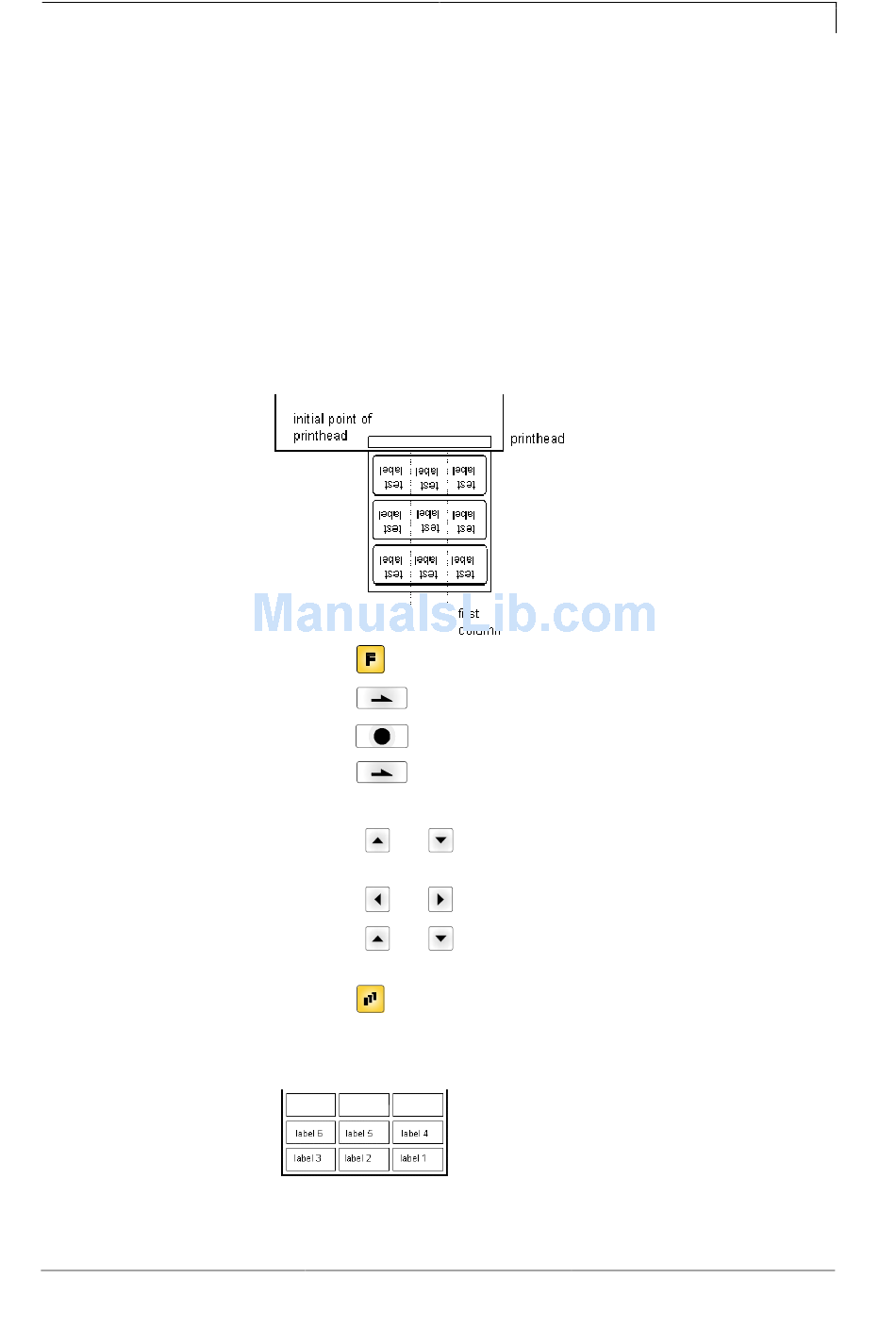

Please note that the first layout is always the one with the largest x
coordinate, i.e. it has the largest distance to the printhead.
Press key to access the function menu.
Press key as long as you arrive the menu Label layout.
Press key to confirm the selection.
Press key as long as to the menu item Width/Columns.
Press keys and
of one column, e.g. 20.0 mm.
Press keys and
Press keys and
columns with a layout width of 20.0 mm.
Press key to start the print with input of number of layouts and
number of lines. The number of layouts corresponds to the number of
layouts that should be printed.
e.g. Columns: 3, Items: 4
The first four layouts were printed but not layouts 5 and 6.
