Dynacode IP Series
Maintenance
chedule
08.16

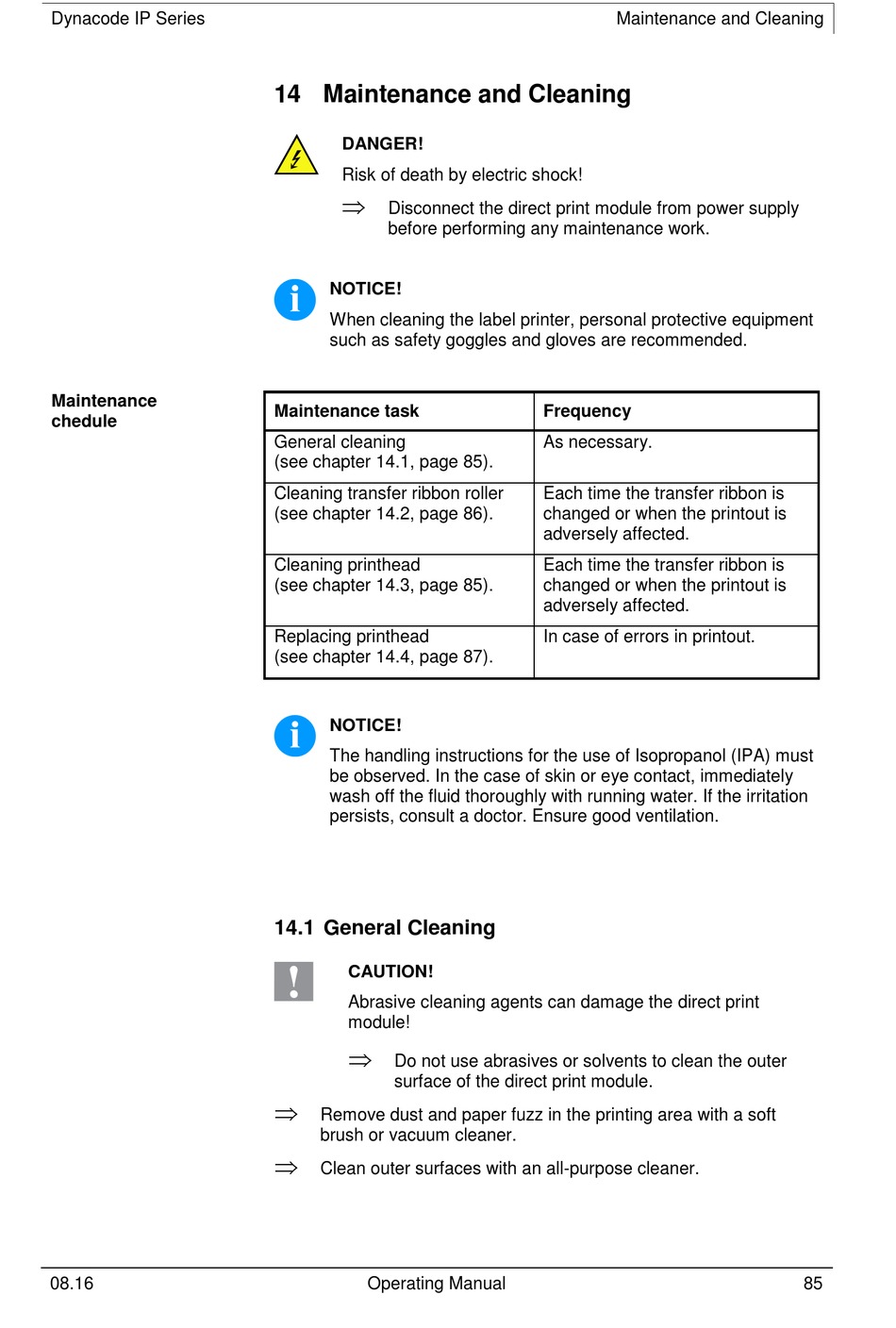

14 Maintenance and Cleaning

DANGER!
Risk of death by electric shock!

Disconnect the direct print module from power supply
before performing any maintenance work.
NOTICE!
When cleaning the label printer, personal protective equipment
such as safety goggles and gloves are recommended.
Maintenance task

General cleaning

(see chapter 14.1, page 85).
Cleaning transfer ribbon roller
(see chapter 14.2, page 86).
Cleaning printhead
(see chapter 14.3, page 85).
Replacing printhead
(see chapter 14.4, page 87).
NOTICE!
The handling instructions for the use of Isopropanol (IPA) must
be observed. In the case of skin or eye contact, immediately
wash off the fluid thoroughly with running water. If the irritation
persists, consult a doctor. Ensure good ventilation.
14.1 General Cleaning
CAUTION!
Abrasive cleaning agents can damage the direct print
module!

Do not use abrasives or solvents to clean the outer
surface of the direct print module.

Remove dust and paper fuzz in the printing area with a soft
brush or vacuum cleaner.

Clean outer surfaces with an all-purpose cleaner.
Operating Manual
Maintenance and Cleaning
Frequency
As necessary.
Each time the transfer ribbon is
changed or when the printout is
adversely affected.
Each time the transfer ribbon is
changed or when the printout is
adversely affected.
In case of errors in printout.
85
